cyberpower systems

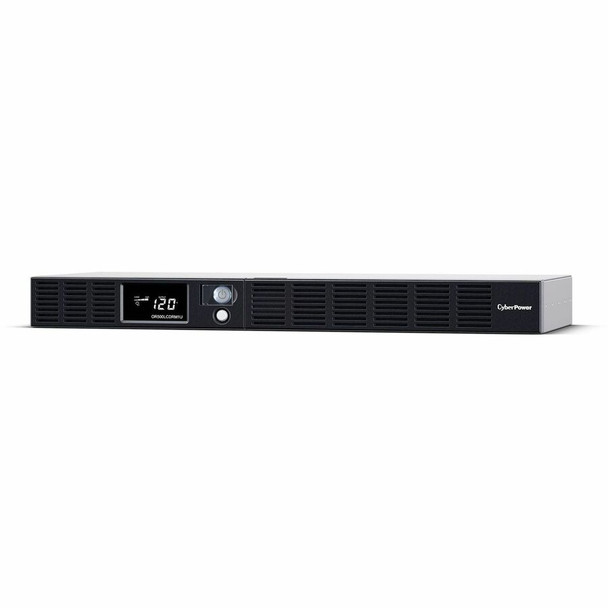

CyberPower OR500LCDRM1U Smart App LCD UPS Systems (OR500LCDRM1U)
(No reviews yet)
Write a Review
- SKU:
- 18259418
- MPN:
- or500lcdrm1u
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/11/2025 05:09:00 AM PST
- Stock Update:
- 12/11/2025 05:09:00 AM PST
Description
This item is brand-new, factory sealed.
The Office Rackmount LCD Series UPS is designed to protect home-office servers, PCs, graphic workstations, and commercial electronics. The Intelligent Crystal-Blue LCD diagnostic panel gives administrators immediate, real-time information of the UPS vitals. LCD diagnostics include Input/Output Voltage, Battery Capacity, Estimated Runtime, Load Level, On Battery, Overload, and Silent Mode. The OR500LCDRM1U has 6 outlets, USB/Serial communication ports, and RJ11/RJ45 network protection. Automatic Voltage Regulation (AVR) ensures that all your connected equipment is receiving clean power and stabilizes the voltage to a nominal 120VAC. PowerPanel Plus (TM) Smart-App Management software (included) automatically saves and closes open files and shutdowns the PC in an intelligent and orderly manner. CyberPower also carries a 3-year unlimited warranty, has a professional award-winning Technical Support, and offers a lifetime Connected Equipment Guarantee of $35,000.Package Contents:
- Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
- Rack Ears (2)
- User Manual
- Power Management Software
- Warranty Card
- Serial Cable
- Phone Cable
- USB Cable
Features
Package Contents:
Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 6 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB0670X2 Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3 min Runtime at Half Load : 12 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 23.5 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 9.25 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 235 (mm) Weight (kg) : 8.16 Weight (lb) : 18 Shipping Dimensions - (WxHxD) (cm) : 31.75 x 14.61 x 52.07 (cm) Shipping - Dimensions (WxHxD, in) : 12.5 x 5.75 x 20.5 (in) Shipping - Dimensions (WxHxD, mm) : 317.5 x 146.05 x 520.7 (mm) Shipping - Weight (kg) : 9.34 Shipping - Weight (lb) : 20.6 Adjustable Voltage Range : 88 - 144 VAC Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 90 VAC - 140 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 10% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 4 Outlets - Surge-Only Protected : 2 Outlets - Total : 6 Outlet Type COMPUTED : 6 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 8 ms USB Charge Port : No VA : 500 VA Watts : 300 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1150 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1150 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Dry Contact SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1B Product Warranty : 3 Year Limited Warranty
Yes
PowerPanel® Business
Yes
Restriction of Hazardous Substances (RoHS)
Philippines
- Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
- Rack Ears (2)
- User Manual
- Power Management Software
- Warranty Card
- Serial Cable
- Phone Cable
- USB Cable
Certifications & Standards:
- FCC Class B
- cUL 107.1
- UL 1778
Additional Information:
Environmentally Friendly:
Yes
Software Included:
PowerPanel® Business
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Philippines
Specs
| Power Description | |
| Input Frequency | 63 Hz |
| Surge Energy Rating | 1150 J |
| Input Voltage Range | 90 V AC - 140 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 500 VA |
| Waveform Type | Simulated Sine Wave |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 18 lb |
| Product Color | Black |
| Height | 1.8" |
| Color Family | Black |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 9.3" |
| Warranty | |
| Directly Connected Equipment Guarantee | $300000 Lifetime |
| Additional Warranty Information | <p>CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.</p> |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <p><b>On Unit:</b></p><ul><li>Power On</li><li>Wiring Fault</li></ul><p><b>LCD Panel:</b></p><ul><li>Input Voltage</li><li>Output Voltage</li><li>Battery Capacity</li><li>Load Level</li><li>Runtime</li><li>On Battery</li><li>Overload</li><li>Silent Mode</li></ul> |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3 Minute |
| Number of Batteries | 2 |
| Battery Capacity | 7000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Backup/Run Time (Half Load) | 12 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Battery Characteristics | Maintenance-free |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | OR500LCDRM1U Smart App LCD UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR500LCDRM1U |
| Product Model | OR500LCDRM1U |
| Product Series | Smart App LCD UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Number of Surge-only Outlets | 2 |
| Number of Battery & Surge Outlets | 4 |
| Transfer Time | 8 ms |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Dataline Protection |
|
| Protection Type |
|
| Application/Usage |
|
| AVR | Yes |
| Management | |
| Alarm |
|
| Environmental Conditions | |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 60" |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
