CyberPower PDU20BVHVT24F 200 - 230 VAC 20A Basic PDU (PDU20BVHVT24F)
(No reviews yet)
Write a Review
- SKU:
- 18288462
- MPN:
- pdu20bvhvt24f
- Availability:
- Out of stock
- Stock Update:
- 11/14/2024 03:36:14 AM PST
- Stock Update:
- 11/14/2024 03:36:14 AM PST
Description
This item is brand-new, factory sealed.

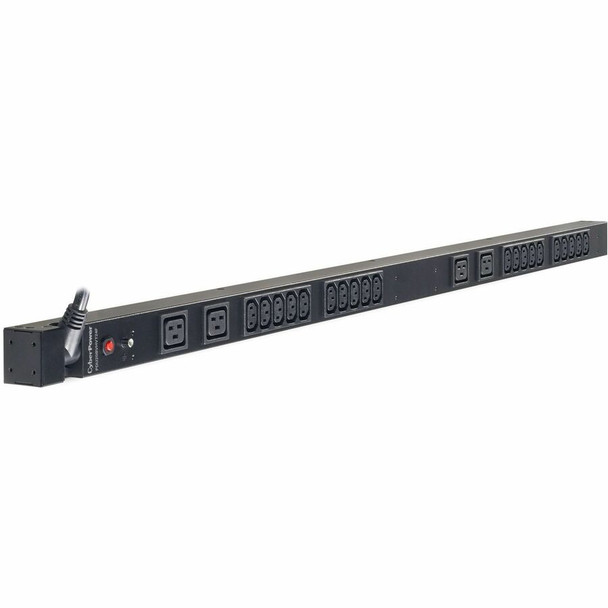

The CyberPower 24-outlet (24 Front) 0U vertical rack mount basic power distribution unit (PDU20BVHVT24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Features
Additional Information:
Physical Dimensions - (WxHxD) (cm) : 4.45 x 121.92 x 3.81 (cm) Physical Dimensions - (WxHxD) (in) : 1.75 x 48 x 1.5 (in) Physical Dimensions - (WxHxD) (mm) : 44 x 1219 x 38 (mm) Weight (kg) : 3.31 Weight (lb) : 7.3 Shipping Dimensions - (WxHxD) (cm) : 133.35 x 7.62 x 15.24 (cm) Shipping - Dimensions (WxHxD, in) : 52.5 x 3.0 x 6.0 (in) Shipping - Dimensions (WxHxD, mm) : 1333.5 x 76.2 x 152.4 (mm) Shipping - Weight (kg) : 5.44 Shipping - Weight (lb) : 12.0 Cord Length : 10 ft (3.0 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-20P Maximum Input Current : 20A Plug Style : Straight (Twist Lock) Nominal Output Voltage : 200 - 230 VAC Outlets - Front : 24 Outlets - Rear : 0 Outlets - Total : 24 Outlet Type COMPUTED : 4 - IEC-320 C19 Overload Protection : 16A USB Charge Port : No Adjustable Mounting Brackets : 3 sets (L-Short, L-Long, Flat) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1 certified by ETL Product Warranty : Limited Lifetime Warranty
Yes
No
Restriction of Hazardous Substances (RoHS)
China
Environmentally Friendly:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 7.30 lb |
| Length | 1.5" |
| Mount Type | Rack-mountable |
| Height | 48" |
| Mounting Orientation | Vertical |
| Width | 1.8" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU20BVHVT24F, a 24-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 20 IEC-320 C13, 4 IEC-320 C19 receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVT24F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. |
| Product Type | PDU |
| Product Name | PDU20BVHVT24F 200 - 230 VAC 20A Basic |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20BVHVT24F |
| Product Model | PDU20BVHVT24F |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Plug/Connector Type | NEMA L6-20P |
| PDU Type | Basic |
| Protection Type | Overload Protection |
