Cyberpower Pdu30mhvt19at Metered Ats Pdu 200-240v 30a 2u 19-outlets [2] L6-30p - 16 X Iec 60320 C13, 2 X Iec 60320 C19, 1 X Nema L6-30r - 2uhorizontal Rackmount (pdu30mhvt19at)
(No reviews yet)
Write a Review
- SKU:
- 18152602
- MPN:
- pdu30mhvt19at
- Availability:
- Out of stock
- Stock Update:
- 11/17/2023 03:54:35 AM PST
- Stock Update:
- 11/17/2023 03:54:35 AM PST
Description
This item is brand-new, factory sealed.

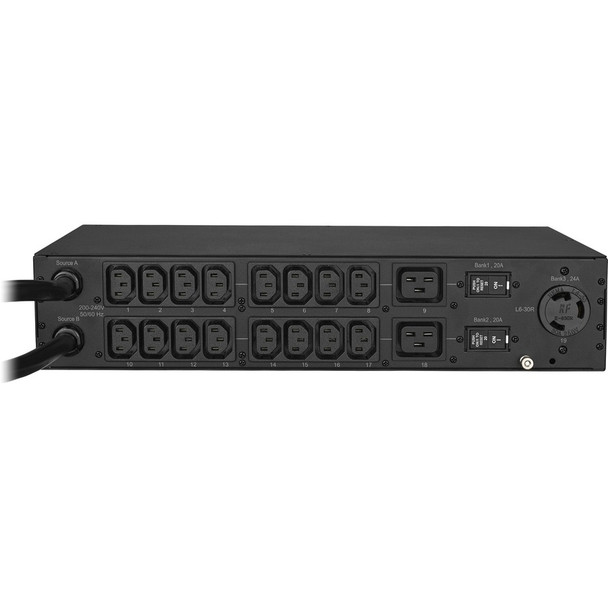

The CyberPower PDU30MHVT19AT, a 19-outlet 2U rack mount metered auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 19 receptacles(16-C13/2-C19 & 1-L6-30R) from redundant L6-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.
The PDU30MHVT19AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Package Contents:
- PDU30MHVT19AT Metered ATS PDU 200-240V 30A 2U 19-Outlets (2) L6-30P
- Mounting Brackets (1 Set)
- Cord Retention Tray
- Cord Organizers
- User Manual
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- PDU30MHVT19AT 19-Outlets PDU
- 2 x Mounting Brackets
- 24 x (M4x8) Bracket Mounting Screws
- 6 x (M5x12) Rack Mounting Screws
- 6 x Washers
- 2 Cord Retention Tray
- 4 x (M3x4) Cord Retention Tray Mounting Screws
- 30 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- 4 x IEC Socket Power Cord Stand
- 29 x (M3x4) Screws
- 27 x Power Cord Retention Cable Clip
- 27 x Cable Ties
Certifications & Standards:
- UL60950-1 Certified by ETL (USA)
- CSA C22.2(Canada)
- FCC Class A
Environmentally Friendly:
Yes
Compatibility:
- Data Centers
- Servers
- Network Devices
- Telecom Equipment
- PR5000LCDRTXL5U
- PR6000LCDRTXL5U
- OL6000RT3U
- OL8000RT3U
- OL10000RT3U
- OL6000RT3UTF
- OL8000RT3UTF
- OL10000RT3UTF
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Circuit Breaker | Yes |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 15.43 lb |
| Cord Length | 10 ft |
| Mount Type | Rack-mountable |
| Number of Cord/Cable | 2 |
| Height | 3.5" |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 2U |
| Depth | 9.3" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU30MHVT19AT, a 19-outlet (rear), 2U rackmount metered automatic transfer switch (ATS) power distribution unit (PDU), provides 200-240V 30A output. The PDU distributes unfiltered electrical pass-through from redundant NEMA L6-30P plugs to 19 receptacles: 1 NEMA L6-30R, 18 IEC-320 (16) C13 / (2) C19 receptacles. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, the PDU30MHVT19AT has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically. The PDU30MHVT19AT comes with a cord retention tray and is UL and CSA certified by ETL. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product. Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit. Automatic Transfer Switch Dual power cords (A & B) provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources to ensure continuous access. Users select the preferred source as the primary input. CyberPower Smart App Online and Sinewave series UPS are highly recommended for use as the power source. Note: Only sine wave AC power sources are compatible with this ATS PDU. Simulated sine wave AC power sources are NOT compatible. LCD Screen Provides real-time meter status for current (amperes), input and output voltages, power consumptions (kilowatts), and hardware/firmware versions. Upgradeable Hardware & LCD Firmware Are updatable to the latest versions by using the serial communication port and included cable. Serial Communication Port & Cable Used to update/upgrade the hardware and LCD firmware. SNMP/HTTP Card Slot Accepts an RMCARD205 (sold separately), providing remote monitoring, reporting, and event notifications, via Email, SMS Text, or SNMP Trap. Protocol Support With installation of an RMCARD205 (sold separately), the metered ATS PDU provides protocol support for PowerPanel Business Edition, HTTP, TCP/IP, UDP, DHCP, and SNMP including SNMPv3, IPv4, IPv6, NTP, SMTP protocols. Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices. Rackmounting Brackets Allow for 2U horizontal rack installation. Cord Retention Tray Secures power cords, keeping them organized and accessible. Helps cords stay plugged in. Three-Year Limited Warranty Covers the PDU for three years and connected equipment for as long as you own the product. See warranty for details. |
| Product Type | PDU |
| Product Name | PDU30MHVT19AT 19-Outlets PDU |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30MHVT19AT |
| Product Model | PDU30MHVT19AT |
| Product Series | Metered ATS PDU |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Metered |
| Protection Type |
|
| Management | |
| Management | <ul><li>HTTP</li><li>TCP/IP</li><li>UDP</li><li>DHCP</li><li>SNMP</li><li>SNMPv3</li><li>IPv4</li><li>IPv6</li><li>NTP</li><li>SMTP</li></ul> |
