Cyberpower Pdu30swhvt19atnet Switched Ats Pdu 200-240v 30a 2u 19-outlets [2] L6-30p - 16 X Iec 60320 C13, 2 X Iec 60320 C19, 1 X Nema L6-30r - 1urack-mountable (pdu30swhvt19atnet)
(No reviews yet)
Write a Review
- SKU:
- 18152937
- MPN:
- pdu30swhvt19atnet
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.

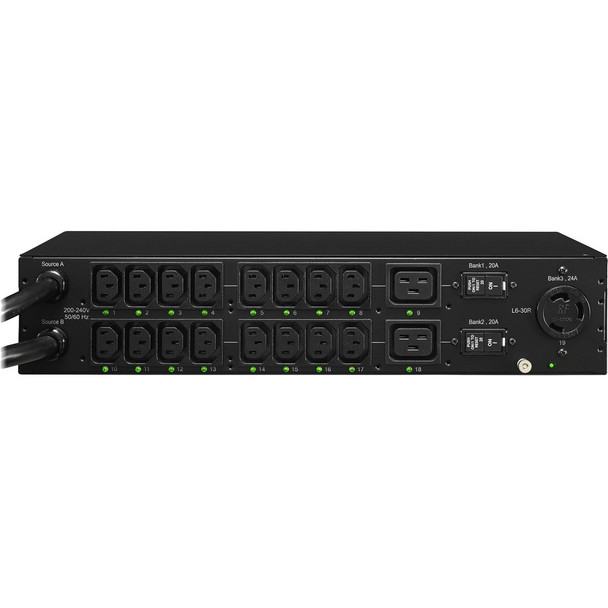

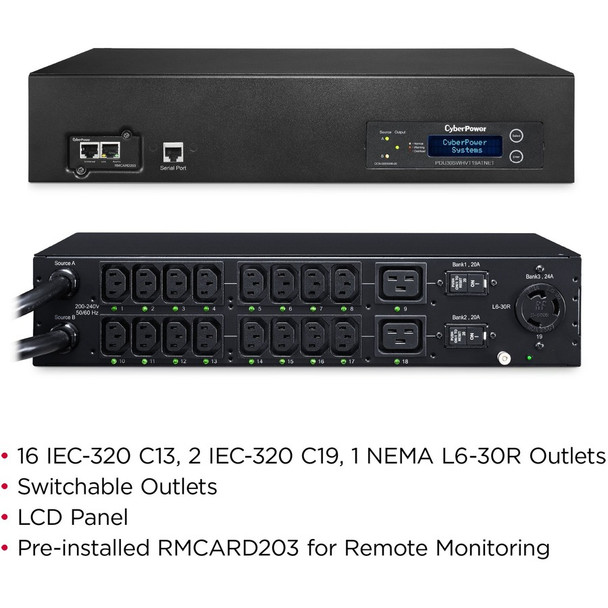

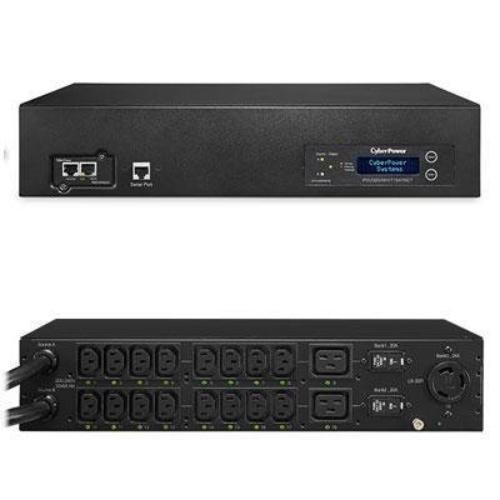

The CyberPower PDU30SWHVT19ATNET, 19-outlet 2U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 19 receptacles(16-C13/2-C19 & 1-L6-30R) from redundant L6-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.
The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.
The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Package Contents:
- PDU30SWHVT19ATNET Switched ATS PDU 200-240V 30A 2U 19-Outlets (2) L6-30P
- RMCARD203 SNMP Card
- 1 x Mounting Brackets Set
- Cord Retention Tray
- Cord Organizers
- User Manual
Features
Package Contents:
Yes
No
Restriction of Hazardous Substances (RoHS)
China
- PDU30SWHVT19ATNET Switched ATS PDU 200-240V 30A 2U 19-Outlets (2) L6-30P
- 2 x Mounting Brackets
- 24 x M4x8 Bracket Mounting Screws
- 6 x M5x12 Rack Mounting Screws
- 6 x Washers
- 2 x Cord Retention Trays
- 4 x M3x4 Cord Retention Tray Mounting Screws
- 30 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- Jumper
- User Manual
- Registration Card
- CD
- 4 x IEC Socket Power Cord Stands
- 29 x M3x4 Screws
- 27 x Power Cord Retention Cable Clip
- 27 x Cable Ties
Certifications & Standards:
- UL60950-1 Certified by ETL (USA)
- CSA C22.2(Canada)
- FCC Class A
Additional Information:
- Phase: Single Phase
- Frequency: 50/60 Hz
- LCD Displays: Amperage, Voltage, KW, Network Information, and Hardware/LCD Firmware
- LED Indicators: Input, Output Load, Tx/Rx, LINK, Outlets
- Upgradeable Firmware: Yes - SNMP, HW, and LCD
Environmentally Friendly:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 16.76 lb |
| Cord Length | 10 ft |
| Mount Type | Rack-mountable |

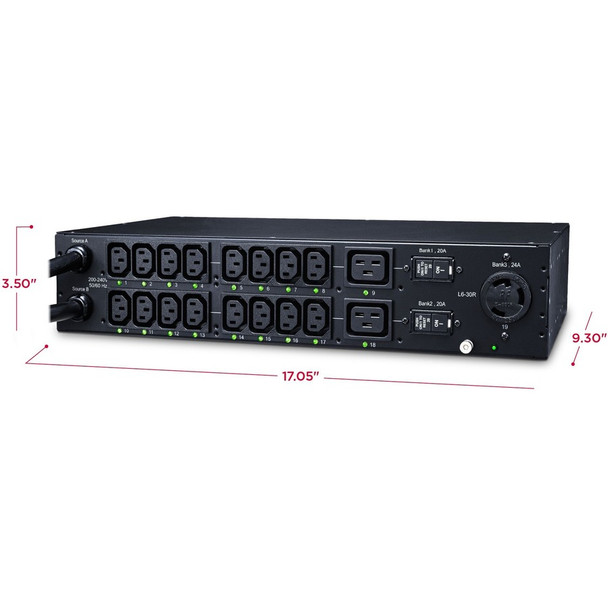

| Height | 3.5" |
| Width | 17.1" |
| Rack Height | 2U |
| Depth | 9.3" |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU30SWHVT19ATNET, a 19-outlet (rear), 2U rackmount switched automatic transfer switch (ATS) power distribution unit (PDU), provides 200-240V 30A output. It distributes unfiltered electrical pass-through to to 19 receptacles--16 IEC-320 C13, 2 IEC-320 C19, and 1 NEMA L6-30R receptacles-from redundant NEMA L6-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU30SWHVT19ATNET includes a SNMP/HTTP card (RMCARD203). With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the PDU. The switched outlet receptacles can be managed individually or collectively. The LCD panel provides local monitoring of the PDU and on/off control for the outlets. It can also be used to measure the electrical current (displayed in amperes) used by connected equipment. The LCD panel also shows input and output voltages, active power consumption levels (displayed in kilowatts), and hardware and firmware versions. Designed for datacenters and other demanding electrical applications, the PDU30SWHVT19ATNET has rugged, industrial-grade metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL and CSA certified by ETL, and Class A FCC-certified. A three-year warranty covers the PDU and connected equipment for as long as you own the product. Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit. Outlet Switching Output receptacles can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs, including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. Automatic Transfer Switch Dual power cords (A & B) provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources to ensure continuous access. Users select the preferred source as the primary input. CyberPower Smart App Online and Sinewave series UPS are highly recommended for use as the power source. LCD Panel Provides real-time meter status for current (amperes), input and output voltages, power consumptions (kilowatts), and hardware/firmware versions. Upgradeable Hardware & LCD Firmware Are updatable to the latest versions by using the serial communication port and included cable. Serial Communication Port & Cable Used to update/upgrade the hardware and LCD firmware. Environmental Sensor Option Supports optional environment sensor (ENVIROSENSOR). SNMP/HTTP Card Included and installed, RMCARD203 provides outlet control, remote monitoring, reporting, and event notifications, via Email, SMS Text, or SNMP Trap. RMCARD203 firmware is upgradeable with FTP process. Protocol Support This Switched ATS PDU provides protocol support for PowerPanel Business Edition, HTTP, TCP/IP, UDP, DHCP, and SNMP including SNMPv3, and IPv4, IPv6, NTP, SMTP protocols. Administrative Rights Administrator and user rights can be established to provide IT personnel with access to the Management Console via a web browser to monitor and/or manage the PDU settings. |
| Product Type | PDU |
| Product Name | PDU30SWHVT19ATNET Switched ATS PDU 200-240V 30A 2U 19-Outlets (2) L6-30P |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30SWHVT19ATNET |
| Product Model | PDU30SWHVT19ATNET |
| Product Series | Switched ATS PDU |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Switched Auto Transfer Switch |
| Management | |
| Management | <ul> <li>HTTP</li> <li>TCP/IP</li> <li>UDP</li> <li>DHCP</li> <li>SNMP</li> <li>SNMPv3</li> <li>IPv4</li> <li>IPv6</li> <li>NTP</li> <li>SMTP</li> </ul> |
