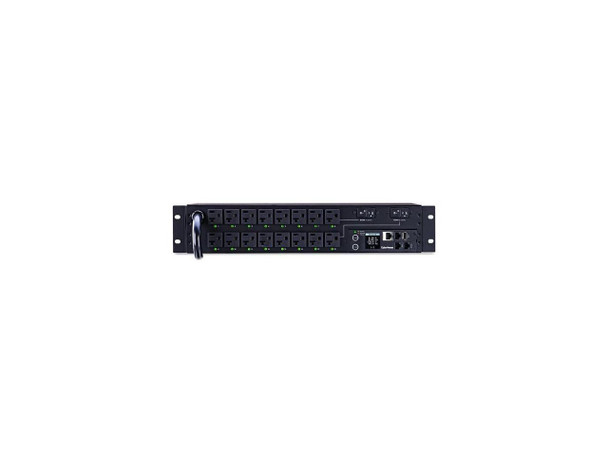

CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU (PDU41003)
(No reviews yet)
Write a Review
- SKU:
- 18157857
- MPN:
- pdu41003
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/18/2026 04:08:50 AM PST
- Stock Update:
- 03/18/2026 04:08:50 AM PST
Description
This item is brand-new, factory sealed.
The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
The PDU41003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console
A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
Remote and Local Monitoring
Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.
Power Control Display
Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal HousingProtects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Package Contents:
- PDU41003 PDU
- 2 x Mounting Brackets
- 12 x M4x8 Bracket Mounting Screws
- 6 x M5x12 Rack Mounting Screws and Washers
- 2 x Cord Retention Trays
- 12 x M3x6 Cord Retention Tray Screws
- 24 x Cable Ties, RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- Download Card
Features
UL Listed:
Yes
Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 112 (mm) Weight (kg) : 3.31 Weight (lb) : 7.3 Shipping Dimensions - (WxHxD) (cm) : 49.85 x 14.61 x 24.77 (cm) Shipping - Dimensions (WxHxD, in) : 19.625 x 5.75 x 9.75 (in) Shipping - Dimensions (WxHxD, mm) : 498.48 x 146.05 x 247.65 (mm) Shipping - Weight (kg) : 6.17 Shipping - Weight (lb) : 13.6 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Phase : Single Phase Plug Style : Straight Controllable Outlets : 16 Meter Readout : Power Control Display Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 16 Outlets - # of Banks : 2 Outlets - Rear : 0 Outlets - Total : 16 Outlet Type COMPUTED : 16 - NEMA 5-20R Overload Protection : 20A x 2 Overload Protection (Each Bank) : 20A USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Tx/Rx SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 2U Style : Horizontal Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Yes
No
Restriction of Hazardous Substances (RoHS)
China
Yes
Certifications & Standards:
- UL62368
- FCC Class A
- ICES-003: Issue 7
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
No
Application/Usage:
Network Device
Server
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 7.30 lb |
| Cord Length | 12 ft |
| Product Color | Black |
| Mount Type |
|
| Height | 3.5" |
| Color Family | Black |
| Mounting Orientation | Horizontal/Vertical |
| Width | 17.1" |
| Rack Height | 2U |
| Depth | 4.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display. |
| Product Type | PDU |
| Product Name | PDU41003 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU41003 |
| Product Model | PDU41003 |
| Product Series | Switched PDU |
| Technical Information | |
| Design | Non-Modular |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Protection Type | Overload Protection |
| Features |
|
| Management | |
| Remote Outlet Switching | Yes |
| Management | <b>Protocols:</b><ul><li>IPv4</li><li>TCP</li><li>IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP<li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS<li>Syslog</li><li>CLI</li><li>Windows AD</li><li>SNMP</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 149°F (65°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
