CyberPower PDU41023 Single Phase 100 - 120 VAC 30A Switched PDU
(No reviews yet)
Write a Review
- SKU:
- 21190681
- MPN:
- pdu41023
- Availability:
- Out of stock
- Stock Update:
- 11/12/2025 04:35:05 PM PST
- Stock Update:
- 11/12/2025 04:35:05 PM PST
Description
This item is brand-new, factory sealed.
The CyberPower PDU41023, a 1U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
Features
UL Listed:
Yes

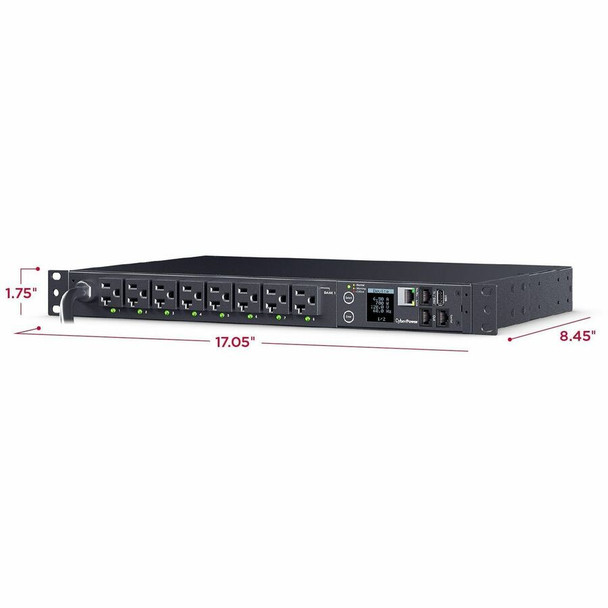

Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 4.49 Weight (lb) : 9.9 Shipping Dimensions - (WxHxD) (cm) : 55.25 x 12.7 x 40.64 (cm) Shipping - Dimensions (WxHxD, in) : 21.75 x 5 x 16 (in) Shipping - Dimensions (WxHxD, mm) : 552.45 x 127.0 x 406.4 (mm) Shipping - Weight (kg) : 6.71 Shipping - Weight (lb) : 14.8 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Phase : Single Phase Plug Style : Straight Controllable Outlets : 16 Meter Readout : Power Control Display Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 8 Outlets - # of Banks : 2 Outlets - Rear : 8 Outlets - Total : 16 Outlet Type COMPUTED : 16 - NEMA 5-20R Overload Protection : 20A x 2 Overload Protection (Each Bank) : 20A USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Tx/Rx SNMP / HTTP Remote Monitoring : IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog, RADIUS, LDAP, LDAPS, Windows AD Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Horizontal Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Restriction of Hazardous Substances (RoHS)
Yes
Certifications & Standards:
- UL62368
- FCC Class A
Additional Information:
Application/Usage:
Data Center
Network Closet
VoIP Phone System
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 9.90 lb |
| Cord Length | 12 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 8.5" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU41023, a 1U rackmount, switched power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display. |
| Product Type | PDU |
| Product Name | PDU41023 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU41023 |
| Product Model | PDU41023 |
| Product Series | Switched PDU |
| Technical Information | |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Protection Type | Overload Protection |
| Features |
|
| Management | |
| Remote Outlet Switching | Yes |
| Management | <ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>IPv4/v6</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SNMPv1/v3</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>HTTP/HTTPs</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>TCP/IP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>UDP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>DHCP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NTP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>DNS</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SMTP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SSH</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SSL</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>TLS</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Telnet</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>FTP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Syslog</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>RADIUS</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>LDAP</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>LDAPS</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Windows AD</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 149°F (65°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
