CyberPower
CyberPower PDU41116 Single Phase 100 - 120 VAC 15A Switched PDU
(No reviews yet)
Write a Review
- SKU:
- 20784467
- MPN:
- pdu41116
- Availability:
- Usually ships the same or next business day. In stock at our IL, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/15/2026 11:56:34 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $829.78 each 829.78 |
- Stock Update:
- 03/15/2026 11:56:34 PM PST
Description
This item is brand-new, factory sealed.

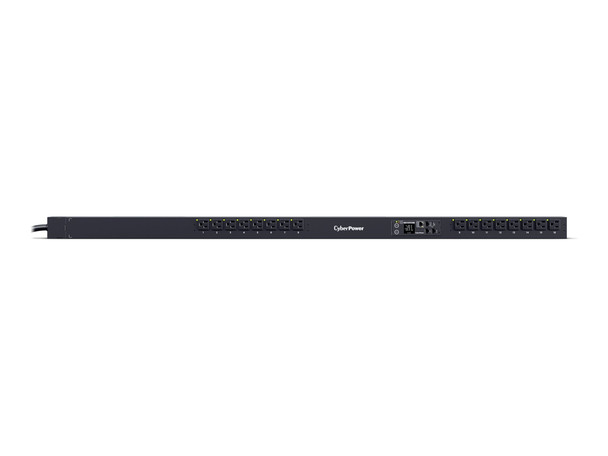

The CyberPower PDU41116, a 16-outlet, 0U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 16 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Features
UL Listed:
Yes
Physical Dimensions - (WxHxD) (cm) : 4.83 x 134.87 x 5.59 (cm) Physical Dimensions - (WxHxD) (in) : 1.9 x 53.1 x 2.2 (in) Physical Dimensions - (WxHxD) (mm) : 48 x 1349 x 56 (mm) Weight (kg) : 5.4 Weight (lb) : 11.9 Shipping Dimensions - (WxHxD) (cm) : 11.43 x 157.99 x 18.54 (cm) Shipping - Dimensions (WxHxD, in) : 4.5 x 62.2 x 7.3 (in) Shipping - Dimensions (WxHxD, mm) : 114.3 x 1579.88 x 185.42 (mm) Shipping - Weight (kg) : 7.57 Shipping - Weight (lb) : 16.7 Cord Length : 10 ft (3.0 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-15P Maximum Input Current : 15A (Derated to 12A) Phase : Single Phase Plug Style : Straight Meter Readout : Kilowatts Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 16 Outlets - Rear : 0 Outlets - Total : 16 Outlet Type COMPUTED : 16 - NEMA 5-15R Overload Protection : None USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Load SNMP / HTTP Remote Monitoring : TCP/IP, UDP, DHCP, SNMP, HTTP Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Vertical Rackmount Operating Elevation : 0 - 11482 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49212 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL 62368-1 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
Yes
Certifications & Standards:
UL 62368-1
Additional Information:
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 11.90 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type |
|
| Height | 53.1" |
| Color Family | Black |
| Mounting Orientation | Horizontal/Vertical |
| Width | 1.9" |
| Rack Height | 0U |
| Depth | 2.2" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU41116, a 16-outlet, 0U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 16 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls. |
| Product Condition | New |
| Product Type | PDU |
| Product Name | PDU41116 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU41116 |
| Product Model | PDU41116 |
| Product Series | Switched PDU |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 16 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Features | LCD Display |
| Management | |
| Management | <ul><li> SNMP</li><li> TCP/IP</li><li> UDP </li><li> DHCP</li><li> HTTP</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 95% |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 0% |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower PDU41116 Single Phase 100 - 120 VAC 15A Switched PDU
$873.99
