cyberpower systems

Cyberpower Pfc Adaptive Sinewave Intelligent Lcd Cp1000pfclcd 1000va Ups - 1000va/600w - 3 Minute Full Load - 10 X Nema 5-15r - Battery/surge-protected

(No reviews yet) Write a Review
SKU:
18055492
MPN:
cp1000pfclcd
Availability:
Usually ships the same or next business day. In stock at our CA, GA, IL, PA warehouses.
Shipping:
Calculated at Checkout
Stock Update:
12/11/2025 06:12:24 PM PST
  • Main
  • Right
  • Rear
  • Life-Style
  • Left
  • Alternate-Image2
  • Alternate-Image1
  • ALTIMAGE1
  • ALTIMAGE2
  • ALTIMAGE3
  • ALTIMAGE4
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
$179.95
Buy more, get it as low as $
Stock Update:
12/11/2025 06:12:24 PM PST

Description



This item is brand-new, factory sealed.

The CyberPower Intelligent CP1000PFCLCD Adaptive Sinewave uninterruptible power supply (UPS) with Pure Sine Wave output safeguards mid to high-end computer systems that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) topology delivers clean and consistent AC power. Its patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
The CP1000PFCLCD unit has a capacity of 1000VA/600Watts, (10) NEMA 5-15R receptacles and (1) maintenance-free, user-replaceable 12V/9.0Ah batteries. The intelligent multi-function LCD panel displays real-time UPS vitals for ease of control. Connectivity via (1) HID USB and (1) DB9 serial ports. Surge Protection for RJ11/RJ45 & coax.
PowerPanel Personal Edition UPS Management software, a Three-Year Warranty, and a $325,000 Connected Equipment Guarantee are included.



Package Contents:
  • CP1000PFCLCD UPS 1000VA 600W PFC compatible Pure sine wave
  • PowerPanel Personal Edition Software
  • USB Cable
  • Telephone Cable
  • User Manual
  • Registration Card
  • Coax Cable

Features

Package Contents:
  • PFC Sinewave CP1000PFCLCD 1000VA Mini-Tower UPS
  • User Manual
  • Telephone Cable
  • PowerPanel Personal Edition Software CD
  • Coaxial Cable
  • USB A+B Type Cable
  • Warranty Registration Card
  • Function Setup Guide



Certifications & Standards:
  • UL1778
  • cUL 107.3
  • FCC DOC Class B



Additional Information:
  • Active PFC Compatible : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Energy Star Certified : Yes
  • UPS Topology : Line Interactive
  • Battery Quantity : 1
  • Battery Size : 12 V / 9 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Hot Swappable : No
  • Replacement Battery Cartridge : RB1290
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 2 min
  • Runtime at Half Load : 6 min
  • Typical Recharge Time : 8 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 10.01 x 24.64 x 26.01 (cm)
  • Physical Dimensions - (WxHxD) (in) : 3.94 x 9.7 x 10.24 (in)
  • Physical Dimensions - (WxHxD) (mm) : 100 x 246 x 260 (mm)
  • Weight (kg) : 6.98
  • Weight (lb) : 15.39
  • Shipping Dimensions - (WxHxD) (cm) : 16.99 x 32.99 x 34.01 (cm)
  • Shipping - Dimensions (WxHxD, in) : 6.69 x 12.99 x 13.39 (in)
  • Shipping - Dimensions (WxHxD, mm) : 169.93 x 329.95 x 340.11 (mm)
  • Shipping - Weight (kg) : 7.5
  • Shipping - Weight (lb) : 16.53
  • Circuit Breaker : 15 A
  • Cord Length : 5 ft (1.5 m)
  • Input Frequency Range : 57 Hz - 63 Hz
  • Input Plug Type : NEMA 5-15P
  • Input Voltage Range : 88 VAC - 144 VAC
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Right Angle - 45° Offset
  • Automatic Voltage Regulation : Single Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 60 Hz ± 1%
  • On Battery Voltage : 120 VAC ± 5%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 5
  • Outlets - Surge-Only Protected : 5
  • Outlets - Total : 10
  • Outlet Type COMPUTED : 10 - NEMA 5-15R
  • Output Power Factor : 0.6
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 4 ms
  • Under/Over-Voltage Correction : +11.5%
  • USB Charge Port : Yes
  • USB Charge Port Amperage : 3.1 Amps (Shared)
  • USB Charge Port Quantity : 2
  • USB Charge Port Standard : Type A
  • USB Charge Port Type COMPUTED : 1 Type A
  • USB Charge Port Voltage COMPUTED : 5 VDC
  • VA : 1000 VA
  • Watts : 600 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible
  • Surge Suppression (Joules) : 1150 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible
  • Surge Suppression (Joules) : 1150 J
  • Audible Alarms : Battery Mode
  • Emergency Power Off (EPO) Port : No
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable
  • Serial Port : 1 Dry Contact
  • Software (Free Download) : PowerPanel® Personal
  • Color : Black
  • Form Factor : Mini-Tower
  • Material of Construction : Plastic
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL1778
  • CEG Amount : $350000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U1B
  • Product Warranty : 3 Year Limited Warranty

    •

    Environmentally Friendly:
    Yes



    Software Included:
    PowerPanel Personal Edition Software



    Energy Star:
    Yes



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Specs

    Power Description
    Load Capacity (Watt)600 W
    Input Frequency
    • 57 Hz
    • 63 Hz
    Output Power Factor0.6
    Surge Energy Rating1150 J
    Input Voltage Range88 V AC - 144 V AC
    Input Voltage120 V AC
    Circuit BreakerYes
    Output Voltage120 V AC
    Load Capacity (VA)1000 VA
    Waveform TypeSine Wave
    Output Frequency60 Hz
    Physical Characteristics
    Form FactorMini-tower
    Weight (Approximate)15.39 lb
    Product ColorBlack

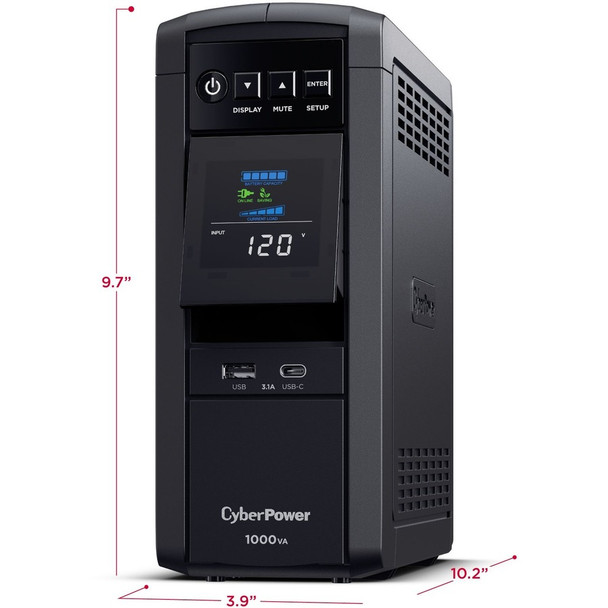

    Height9.7"
    Color FamilyBlack
    Width3.9"
    Depth10.2"
    Warranty
    Directly Connected Equipment Guarantee$350000 Lifetime
    Additional Warranty InformationThree-year warranty (including coverage of batteries)
    Limited Warranty3 Year
    Controls/Indicators
    Status Indicators<ul> <li>Power On</li> <li>Wiring Fault</li> </ul>
    Battery Information
    Backup/Run Time (Full Load)2 Minute
    Number of Batteries1
    Battery Capacity9000 mAh
    Replaceable BatteryYes
    Battery ChemistryLead Acid
    Hot SwappableNo
    Battery Size12V
    Backup/Run Time (Half Load)6 Minute
    Typical Battery Recharge Time8 Hour
    Battery CharacteristicsSealed
    Display & Graphics
    DisplayLCD
    General Information
    Brand NameCyberPower
    Manufacturer Website Addresshttps://www.cyberpowersystems.com/
    Marketing InformationA mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1000PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.
    The CP1000PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.
    The CP1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000PFCLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.
    More from the Manufacturer
    Product TypeLine-interactive UPS
    Product NameCP1000PFCLCD PFC Sinewave UPS Systems
    ManufacturerCyberPower Systems, Inc
    Manufacturer Part NumberCP1000PFCLCD
    Product ModelCP1000PFCLCD
    Product SeriesPFC Sinewave UPS
    Technical Information
    Receptacle Type
    • USB Type A
    • NEMA 5-15R
    • USB Type C
    Receptacle Detail
    • 10 x NEMA 5-15R
    • 1 x USB Type A
    • 1 x USB Type C
    EMI/RFI Noise FilterYes
    Number of Surge-only Outlets5
    Number of Battery & Surge Outlets5
    Surge SuppressionYes
    Transfer Time4 ms
    Energy SavingGreenPower UPS Bypass Technology
    Overload ProtectionYes
    Plug/Connector TypeNEMA 5-15P
    Cord Length5 ft
    Dataline ProtectionRJ-45
    Application/Usage
    • Desktop Computer
    • Workstation
    • Home Theater
    • Electronic Equipment
    • Home Network
    • Router
    • Modem
    • VoIP Phone System
    FeaturesAudible Alarm
    AVRYes
    Management
    Network Management
    • Relay-MS Card
    • Dry Contact
    AlarmBattery Mode
    Interfaces/Ports
    Number of USB Ports2
    USBYes
    EPO PortNo
    Serial PortYes
    USB (HID Compliant) PortYes
    Environmental Conditions
    Operating Humidity0% - 95%
    Maximum Operating Temperature104&deg;F (40&deg;C)
    Minimum Operating Temperature32&deg;F (0&deg;C)
    Storage Temperature5&deg;F (-15&deg;C) - 113&deg;F (45&deg;C)
    Maximum Operating Elevation10000 ft
