CyberPower PR3000RTXL2UCN Smart App Sinewave UPS Systems PR3000RTXL2UCN
(No reviews yet)
Write a Review
- SKU:
- 21103453
- MPN:
- pr3000rtxl2ucn
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/05/2026 07:08:55 AM PST
- Stock Update:
- 02/05/2026 07:08:55 AM PST
Description
This item is brand-new, factory sealed.

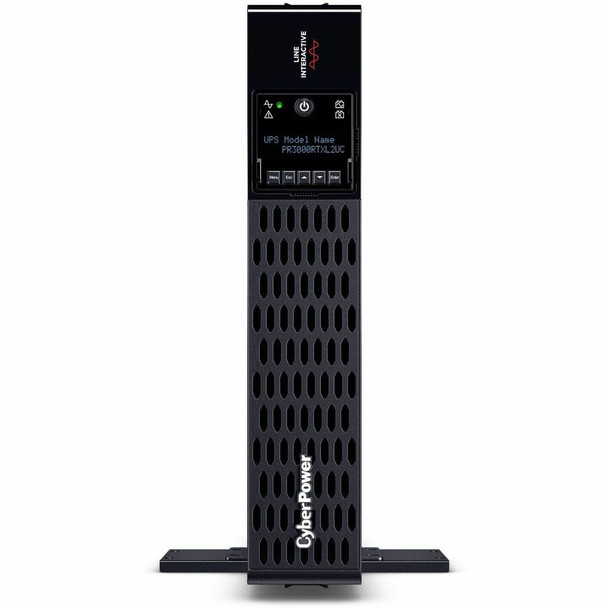

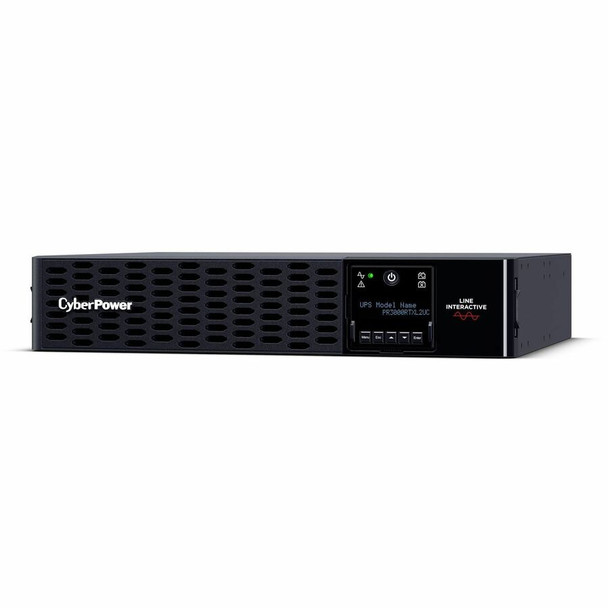

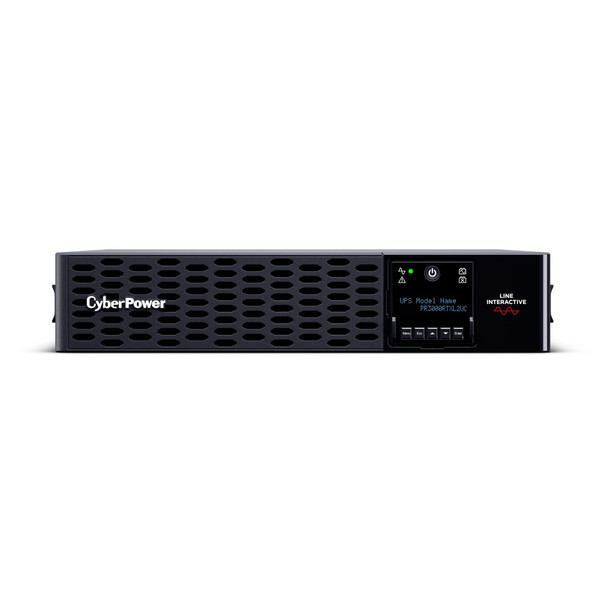

The PR3000RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR3000RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UCN.
Features
Certifications & Standards:
Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 1.7 min Runtime at Half Load : 7 min Typical Recharge Time : 3 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 34.2 Weight (lb) : 75.4 Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 61.6 (cm) Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 24.25 (in) Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 615.95 (mm) Shipping - Weight (kg) : 40.51 Shipping - Weight (lb) : 89.3 Adjustable Voltage Range : 70 - 155 VAC Circuit Breaker : 30 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA L5-30P Input Voltage : 100 - 120 VAC Input Voltage Range : 75 VAC - 149 VAC Nominal Input Voltage : 100 - 120 VAC Plug Style : Straight (Twist Lock) Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 100/110/120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 9 Outlets - Critical Load : 4 Outlets - Total : 9 Outlet Type COMPUTED : 8 - NEMA 5-20R Output Power Factor : 1 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 6ms; Max 13ms at normal sensitivity USB Charge Port : No VA : 3000 VA Watts : 3000 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1m from surface of unit : 57.5 dBA Online Thermal Dissipation : 192.5 BTU/hr Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
- UL1778
- VCCI
- FCC Class A
- CSA C22.2 No 107.3
Additional Information:
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Load Capacity (Watt) | 3000 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Voltage Range |
|
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 3000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 75.40 lb |
| Product Color | Black |
| Height | 3.4" |
| Color Family | Black |
| Width | 17.1" |
| Depth | 19.7" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <p><strong>LED Indicators:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Power On</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Line Mode</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Battery Mode</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Fault</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Night Mode</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Wiring Fault</li></ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Number of Batteries | 4 |
| Battery Capacity | 9000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 7 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The PR3000RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR3000RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UCN. |
| Product Type | Line-interactive UPS |
| Product Name | PR3000RTXL2UCN Smart App Sinewave UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR3000RTXL2UCN |
| Product Model | PR3000RTXL2UCN |
| Product Series | New Smart App Sinewave UPS |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Number of Critical Load Outlets | 4 |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 9 |
| Surge Suppression | Yes |
| Transfer Time | 13 ms |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10 ft |
| Application/Usage |
|
| Features | Audible Alarm |
| AVR | Yes |
| Management | |
| Network Management |
|
| Alarm |
|

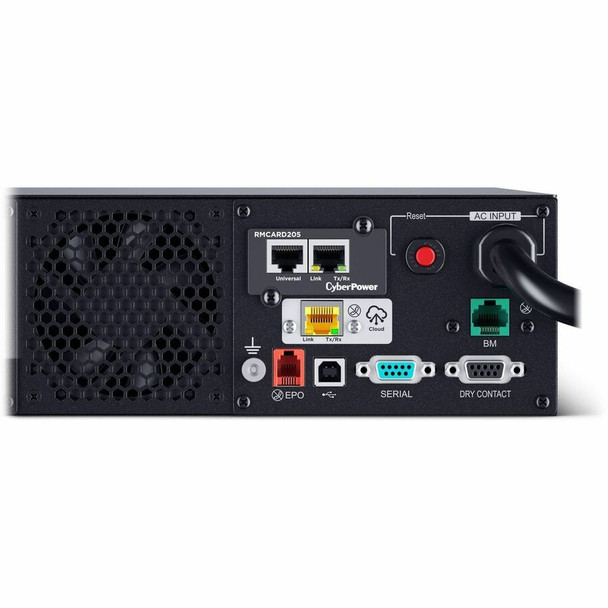

| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 56.42 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 49213 ft |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
