cyberpower systems
Cyberpower Rackbar Surge Suppressor Rm 1u Rkbs20st2f12r 20a 14-outlet - Receptacles: 14 X Nema 5-20r - 1800j
(No reviews yet)
Write a Review
- SKU:
- 18984753
- MPN:
- rkbs20st2f12r
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.

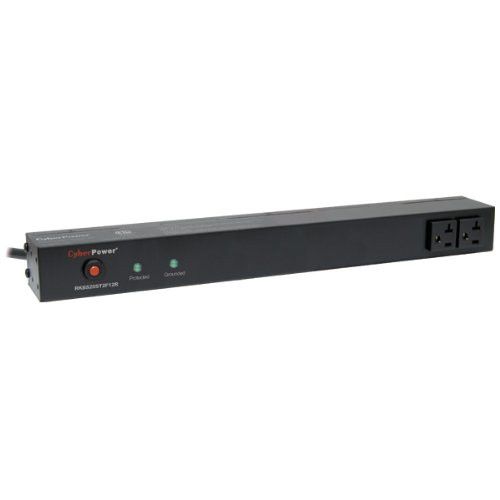

The CyberPower 14-outlet (2 Front and 12 Rear) rack mounted Rackbar surge suppressor (RKBS20ST2F12R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 14 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.Package Contents:
Features
Package Contents:
Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm) Weight (kg) : 2.22 Weight (lb) : 4.9 Shipping Dimensions - (WxHxD) (cm) : 17.78 x 6.68 x 50.8 (cm) Shipping - Dimensions (WxHxD, in) : 7 x 2.63 x 20 (in) Shipping - Dimensions (WxHxD, mm) : 177.8 x 66.8 x 508.0 (mm) Shipping - Weight (kg) : 2.72 Shipping - Weight (lb) : 6 Circuit Breaker : 20 A Cord Length : 15 ft (4.6 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P Maximum Input Current : 20A Plug Style : Straight Nominal Output Voltage : 120 VAC Outlets - Front : 2 Outlets - Rear : 12 Outlets - Total : 14 Outlet Type COMPUTED : 14 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Attenuation : 50 dB Clamping Voltage : 400V (H-N) EMI/RFI Filtration COMPUTED : Yes Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : 1 Nanosecond Surge Suppression (Joules) : 1800 J Attenuation : 50 dB Clamping Voltage : 400V (H-N) EMI/RFI Filtration COMPUTED : Yes Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : 1 Nanosecond Surge Suppression (Joules) : 1800 J LED Indicators : Power On (green) Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 : UL1449 CEG Amount : $150000 Connected Equipment Guarantee : Lifetime Product Warranty : Limited Lifetime Warranty
Yes
Restriction of Hazardous Substances (RoHS)
- Rackbar Surge Suppressor RM 1U RKBS20ST2F12R 20A 14-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
Additional Information:
Environmentally Friendly:
Yes
Compatibility:
- Data Centers
- PCs
- Workstation
- Server
- Internetworking Equipment
- Telecommunication Equipment
- Security System
- Audio/Video Equipment
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Surge Energy Rating | 1800 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.90 lb |
| Power Cord/Cable Length | 15 ft |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 2.3" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Engineered for the most demanding applications, the professional-grade Rackbar™ Surge Protector RKBS20ST2F12R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the 20-Amp RKBS20ST2F12R also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 14 surge-protected outlets (2 front, 12 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations). Features of the RKBS20ST2F12R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), twist lock plug, and a cord retention tray. The RKBS20ST2F12R also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee. |
| Product Type | Surge Suppressor/Protector |
| Product Name | RKBS20ST2F12R Rackbar 14 - Outlet Surge Protector with 1800 J Surge Suppression |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | RKBS20ST2F12R |
| Product Model | RKBS20ST2F12R |
| Product Line | Rackbar |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacles | 14 x NEMA 5-20R |
| Protection Type | Surge |
