cyberpower systems
Cyberpower Rackbar Surge Suppressor Rm 1u Rkbs20st4f8r 20a 12-outlet - Receptacles: 12 X Nema 5-20r - 1800j
(No reviews yet)
Write a Review
- SKU:
- 18242865
- MPN:
- rkbs20st4f8r
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/07/2025 09:57:04 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 8 or above | and pay only $141.37 each 141.37 |
- Stock Update:
- 12/07/2025 09:57:04 PM PST
Description
This item is brand-new, factory sealed.
The CyberPower 12-outlet (4 Front and 8 Rear) rack mounted Rackbar surge suppressor (RKBS20ST4F8R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.Package Contents:
Features
Package Contents:

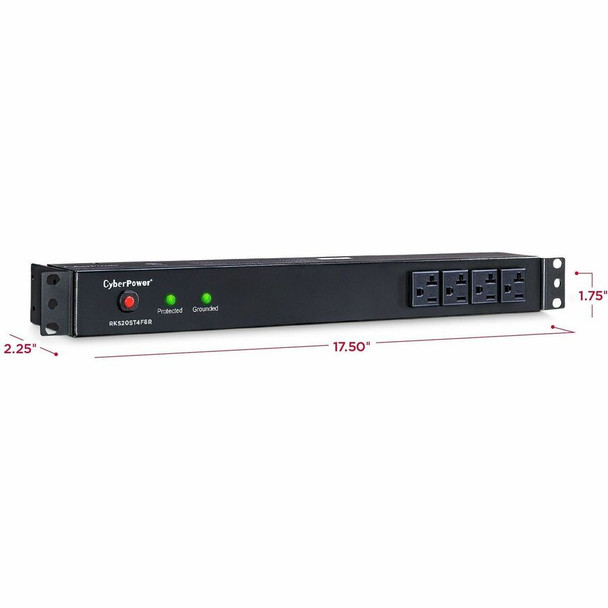

Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm) Weight (kg) : 2.22 Weight (lb) : 4.9 Shipping Dimensions - (WxHxD) (cm) : 18.11 x 6.86 x 51.44 (cm) Shipping - Dimensions (WxHxD, in) : 7.13 x 2.7 x 20.25 (in) Shipping - Dimensions (WxHxD, mm) : 181.1 x 68.58 x 514.35 (mm) Shipping - Weight (kg) : 3.18 Shipping - Weight (lb) : 7 Circuit Breaker : 20 A Cord Length : 15 ft (4.6 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P Maximum Input Current : 20A Plug Style : Straight Nominal Output Voltage : 120 VAC Outlets - Front : 4 Outlets - Rear : 8 Outlets - Total : 12 Outlet Type COMPUTED : 12 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Attenuation : 50 dB Clamping Voltage : 400V (H-N) EMI/RFI Filtration COMPUTED : Yes Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : 1 Nanosecond Surge Suppression (Joules) : 1800 J Attenuation : 50 dB Clamping Voltage : 400V (H-N) EMI/RFI Filtration COMPUTED : Yes Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : 1 Nanosecond Surge Suppression (Joules) : 1800 J LED Indicators : Power On (green) Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 : UL1449 CEG Amount : $150000 Connected Equipment Guarantee : Lifetime Product Warranty : Limited Lifetime Warranty
Yes
Restriction of Hazardous Substances (RoHS)
- Rackbar Surge Suppressor RM 1U RKBS20ST4F8R 20A 12-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
Additional Information:
Environmentally Friendly:
Yes
Compatibility:
- Data Centers
- PCs
- Workstation
- Server
- Internetworking Equipment
- Telecommunication Equipment
- Security System
- Audio/Video Equipment
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Surge Energy Rating | 1800 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.90 lb |
| Power Cord/Cable Length | 15 ft |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 2.3" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Engineered for the most demanding applications, the professional-grade Rackbar™ Surge Protector RKBS20ST4F8R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS20ST4F8R also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (4 front, 8 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations. Features of the RKBS20ST4F8R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), twist lock plug, and a cord retention tray. The also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee. |
| Product Type | Surge Suppressor/Protector |
| Product Name | RKBS20ST4F8R Rackbar 12 - Outlet Surge Protector with 1800 J Surge Suppression |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | RKBS20ST4F8R |
| Product Model | RKBS20ST4F8R |
| Product Series | Rackbar Surge |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacles | 12 x NEMA 5-20R |
| Protection Type | Surge |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Cyberpower Rackbar Surge Suppressor Rm 1u Rkbs20st4f8r 20a 12-outlet - Receptacles: 12 X Nema 5-20r - 1800j
$144.10
