Cyberpower Rackbar Surge Suppressor Rm 1u Rkbs20st6f12r 20a 18-outlet - Receptacles: 18 X Nema 5-20r - 1800j
(No reviews yet)
Write a Review
- SKU:
- 18141285
- MPN:
- rkbs20st6f12r
- Availability:
- Out of stock
- Stock Update:
- 11/14/2024 03:36:13 AM PST
- Stock Update:
- 11/14/2024 03:36:13 AM PST
Description
This item is brand-new, factory sealed.

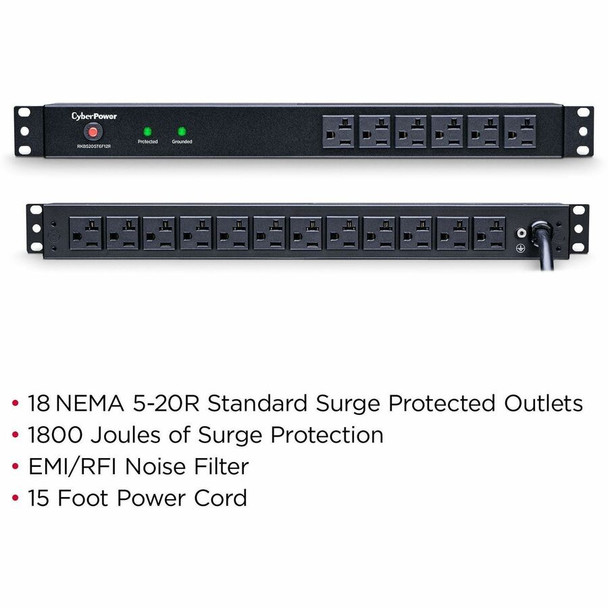

The CyberPower 18-outlet (6 Front and 12 Rear) rack mounted Rackbar surge suppressor (RKBS20ST6F12R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 18 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
Package Contents:
Features
Package Contents:

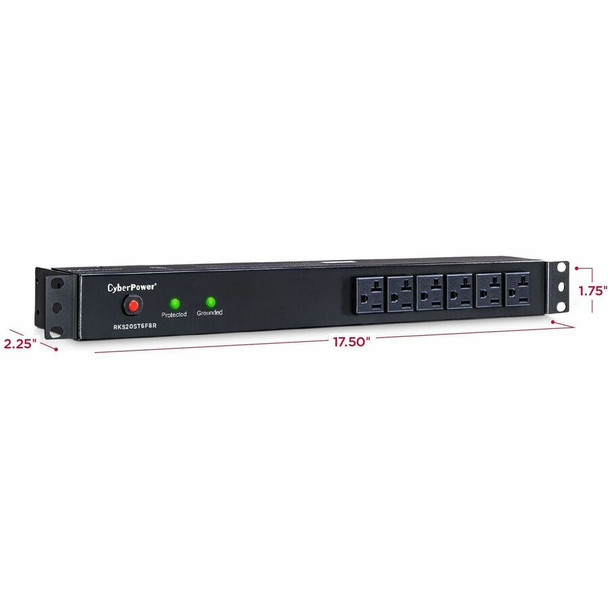

Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm) Weight (kg) : 2.23 Weight (lb) : 4.92 Shipping Dimensions - (WxHxD) (cm) : 17.93 x 6.68 x 50.8 (cm) Shipping - Dimensions (WxHxD, in) : 7.06 x 2.63 x 20 (in) Shipping - Dimensions (WxHxD, mm) : 179.32 x 66.8 x 508.0 (mm) Shipping - Weight (kg) : 3.18 Shipping - Weight (lb) : 7 Circuit Breaker : 20 A Cord Length : 15 ft (4.6 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P Maximum Input Current : 20A Plug Style : Straight Nominal Output Voltage : 120 VAC Outlets - Front : 6 Outlets - Rear : 12 Outlets - Total : 18 Outlet Type COMPUTED : 18 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Attenuation : 50 dB Clamping Voltage : 400V (H-N) EMI/RFI Filtration COMPUTED : Yes Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : 1 Nanosecond Surge Suppression (Joules) : 1800 J Attenuation : 50 dB Clamping Voltage : 400V (H-N) EMI/RFI Filtration COMPUTED : Yes Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : 1 Nanosecond Surge Suppression (Joules) : 1800 J LED Indicators : Power On (green) Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 : UL1449 CEG Amount : $150000 Connected Equipment Guarantee : Lifetime Product Warranty : Limited Lifetime Warranty
Yes
Restriction of Hazardous Substances (RoHS)
- Rackbar Surge Suppressor RM 1U RKBS20S6F8R 20A 14-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
Additional Information:
Environmentally Friendly:
Yes
Compatibility:
- Data Centers
- PCs
- Workstation
- Server
- Internetworking Equipment
- Telecommunication Equipment
- Security System
- Audio/Video Equipment
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Surge Energy Rating | 1800 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.90 lb |
| Power Cord/Cable Length | 15 ft |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 2.3" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Engineered for the most demanding applications, the professional-grade Rackbar™ Surge RKBS20ST6F12R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS20ST6F12R also performs superbly for home office use, providing 1800 joules of protection, 20-amp electrical capacity with circuit breaker, and 18 surge-protected outlets (6 front, 12 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations. Features of the RKBS20ST6F12R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), twist lock plug, and a cord retention tray. The RKBS20ST6F12R also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee. |
| Product Type | Surge Suppressor/Protector |
| Product Name | RKBS20ST6F12R Rackbar 18 - Outlet Surge Protector with 1800 J Surge Suppression |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | RKBS20ST6F12R |
| Product Model | RKBS20ST6F12R |
| Product Series | Rackbar Surge |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacles | 18 x NEMA 5-20R |
| Protection Type | Surge |
