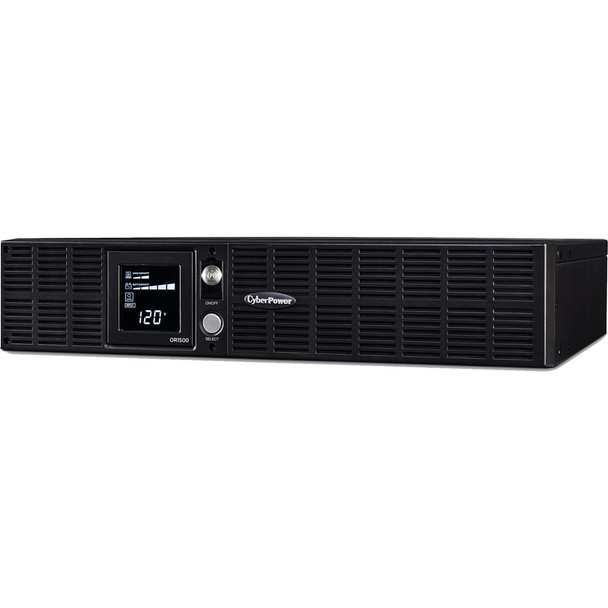

Cyberpower Smart App Intelligent Lcd Or1500lcdrt2u 1500va Ups Lcd Rt - 1.50 Kva/900 Wtower/rack Mountable 6 Second - 8 X Nema 5-15r (or1500lcdrt2u)
(No reviews yet)
Write a Review
- SKU:
- 18309749
- MPN:
- or1500lcdrt2u
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/09/2025 12:07:32 PM PST
- Stock Update:
- 12/09/2025 12:07:32 PM PST
Description
This item is brand-new, factory sealed.
The Smart App Intelligent LCD Series OR1500LCDRT2U UPS is designed to protect office servers, corporate and departmental networks, and network-based appliances. This ENERGY STAR® qualified UPS uses patented GreenPower UPS™ Bypass circuitry that saves on energy costs by reducing energy consumption and heat buildup.
The OR1500LCDRT2U has a capacity of 1500VA/900Watts, 8 battery & surge protected NEMA 5-15R receptacles. This UPS has maintenance-free, user-replaceable batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. The UPS offers options for connectivity via 1 HID USB, 2 DB9 serial and a SNMP card slot (optional RMCARD202/203). Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
PowerPanel® Business Edition UPS Management software, Three-Year Warranty, and $375,000 Connected Equipment Guarantee are included.
Package Contents:
- Smart App Intelligent LCD OR1500LCDRT2U 1500VA UPS LCD RT
- PowerPanel Business Edition Software CD
- User Manual
- USB Cable
- Serial Cable
- Registration Card
Features
Package Contents:
Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Replacement Battery Cartridge : RB1270X4J Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 6 min Runtime at Half Load : 18 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.82 x 8.89 x 40.01 (cm) Physical Dimensions - (WxHxD) (in) : 17.25 x 3.5 x 15.75 (in) Physical Dimensions - (WxHxD) (mm) : 438 x 89 x 400 (mm) Weight (kg) : 21.95 Weight (lb) : 48.4 Shipping Dimensions - (WxHxD) (cm) : 52.22 x 30.1 x 54.61 (cm) Shipping - Dimensions (WxHxD, in) : 20.56 x 11.85 x 21.5 (in) Shipping - Dimensions (WxHxD, mm) : 522.22 x 300.99 x 546.1 (mm) Shipping - Weight (kg) : 25.85 Shipping - Weight (lb) : 57.00 Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-15P Nominal Input Voltage : 120 VAC Plug Style : Straight Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 120 VAC ± 10% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 1500 VA Watts : 900 W EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1840 J EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1840 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4A Product Warranty : 3 Year Limited Warranty
Yes
PowerPanel Business Edition Software
Yes
Restriction of Hazardous Substances (RoHS)
Philippines
- Smart App Intelligent LCD OR1500LCDRT2U 1500VA UPS LCD RT
- PowerPanel Business Edition Software CD
- User Manual
- USB Cable
- Serial Cable
- Registration Card
Certifications & Standards:
- UL1778
- cUL 107.1
- FCC DOC Class B
- CSAC22.2
Additional Information:
Environmentally Friendly:
Yes
Software Included:
PowerPanel Business Edition Software
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Philippines
Specs
| Power Description | |
| Load Capacity (Watt) | 900 W |
| Input Frequency |
|
| Output Power Factor | 0.6 |
| Surge Energy Rating | 1840 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 1500 VA |
| Waveform Type | Simulated Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 48.40 lb |
| Height | 3.5" |
| Width | 17.3" |
| Rack Height | 2U |
| Depth | 15.7" |
| Warranty | |
| Directly Connected Equipment Guarantee | $300000 Lifetime |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <ul><li>Power On</li><li>Wiring Fault</li></ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 6 Minute |
| Number of Batteries | 4 |
| Battery Capacity | 7000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 18 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | A rack/tower UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | OR1500LCDRT2U Smart App LCD UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR1500LCDRT2U |
| Product Model | OR1500LCDRT2U |
| Product Series | Smart App LCD UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 4 ms |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft |
| Circuit Breaker Current Rating | 15 A |
| Dataline Protection |
|
| Application/Usage |
|
| AVR | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm |
|
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 95°F (35°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
