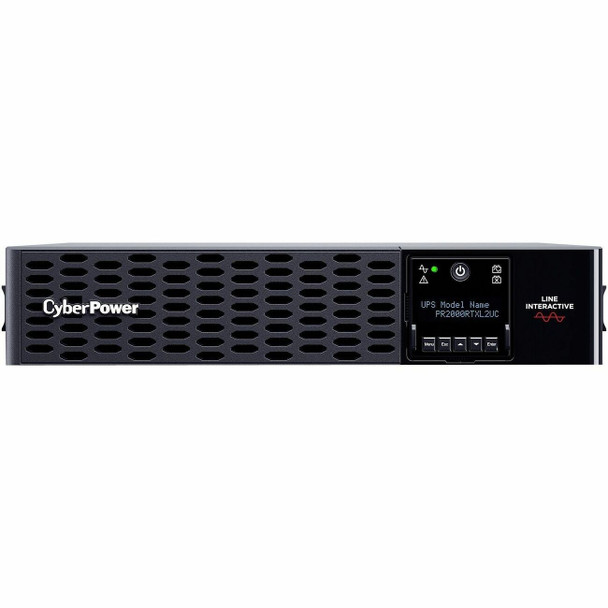

CyberPower Smart App Sinewave PR2000RTXL2UC 2000VA Rack/Tower UPS
(No reviews yet)
Write a Review
- SKU:
- 20546580
- MPN:
- pr2000rtxl2uc
- Availability:
- Usually ships the same or next business day. In stock at our CA, MS warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/19/2025 04:48:04 PM PST
- Stock Update:
- 12/19/2025 04:48:04 PM PST
Description
This item is brand-new, factory sealed.
The PR2000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR2000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and optional RMCARD205 network management card for remote management and control via a standard web browser or network management system. Built-in Cloud Monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2000RTXL2UC.
Features
Certifications & Standards:
Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 4.3 min Runtime at Half Load : 12.2 min Typical Recharge Time : 3 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 33.79 Weight (lb) : 74.5 Shipping Dimensions - (WxHxD) (cm) : 55.88 x 27.31 x 61.6 (cm) Shipping - Dimensions (WxHxD, in) : 22 x 10.75 x 24.25 (in) Shipping - Dimensions (WxHxD, mm) : 558.8 x 273.05 x 615.95 (mm) Shipping - Weight (kg) : 40.23 Shipping - Weight (lb) : 88.7 Adjustable Voltage Range : 70 - 155 VAC Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Input Voltage : 100 - 125 VAC Input Voltage Range : 75 VAC - 149 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 0° Offset Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 100/110/120/125 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Critical Load : 4 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-20R Output Power Factor : 1 Overload Protection : On Battery: Internal Circuitry Limiting Typical Transfer Time : 6ms; Max 11ms at normal sensitivity USB Charge Port : No VA : 2000 VA Watts : 2000 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1m from surface of unit : 57.5 dBA Online Thermal Dissipation : 130 BTU/hr Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Yes
Yes
Restriction of Hazardous Substances (RoHS)
China
- UL1778
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Load Capacity (Watt) | 2000 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Voltage Range |
|
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 2000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 74.50 lb |
| Length | 24.3" |
| Product Color | Black |
| Height | 3.4" |
| Color Family | Black |
| Width | 17.1" |
| Depth | 19.7" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
| Additional Warranty Information | <p>Connected Equipment Guarantee: Lifetime</p> |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <p><b>LED Indicators</b></p><ul><li> Power On</li><li> Line Mode</li><li> Battery Mode</li><li> Fault</li></ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Number of Batteries | 4 |
| Battery Capacity | 9000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 12.20 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The PR2000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns. The Smart App Sinewave PR2000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and optional RMCARD205 network management card for remote management and control via a standard web browser or network management system. Built-in Cloud Monitoring. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2000RTXL2UC. |
| Product Type | Line-interactive UPS |
| Product Name | PR2000RTXL2UC Smart App Sinewave UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR2000RTXL2UC |
| Product Model | PR2000RTXL2UC |
| Product Line | Smart App Sinewave |
| Technical Information | |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Critical Load Outlets | 4 |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 8 |
| Surge Suppression | Yes |
| Transfer Time | 11 ms |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type |
|
| Cord Length | 10 ft |
| Application/Usage |
|
| Features | Audible Alarm |
| AVR | Yes |
| Management | |
| Network Management |
|
| Alarm |
|
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Operating Humidity | 95% |
| Thermal Dissipation | 38.10 W |
| Storage Relative Humidity | 95% |
| Maximum Storage Elevation | 49209.32 ft |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
