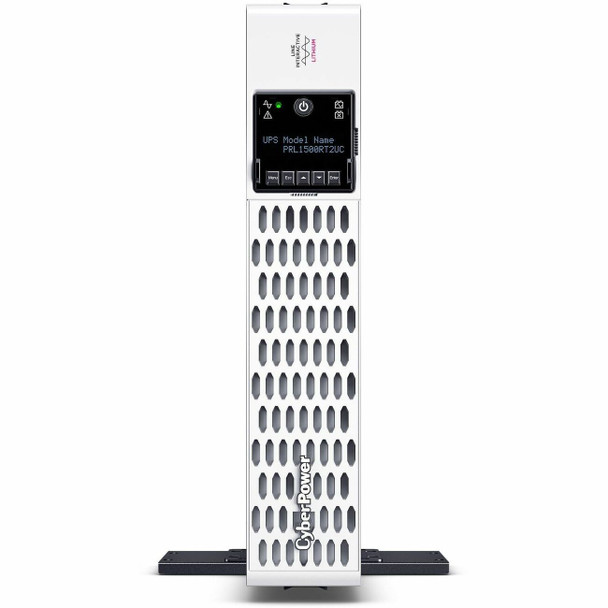

CyberPower Smart App Sinewave PRL1500RT2UC 1500VA Tower/rack convertible UPS
- SKU:
- 20750243
- MPN:
- prl1500rt2uc
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/04/2026 05:49:01 AM PST
- Stock Update:
- 02/04/2026 05:49:01 AM PST
Description
This item is brand-new, factory sealed.
The PRL1500RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PRL1500RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PRL1500RT2UC also has an innovative LCD panel that rotates 90°,and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
Lithium battery chemistry is a maintenance free premium battery technology with a longer lifespan and higher efficiency.
This model has built-in Cloud monitoring, and accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a five-year warranty, you can trust CyberPower's commitment to the quality of the PRL1500RT2UC.
Product Features | Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Line-Interactive Topology
Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Sine Wave Output
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
Lithium Battery
Lithium is a maintenance free premium battery technology with a longer lifespan and higher efficiency
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
Rotatable Multifunction LCD Panel
Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
Toolless Battery Panel Access
Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Features
- UL1778
- CSA C22.2 No 107.3
- FCC Class B
- DOE Compliant
- VCCI
Additional Information:
Environmentally Friendly:
Yes
Software Included:
PowerPanel® Business
Energy Star:
Yes
Energy Efficiency Certification:
ENERGY STAR 6.0
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Load Capacity (Watt) | 1500 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Voltage Range |
|
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 1500 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 54.19 lb |
| Product Color |
|
| Height | 3.4" |
| Color Family | Dual Color |
| Width | 17.1" |
| Depth | 19.7" |
| Rack Height | 2U |
| Warranty | |
| Additional Warranty Information | <p>5 years (Including Battery) and $400,000 connected equipment guarantee.</p> |
| Limited Warranty | 5 Year |
| Controls/Indicators | |
| Status Indicators | <p><b>LED Indicators:</b></p><ul><li> Power On</li><li> Line Mode</li><li> Battery Mode</li><li> UPS Fault</li></ul><p><b>LCD Display:</b></p><ul><li> UPS Status</li><li> UPS Setup</li><li> Control Management</li><li> Testing Options.</li></ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 8.70 Minute |
| Number of Batteries | 4 |
| Battery Capacity | 6000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Battery Size | 12.8V |
| Backup/Run Time (Half Load) | 18.70 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Battery Characteristics | Maintenance-free |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The lithium PRL1500RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns. The Smart App Sinewave PRL1500RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PRL1500RT2UC also has an innovative LCD panel that rotates 90°,and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. Lithium battery chemistry is a maintenance free premium battery technology with a longer lifespan and higher efficiency. This model has built-in Cloud monitoring, and accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a $400,000 connected equipment guarantee and a five-year warranty, you can trust CyberPower's commitment to the quality of the PRL1500RT2UC. |
| Product Type | Line-interactive UPS |
| Product Name | PRL1500RT2UC Smart App Sinewave UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PRL1500RT2UC |
| Product Model | PRL1500RT2UC |
| Product Line | Smart App Sinewave |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Critical Load Outlets | 4 |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft |
| EMI/RFI Noise Filter | Yes |
| Application/Usage |
|
| Features | Audible Alarm |
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 11 ms |
| AVR | Yes |
| Management | |
| Network Management |
|
| Alarm |
|
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Operating Humidity | 0% - 95% |
| Thermal Dissipation | 28.34 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 49213 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
