cyberpower systems
CyberPower Switched ATS PDU PDU24001 10-Outlets PDU
(No reviews yet)
Write a Review
- SKU:
- 19091880
- MPN:
- pdu24001
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/05/2026 06:21:16 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $406.81 each 406.81 |
- Stock Update:
- 04/05/2026 06:21:16 AM PST
Description
This item is brand-new, factory sealed.
CyberPower PDU24001 Metered ATS PDU, 100-120V, 15A (Derated to 12A), 10 Outlets, 1U Rackmount- 100-120V/15A (derated to 12A) Metered ATS Power Distribution Unit (PDU) delivers AC power to servers, equipment, network/telecom devices; AUTOMATIC TRANSFER SWITCH: Dual power cords provide redundant power sources to devices with single power supplies

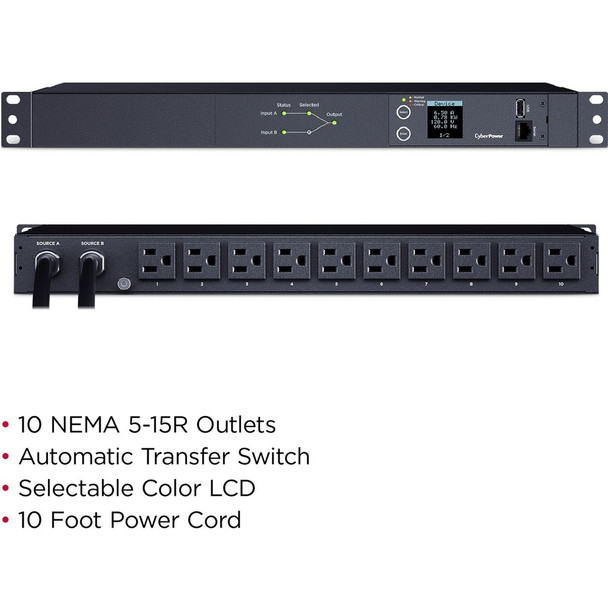

- 10 REAR NEMA 5-15R network-grade outlets ensure efficient distribution of power in demanding IT or industrial environments; INPUT: Two NEMA 5-15P input plugs with 10 foot power cords allow the PDU to be placed where power is needed
- SELECTABLE COLOR LCD PANEL: Displays immediate, detailed information on PDU conditions, including amperage, voltage, KW, IP Address, etc.; COMPATIBLE WITH: Sine wave AC power sources; NOT COMPATIBLE WITH: simulated sine wave AC power sources
- SWITCH-FREE DESIGN: Safeguards against accidental power shutdown; UPGRADEABLE FIRMWARE: allows users to download firmware updates to programs that run the PDU
- 1U RACKMOUNT: With durable metal housing; 3-YEAR LIMITED WARRANTY
- Product Dimensions: 4.5 x 21.5 x 15.75 inches
- Item Weight: 12.47 pounds
Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.
Features
Certifications & Standards:

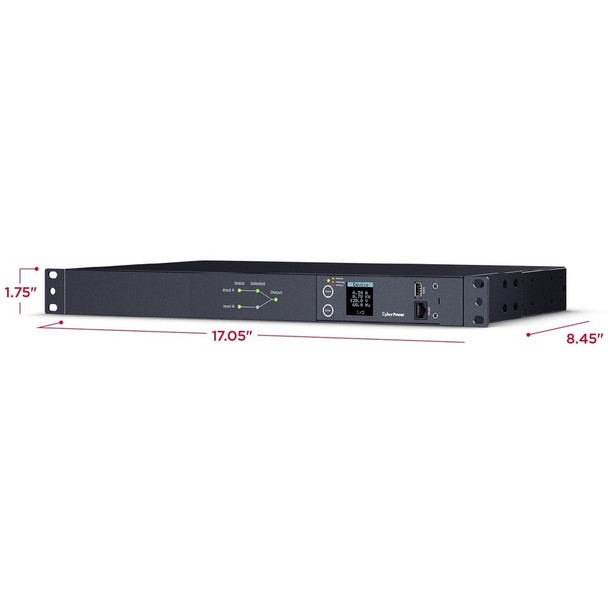

Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 4.35 Weight (lb) : 9.6 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm) Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in) Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm) Shipping - Weight (kg) : 5.76 Shipping - Weight (lb) : 12.7 Cord Length : 10 ft (3.0 m) Derated Input Current : 12 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : 2 x NEMA 5-15P Maximum Input Current : 15A Nominal Input Voltage : 100 - 120 VAC Phase : Single Phase Plug Style : Straight Nominal Output Voltage : 100 - 120 VAC Outlet Banks : 1 Outlets - Total : 10 Outlet Type COMPUTED : 10 - NEMA 5-15R Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Hardware Connection Port : Serial (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 via cTUVus Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
China
- UL62368 via cTUVus
- FCC Class A
- ICES-003: Issue 7
Additional Information:
Environmentally Friendly:
Yes
Application/Usage:
Network Device
Data Center
Network Closet
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 9.59 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 8.5" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty. |
| Product Type | PDU |
| Product Name | PDU24001 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU24001 |
| Product Model | PDU24001 |
| Product Series | Metered ATS PDU |
| Technical Information | |
| Design | Modular |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Metered |
| Locking Receptacles | Cord Retention Tray |
| Features |
|
| Management | |
| Management | <b>Protocols:</b><ul><li>IPv4</li><li>TCP</li><li>IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP<li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS<li>Syslog</li><li>CLI</li><li>Windows AD</li><li>SNMP</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 131°F (55°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
