CyberPower Switched ATS PDU PDU24005 10-Outlets PDU (pdu24002)
(No reviews yet)
Write a Review
- SKU:
- 19196589
- MPN:
- pdu24002
- Availability:
- Usually ships the same or next business day. In stock at our IL, MS warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/06/2026 11:50:25 PM PST
- Stock Update:
- 04/06/2026 11:50:25 PM PST
Description
This item is brand-new, factory sealed.
Ensure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty.
Package Contents:
- Switched ATS PDU PDU24005 10-Outlets PDU
- L5-20P to non-locking 5-20P Adapter
Features
Package Contents:

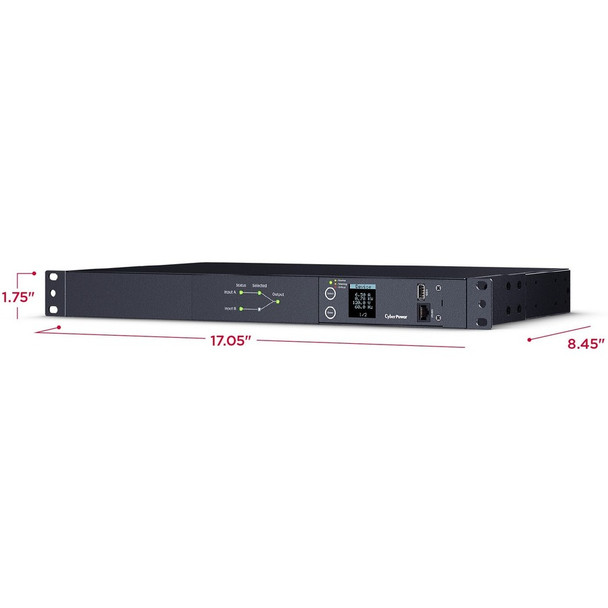

Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 4.81 Weight (lb) : 10.6 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm) Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in) Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm) Shipping - Weight (kg) : 6.67 Shipping - Weight (lb) : 14.7 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : 2 x NEMA L5-20P Maximum Input Current : 20A Nominal Input Voltage : 100 - 120 VAC Phase : Single Phase Plug Style : Straight Nominal Output Voltage : 100 - 120 VAC Outlet Banks : 1 Outlets - Total : 10 Outlet Type COMPUTED : 10 - NEMA 5-20R Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Hardware Connection Port : Serial (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 via cTUVus Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
China
- PDU24002
- L5-20P to non-locking 5-20P Adapter
Certifications & Standards:
- UL62368 via cTUVus
- FCC Class A
- ICES-003: Issue 7
Additional Information:
Environmentally Friendly:
Yes
Application/Usage:
Data Center
Network Closet
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 10.60 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 8.5" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty. |
| Product Type | PDU |
| Product Name | PDU24002 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU24002 |
| Product Model | PDU24002 |
| Product Series | Metered ATS PDU |
| Technical Information | |
| Design | Modular |
| Plug/Connector Detail | 2 x NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 10 x NEMA 5-20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P |
| PDU Type | Metered |
| Locking Receptacles | Cord Retention Tray |
| Features |
|
| Management | |
| Management | <b>Protocols:</b><ul><li>IPv4</li><li>TCP</li><li>IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP<li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS<li>Syslog</li><li>CLI</li><li>Windows AD</li><li>SNMP</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 131°F (55°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
