cyberpower systems

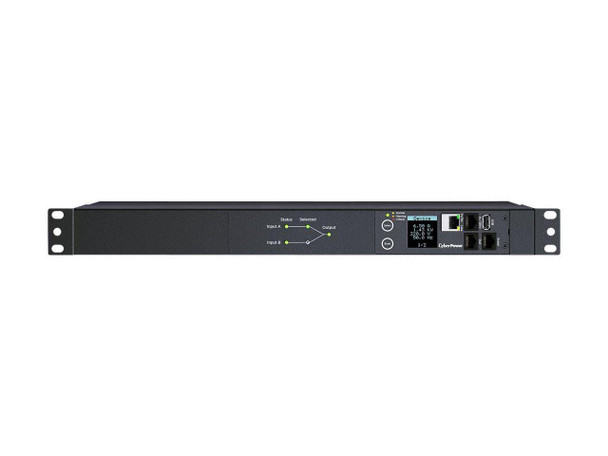

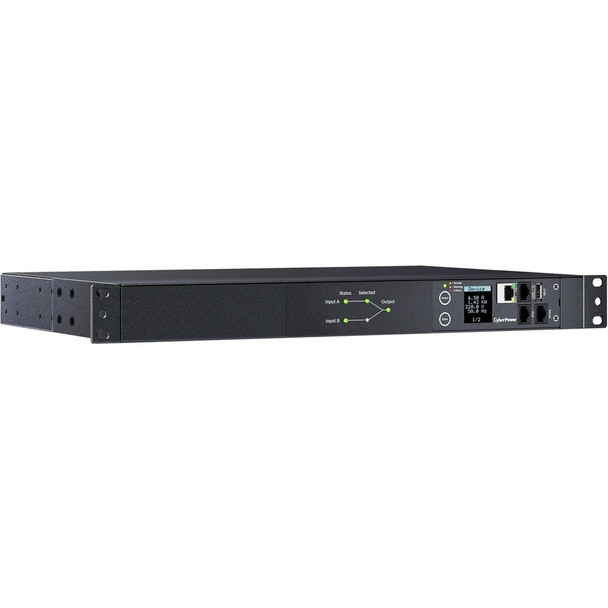

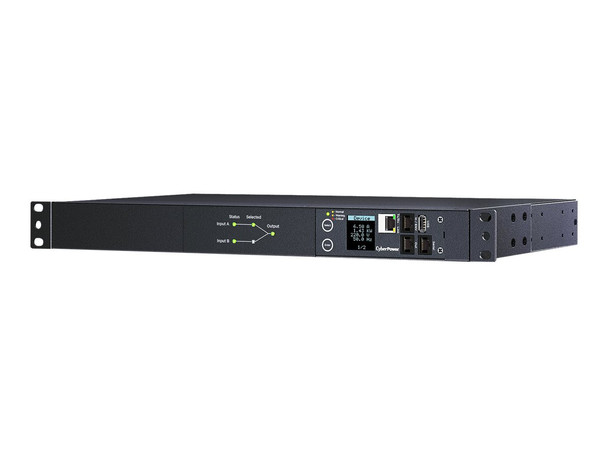

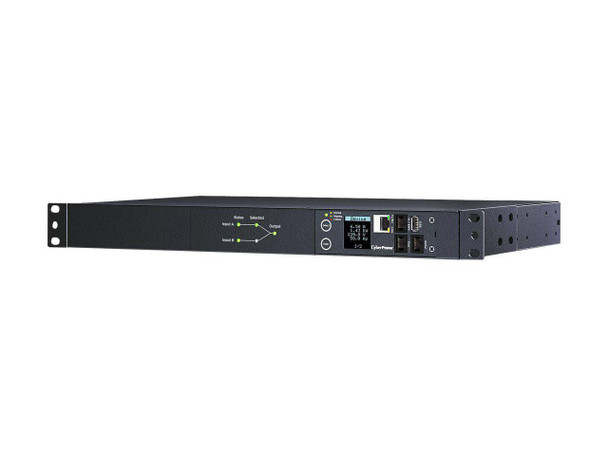

CyberPower Switched ATS PDU PDU44005 10-Outlets PDU
(No reviews yet)
Write a Review
- SKU:
- 19053591
- MPN:
- pdu44005
- Availability:
- Out of stock
- Stock Update:
- 11/12/2025 04:30:47 PM PST
- Stock Update:
- 11/12/2025 04:30:47 PM PST
Description
This item is brand-new, factory sealed.
CyberPower PDU44005 Switched ATS PDU, 100-120V,20A (Derated to 16A), 10 Outlets, 1U Rackmount- 200-240V/20A (derated to 16A) Metered ATS Power Distribution Unit (PDU) delivers AC power to servers, equipment, network/telecom devices; AUTOMATIC TRANSFER SWITCH: Dual power cords provide redundant power sources to devices with single power supplies

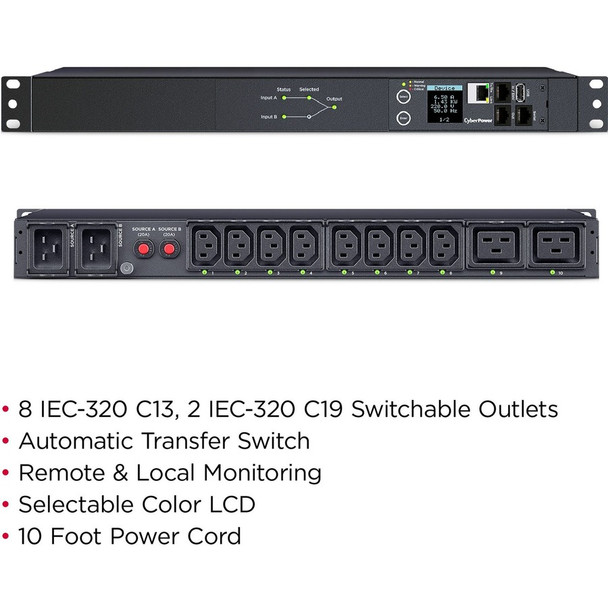

- 8 REAR IEC-320 C13, TWO REAR IEC-320 C19 OUTLETS: Can be turned on/off, recycled on demand, at set times for remote rebooting, load shedding, power sequencing, & locking out unauthorized loads; INPUT: Two IEC-320 C20 input plugs with 10 foot power cords
- SELECTABLE COLOR LCD PANEL: Displays immediate, detailed information on PDU conditions, including amperage, voltage, KW, IP Address, etc.; COMPATIBLE WITH: Sine wave AC power sources; NOT COMPATIBLE WITH: simulated sine wave AC power sources
- REMOTE AND LOCAL MONITORING: User can track PDU vitals both offsite and onsite; Provides control to turn on/off individual outlets or circuits; AUTOMATIC EVENT NOTIFICATIONS: Provides immediate updates about power events via email, SMS, or SNMP traps
- 1U RACKMOUNT: With durable metal housing; UPGRADEABLE FIRMWARE: allows users to download firmware updates to programs that run the PDU; 3-YEAR LIMITED WARRANTY
- Package Dimensions: 21.65 x 15.67 x 4.9 inches
- Item Weight: 14.5 pounds
Ensure continued operation of critical devices with the CyberPower PDU44005 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44005 is protected by a three-year limited warranty.
Features
UL Listed:
Yes
Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 3.76 Weight (lb) : 8.3 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm) Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in) Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm) Shipping - Weight (kg) : 6.58 Shipping - Weight (lb) : 14.5 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Overload Protection : 20A x 2 Input Plug Type : 2 x IEC-320 C20 Maximum Input Current : 20A Nominal Input Voltage : 200 - 240 VAC Phase : Single Phase Plug Style : Straight (Socket) Nominal Output Voltage : 200 - 240 VAC Outlet Banks : 1 Outlets - Total : 10 Outlet Type COMPUTED : 8 - IEC-320 C13 Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
China
Yes
Certifications & Standards:
- UL62368
- FCC Class A
- cTUVus
- CE
- UKCA
Additional Information:
Environmentally Friendly:
Yes
Application/Usage:
Data Center
Network Closet
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Circuit Breaker | Yes |
| Output Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 8.29 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 8.5" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU44005 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44005 is protected by a three-year limited warranty. |
| Product Type | PDU |
| Product Name | PDU44005 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU44005 |
| Product Model | PDU44005 |
| Product Series | Switched ATS PDU |
| Technical Information | |
| Design | Modular |
| Plug/Connector Detail | 2 x IEC 60320 C20 |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | IEC 60320 C20 |
| PDU Type | Switched |
| Protection Type | Overload Protection |
| Features |
|
| Management | |
| Remote Outlet Switching | Yes |
| Management | <ul> <li>IPv4</li> <li>TCP/IP</li> <li>UDP</li> <li>SNMPv1</li> <li>HTTP</li> <li>NTP</li> <li>DNS</li> <li>Telnet</li> <li>DHCP</li> <li>SMTP</li> <li>FTP</li> <li>IPv6</li> <li>SNMPv3</li> <li>HTTPs</li> <li>SSH</li> <li>SSL</li> <li>TLS</li> <li>LDAP(S)</li> <li>RADIUS</li> <li>Syslog</li> <li>CLI</li> <li>Windows AD</li> </ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 131°F (55°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower Switched ATS PDU PDU44005 10-Outlets PDU
