CyberPower Switched PDU RM 1U PDU15SW8FNET 15A 8-Outlet
(No reviews yet)
Write a Review
- SKU:
- 19196458
- MPN:
- pdu15sw8fnet
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/22/2026 12:16:05 AM PST
- Stock Update:
- 02/22/2026 12:16:05 AM PST
Description
This item is brand-new, factory sealed.

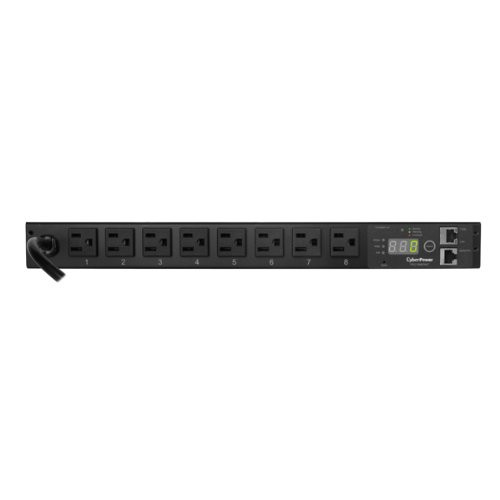

The CyberPower (PDU15SW8FNET) 8-outlet 1U rack mount switched power distribution unit (PDU) provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. Outlets can be managed individually over the network, using CyberPower Management Console and the RJ45 Ethernet port for local network connection, or locally using the LCD. The LCD displays the electrical current used by connected equipment in amps and can be toggled to display input voltage, power being consumed in watts, and the IP address of the PDU. The CyberPower Management Console offers remote management of the unit: monitoring PDU vitals as well as controlling outlets and networked clients.
The unit has a rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted horizontally or vertically, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Package Contents:
- Switched PDU RM 1U PDU15SW8FNET 15A 8-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
Features
Package Contents:
Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm) Weight (kg) : 2.4 Weight (lb) : 5.29 Shipping Dimensions - (WxHxD) (cm) : 24.77 x 6.99 x 49.53 (cm) Shipping - Dimensions (WxHxD, in) : 9.75 x 2.75 x 19.5 (in) Shipping - Dimensions (WxHxD, mm) : 247.65 x 69.85 x 495.3 (mm) Shipping - Weight (kg) : 4.0 Shipping - Weight (lb) : 8.82 Cord Length : 12 ft (3.7 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Plug Style : Straight Meter Readout : Kilowatts Nominal Output Voltage : 100 - 120 VAC Outlet Banks : 1 Outlets - Front : 8 Outlets - Rear : 0 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Overload Protection : None USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Load SNMP / HTTP Remote Monitoring : TCP/IP, UDP, DHCP, SNMP, HTTP Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 14760 ft (0 - 4499 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1 certified by ETL Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
- PDU15SW8FNET
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
Certifications & Standards:
- UL60950-1 Certified by ETL (USA)
- CSA C22.2(Canada)
- FCC Class A
Additional Information:
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Weight (Approximate) | 5.29 lb |
| Cord Length | 12 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 4.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU15SW8FNET, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls. |
| Product Type | PDU |
| Product Name | PDU15SW8FNET 100 - 120 VAC 15A Switched |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU15SW8FNET |
| Product Model | PDU15SW8FNET |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Features | LCD Display |
| Management | |
| Management | <li>SNMP</li><li>HTTP</li><li>TCP/IP</li><li>UDP</li><li>DHCP</li><li>SNMP</li><li>HTTP</li> |
| Environmental Conditions | |
| Maximum Storage Temperature | 113°F (45°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower Switched PDU RM 1U PDU15SW8FNET 15A 8-Outlet
$328.48
