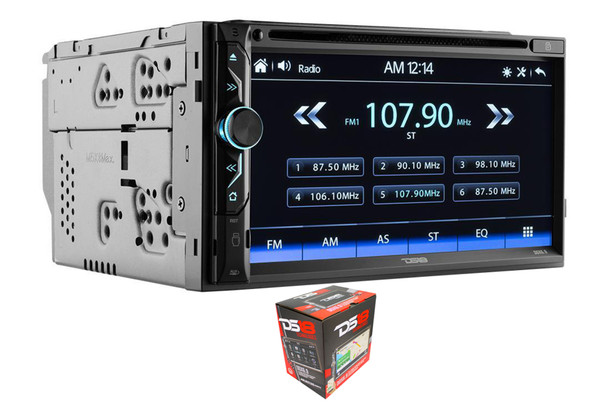

DS18 Audio DDX6.9 6.9touchscreen Double Din Headunit DDX6.9

This item is brand-new, factory sealed.

* 6.9-in Double-Din Digital Media Receiver * CD DVD * BT USB AUX SD AM/FM * Mirror Link SWC * Touchscreen * IOS and Android Compatible * SKU: DDX6.9 * Rated power source: 14.4V DC (10.8V to 15V operation) * Maximum Current Consumption: 10 Amp * Dimensions (W x H x D): Chassis: 178mm x 100mm x 135mm Bezel frame: 170mm x 96mm x 5mm * Weight: 1.52 Kg Display * Screen Size / Aspect Ratio: 6.9 inch / Wide 16:9 * Pixels: 1024 x 600 * Display Type: TFT / WSVGA / Capacitive Touch Screen * Temperature Operation: -20C to +60C (14F to 140F) Audio * Maximum Power Output: 40W X 4 Ch / 4 ohm * Continuous Power Output: 15W x 4 Ch / 4 ohm * Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer) * Equalizer: 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz) * Gain: +/- 12dB * Audio Control: Volume / Balance / Fader /Loudness Tuner * Frequency Range: FM: 87.5 107.9 KHz AM: 530 1710 KHz * Presets Memory: 30 Stations (18 FM/12 AM) * Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East) * Sensitivity Adjustment: LOC (On/Off) / ST (On/Off) USB / SD Player * Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS * Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX * Resolution Supported: 1080P Video * Memory Size Reader: up to 64 Gb * Max Current Supply: 1.5 Amp (USB) * Number of USB Ports: 2 (1 x Front, 1 x Rear) Connectivity * Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls * Camera Input: RCA Analog Video up to HD 720p (Front/Rear) * Video Output: Dual RCA (1 Volt/75 ohm) * A/V Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio * Microphone: 3.5mm Jack external MIC Input * Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input DS18 DDX6.96.9-in Double Din Digital Media Receiver CD/DVD Player, Touchscreen, Bluetooth, USB, Mirror Link Thanks to DS18-inTs DDX6.9 you and everyone in the vehicle can enjoy crisp visuals and goose bump worthy sound quality. Maneuvering through the options is easy with the touch screen controls giving you absolute control over all your media. This receiver will include everything you need to bring your multimedia dreams including Mirror Link, Wi-Fi, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations. Apps are also easily downloadable when you hook your head unit up to your cellular hot spot. The SD reader can use memory cards up to 64GB. Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer tunes your sound to your tastes easily. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device. There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. [Piece]
