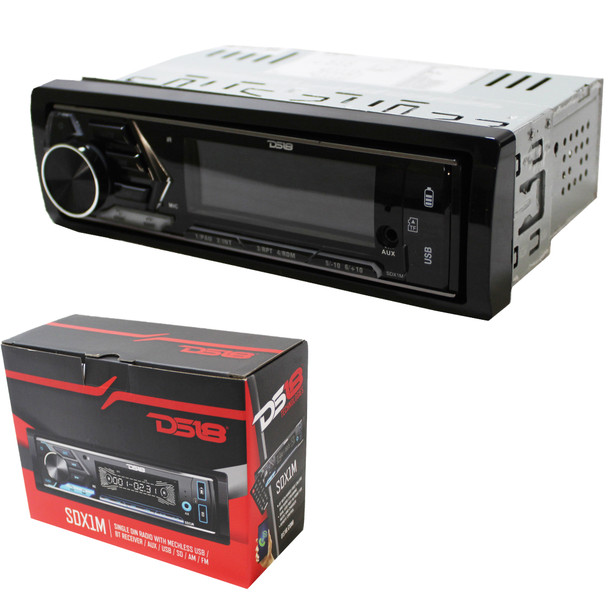

DS18 Audio SDX1M Single Din Mechless Bt Usb Sd Am Fm

This item is brand-new, factory sealed.

• This mechless single din unit pushes out 50 watts max for all 4 channels while the pre-amp output is adjustable up to 7v, which is important for maximizing the most out of your amplifiers and getting the cleanest sound while maintaining high volume levels. Mechless means this unit has no CD/DVD player.
• There is a USB, SD, and BT reader that are used for the main file sources that stream and read up to 64GB drives. Radio stations will come in strong and clear and can be set on any of the 18 memory locations.
• Your receiver is the driving source of all your music and feeds your amplifiers a clean signal that ensures long life and amazing sound quality out of your sound system. The SDX1M was designed to do just that, along with providing you precise and easy-to-use controls to get the most out of your audio experience.
• Connect to your USB easily with two front USB ports which both have charging functionality with an added front AUX input jack.
• The SDX1M is a great starting decision if you are looking for a single din, high-powered head unit, with high pre-amp voltage and tons of additional options to start your audio build.

• Product Dimensions: 8.19 x 5.94 x 3.62 inches
• Item Weight: 1.43 pounds

DS18 SDX1M Single Din Headunit Digital Media Receiver Mechless Player, Bluetooth, Dual USB, 7 Volt Preouts. Your radio is the driving source of all your music and feeds your amplifiers a clean signal that ensures long life and amazing sound quality out of your sound system. The SDX1M was designed to do just that, along with providing you precise and easy-to-use controls to get the most out of your audio experience. This mechless single din unit pushes out 50 watts max for all 4 channels while the pre-amp output is adjustable up to 7v, which is important for maximizing your amplifiers and getting the cleanest sound while maintaining high volume levels. You can also set the colors of the unit because of the backlit RGB keys to match your mood or existing color schemes, while the easy-to-read 3-inch VA white display remains bright and clear. You can tune your sound easily with the 2 band equalizer which allows you to adjust vital functions like level, bass, treble, balance, fade, and subwoofer controls precisely and with ease.

Highlights:

• Mechless Single Din USB/BT Receiver
• Single Din Perfect Fit Mounting
• FM Radio: 18 Memory Locations
• Source: USB, SD, BT Reader/Streamer
• Supported Media Files: MP3, WMA, FLAC, MAV
• Remote Control: Infrared
• RGB: 7 Selectable Colors
• Display: 3" VA White Backlit
• Power: 50 x 4 Watts Max
• Equalizer: 2 Bands with Adjustable Bass, Treble, and Subwoofer
• Pre-amp output: 7v
• Inputs: USB, SD, BT, Front AUX
• Good for: Car Audio DIY Projects

Technical Details:

• SDX1M Product Manual
• GENERAL:
• Rated power source 14.4V DC (11V to 16V operation)
• Maximum Current Consumption 10 Amp
• Dimensions (W x H x D): Chassis 178mm x 50mm x 150mm; Bezel frame 188mm x 58mm x 30mm
• Weight 15.9 Oz / 452 grams
• DISPLAY:
• Screen Size: 3" / 75 x 25mm
• Display Type: VA LCD
• Temperature Operation: -20C to +60C (14F to 140F)
• AUDIO:
• Maximum Power Output: 50W x 4 Ch @ 4 ohm (14.4v)
• Continuous Power Output: 17W x 4 Ch @ 4 ohm (14.4v)
• Pre-output Level: 7 Volts (14.4V)
• Equalizer: 2 bands (Bass: 60Hz, Treble: 10KHz)
• Gain +/- 7dB
• Preset EQ: Jazz / Rock / Pop / Classic
• Audio Control: Volume / Balance / Fader / Loudness / Bass / Treble
• Subwoofer Control: Vol (0-20) / Cut (80/120/160 Hz)
• Signal to Noise Ratio: >60dB
• THD: <0.3%
• Frequency Response: 20Hz - 20kHz
• TUNER:
• Frequency Range: FM: 87.5 ~ 107.9 KHz
• Presets Memory: 18 Stations
• Region: North America - USA
• Sensitivity Adjustment: LOC / DX & ST / Mono
• Sensitivity: <20dB
• Stereo Separation: >25dB
• USB / SD PLAYER:
• Type/Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
• Format Files Supported: MP3, WMA, FLAC, MAV
• Info Display Format: ID3 Tag
• Memory Size Reader up to 64 GB
• Max Current Supply: 1.5 Amp (Charging USB port)
• Number of USB Ports: 2 x Front (1 for Audio / 1 for Charging)
• SD Slot: 1 x Front Micro SD
• CONNECTIVITY:
• Bluetooth Version / Services: V4.1 / Audio Streaming / Hands-Free calls
• Audio Protocol: A2DP v1.2 Sink (SNK)
• Aux Input: Front 3.5mm Jack Stereo Audio
• Microphone: Built-In Microphone on faceplate
• Remote Control: Frontal IR Receptor
