DYNATRON

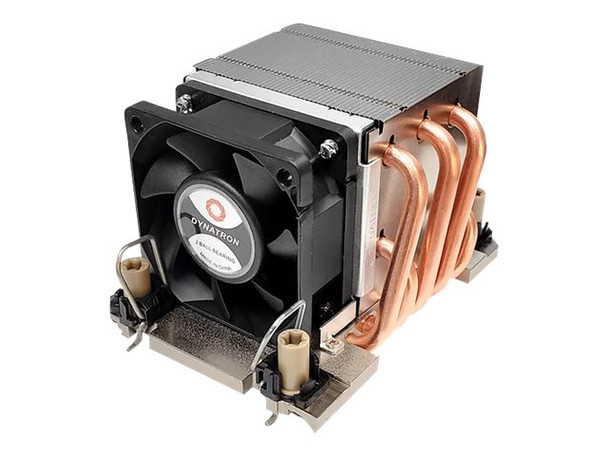

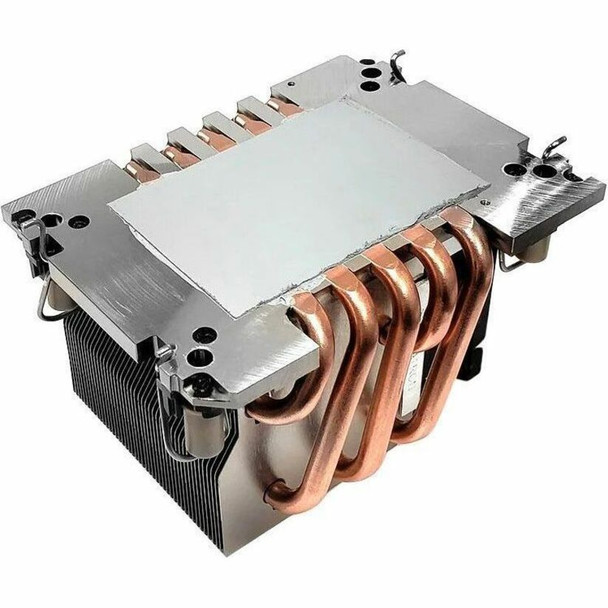

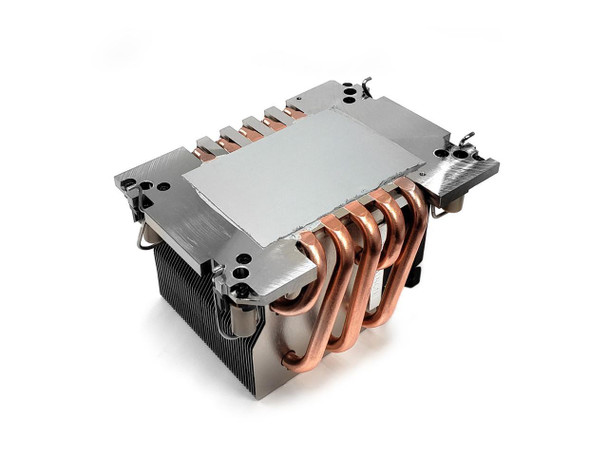

Dynatron N11 Cooling Fan/Heatsink
- SKU:
- 18031535
- MPN:
- 252564
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/12/2026 04:39:21 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $61.22 each 61.22 |
| Buy 3 | and pay only $57.24 each 57.24 |
| Buy 4 - 6 | and pay only $56.12 each 56.12 |
| Buy 7 or above | and pay only $54.99 each 54.99 |
- Stock Update:
- 04/12/2026 04:39:21 AM PST
Description
This item is brand-new, factory sealed.
N11Recommend for Intel Whitley Platform Ice Lake and Cooper Lake Server Processor, LGA 4189 sockets, Aluminum Fin stack with Heat Pipe embedded, Active Cooler for 2U Server and up, Support 270 Watts CPU Power Heat Dissipation.CPU Support
IntelCPU Socket
FCLGA 4189-4/5(Socket P4/P5 or P+)Solution
2U Server and UpMaterial
Aluminum Fin stack with Heat Pipe embeddedFan Dimension
60 x 60 x 25 mmSpeed
Up to 8500 RPMRated Voltage
12VBearing
2 Ball BearingPower
At Duty Cycle 20%: 0.90 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 5.40 WAir Flow
At Duty Cycle 20%: 8.12 CFM
At Duty Cycle 50%: 20.31 CFM
At Duty Cycle 100%: 40.60 CFMNoise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBAAir Pressure
At Duty Cycle 20%: 0.58mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2OLead Wire Pin Out
Pin Number 1-Black(-)
Pin Number 2- Yellow(+)
Pin Number 3- Green(Tachometer/ Signal Output)
Pin Number 4- Blue (PWM)Thermal Grease
Shin-Etsu 7762 Pre-printedItem Dimension (L"xW"xH")
6 x 5 x 4
Weight
2 lbs
Warranty Information
1 year
Features
Application/Usage:
Dissipates the Heat
Restriction of Hazardous Substances (RoHS)
China
Server
Processor
CPU
Features:
Dissipates the Heat
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material | Aluminum |
| Weight (Approximate) | 1.01 lb |
| Maximum Fan Diameter | 2.36" |
| Fan Width | 2.36" |
| Fan Depth | 0.98" |
| Height | 4.4" |
| Fan Height | 2.36" |
| Width | 3.2" |
| Depth | 2.6" |
| Interfaces/Ports | |
| Connectors |
|
| Fan Information | |
| Fan Life | 8.0 Year |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Maximum Airflow | 49.32 CFM |
| Maximum Air Pressure | 21.5mmH2O |
| Fan Speed (Max) | 8500 rpm |
| Noise Levels (A-Weighted) | 54.3 dB(A) |
| General Information | |
| Brand Name | Dynatron |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Product Type | Cooling Fan/Heatsink |
| Product Name | N11 Cooling Fan/Heatsink |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | N11 |
| Product Model | N11 |
| Heatsink Information | |
| Compatible Intel Socket |
|
