DYNATRON

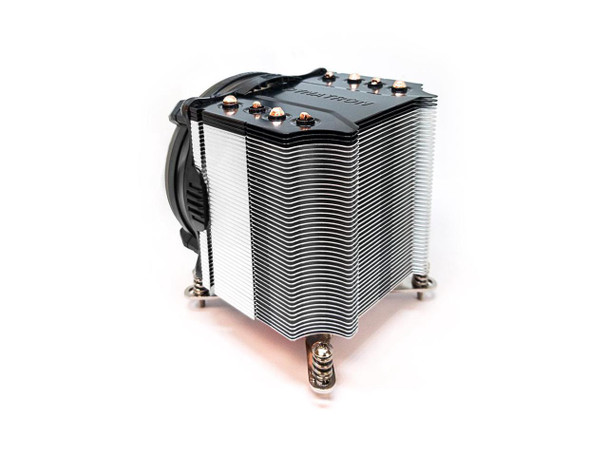

Dynatron 258318 Fan Q6 3u Active Cooler For Intel Lga1700 Brown Box
(No reviews yet)
Write a Review
- SKU:
- 18497600
- MPN:
- 258318
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/18/2025 10:29:38 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $54.04 each 54.04 |
| Buy 3 or above | and pay only $50.36 each 50.36 |
- Stock Update:
- 12/18/2025 10:29:38 PM PST
Description
This item is brand-new, factory sealed.
Q6Recommend forIntel Alder Lake S Processor, Socket LGA 1700, Low-Noise 92x25mm PWM Fan, H.C.C.(Heatpipes Contact CPU)Technology, Active CPU Cooler for 3UUp and Workstation, Support 150 Watts CPU Power Heat Dissipation.CPU Support
IntelCPU Socket
LGA 1700Solution
3U and Up, WorkstationMaterial
Aluminum Fins, 4x Heat Pipes with H.C.C. TechnologyFan Dimension
92 x 25 mmSpeed
At Duty Cycle 0-20%: 1600+/- 200 RPM
At Duty Cycle 50%: 2850+/-10% RPM
At Duty Cycle 100%: 6000 +/-10% RPMRated Voltage
12VBearing
2 Ball BearingPower
At Duty Cycle 0-20%:0.72 W
At Duty Cycle 50%: 1.48 W
At Duty Cycle 100%: 9.60 WAir Flow
At Duty Cycle 0-20%: 21.45 CFM
At Duty Cycle 50%: 48.83 CFM
At Duty Cycle 100%: 107.25 CFMNoise Level
At Duty Cycle 0-20%: 16.00 dBA
At Duty Cycle 50%: 33.20 dBA
At Duty Cycle 100%: 50.40 dBAAir Pressure
At Duty Cycle 0-20%: 0.68 mm-H2O
At Duty Cycle 50%: 5.34 mm-H2O
At Duty Cycle 100%: 17.10 mm-H2OLead Wire Pin Out
Pin Number 1- Black(-)
Pin Number 2- Yellow(+)
Pin Number 3- Green(Tachometer/ Signal Output)
Pin Number 4- Blue (PWM)Item Dimension (L"xW"xH")
6 x 6 x 6
Weight
2 lbs
Warranty Information
1 Year
Features
Application/Usage:
China
Processor
CPU
Workstation
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material | Aluminum |
| Weight (Approximate) | 1.19 lb |
| Height | 3.6" |
| Width | 3.6" |
| Depth | 4.3" |
| Fan Information | |
| Fan Speed (Min) | 1600 rpm |
| Fan Life | 8.0 Year |
| Minimum Airflow | 160.5 gal/min |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Maximum Airflow | 802.3 gal/min |
| Maximum Air Pressure | 17.1mmH2O |
| Fan Speed (Max) | 6000 rpm |
| Noise Levels (A-Weighted) | 50.4 dB(A) |
| General Information | |
| Brand Name | Dynatron |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Product Type | Cooling Fan/Heatsink |
| Product Name | Q6 Cooling Fan/Heatsink |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | Q6 |
| Product Model | Q6 |
| Heatsink Information | |
| Compatible Intel Socket |
|
| Number of Heat Pipes | 4 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Dynatron 258318 Fan Q6 3u Active Cooler For Intel Lga1700 Brown Box
$59.24
