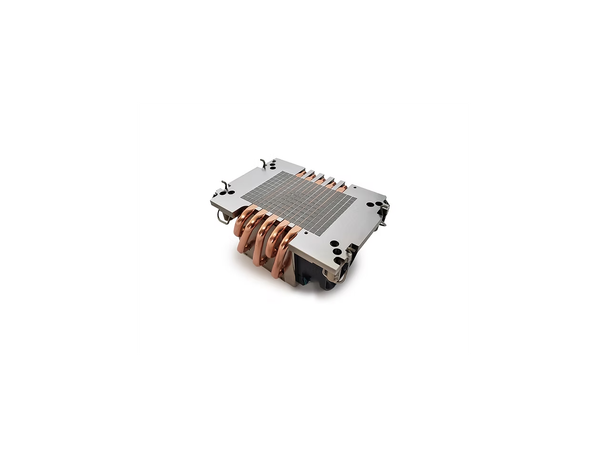

Dynatron S5R1 Cooling Fan

This item is brand-new, factory sealed.

S5R1
_______________________________
CPU SUPPORT
Intel Sapphire Rapids Processor
CPU SOCKET
Intel Socket
FCLGA 4677
APPLICATION
2U
MAXIMUM POWER
350 W
_______________________________
Note:
Dynatron S2, S3, S4, S5, S5R1, S6, and S7 each come with the E1A and E1B Package Carrier. The E1C Package Carrier is not included but is available upon request.
To find out which Package Carrier corresponds to your processor, please visit the official Intel link for more information.CPU Support
IntelCPU Socket
FCLGA 4677Solution
2U Server and UpMaterial
5 Heatpipes with Aluminum Fin Base and Aluminum Fin StackFan Dimension
60 x 60 x 25 mmSpeed
At Duty Cycle 0-20%: 2300+/- 200 RPM
At Duty Cycle 50%: 5400+/- 10% RPM
At Duty Cycle 100%: 11000+/-10% RPMRated Voltage
12VBearing
Double BallPower
At Duty Cycle 0-20%: 0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18.0 WAir Flow
At Duty Cycle 0-20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFMNoise Level
At Duty Cycle 0-20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBAAir Pressure
At Duty Cycle 0-20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O
At Duty Cycle 100%: 28.8 mm-H2OLead Wire Pin Out
Pin Number1-Black(-)
Pin Number2- Yellow(+)
Pin Number3- Green(Tachometer/ Signal Output)
Pin Number4- Blue (PWM)Thermal Grease
Shin-Etsu 7762 Pre-printedItem Dimension (L"xW"xH")
NA

Weight
1.26 lbs

Warranty Information
1 year

Package Contents:

• S5R1 Cooling Fan
• PHM Package Carrier
