DYNATRON

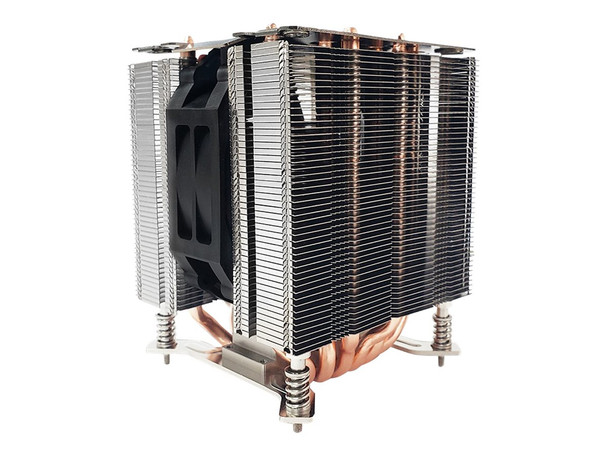

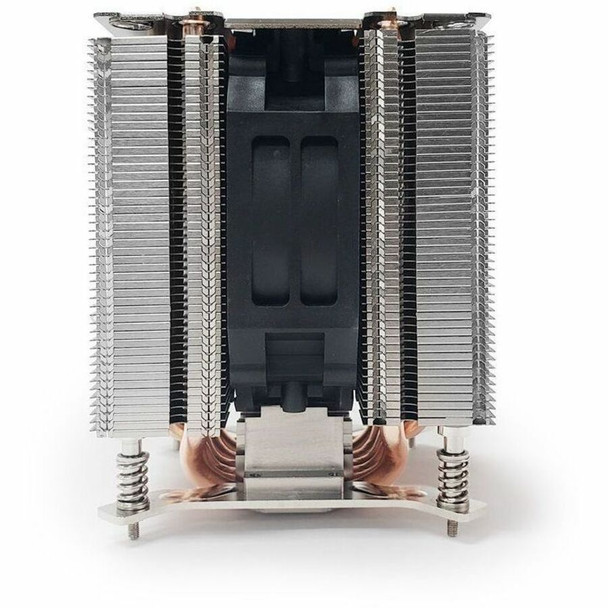

Dynatron Q11 Cooling Fan/Heatsink Q11
- SKU:
- 20156798
- MPN:
- q11
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/13/2026 10:39:30 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $62.68 each 62.68 |
| Buy 3 | and pay only $58.49 each 58.49 |
| Buy 4 - 9 | and pay only $57.40 each 57.4 |
| Buy 10 or above | and pay only $55.65 each 55.65 |
- Stock Update:
- 04/13/2026 10:39:30 PM PST
Description
This item is brand-new, factory sealed.
Q11_______________________________
CPU SUPPORT
Intel
CPU SOCKET
Intel Socket
LGA1851/1700
APPLICATION
4U
MAXIMUM POWER
170 WCPU Support
IntelCPU Socket
Socket LGA 1700Material
Heatpipes with Aluminum Base and Aluminum Fin StackSolution
4U Server and UpFan Dimension
103 x 103 x 30 mmRated Voltage
12VBearing
2 Ball BearingSpeed
At Duty Cycle 0-20%: 800+/- 200 RPM
At Duty Cycle 50%: 1300+/- 10% RPM
At Duty Cycle 100%: 1800 +/- 10% RPMPower
At Duty Cycle 0-20%: 0.3 W
At Duty Cycle 50%: 0.48 W
At Duty Cycle 100%: 0.96 WAir Flow
At Duty Cycle 0-20%: 14.88 CFM
At Duty Cycle 50%: 25.26 CFM
At Duty Cycle 100%: 35.03 CFMAir Pressure
At Duty Cycle 0-20%: 0.44 mm-H2O
At Duty Cycle 50%: 1.16 mm-H2O
At Duty Cycle 100%: 2.06 mm-H2OAcoustical Noise
At Duty Cycle 0-20%: 10.8 dBA
At Duty Cycle 50%: 15.2 dBA
At Duty Cycle 100%: 21.3 dBALead Wir Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)Item Dimension (L"xW"xH")
21 x 13 x 13
Weight
26 lbs
Warranty Information
1 year
Features
Application/Usage:
Processor
CPU
Specs
| Physical Characteristics | |
| Product Material | Aluminum |
| Weight (Approximate) | 1.57 lb |
| Maximum Fan Diameter | 4.06" |
| Fan Width | 4.06" |
| Fan Depth | 1.18" |
| Height | 3.7" |
| Fan Height | 4.06" |
| Width | 3.7" |
| Depth | 5.1" |
| Fan Information | |
| Fan Speed (Min) | 800 rpm |
| Minimum Airflow | 14.88 CFM |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Maximum Airflow | 35.03 CFM |
| Maximum Air Pressure | 2.06mmH2O |
| Fan Speed (Max) | 1800 rpm |
| Noise Levels (A-Weighted) | 21.3 dB(A) |
| General Information | |
| Brand Name | Dynatron |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Product Type | Cooling Fan/Heatsink |
| Product Name | Q11 Cooling Fan/Heatsink |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | Q11 |
| Product Model | Q11 |
| Heatsink Information | |
| Compatible Intel Socket |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Dynatron Q11 Cooling Fan/Heatsink Q11
$68.41
