DYNATRON
Dynatron S5R1 Cooling Fan
- SKU:
- 20163597
- MPN:
- s5_44
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/11/2026 08:39:32 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $64.84 each 64.84 |
| Buy 3 | and pay only $60.75 each 60.75 |
| Buy 4 - 9 | and pay only $59.63 each 59.63 |
| Buy 10 or above | and pay only $57.85 each 57.85 |
- Stock Update:
- 04/11/2026 08:39:32 PM PST
Description
This item is brand-new, factory sealed.

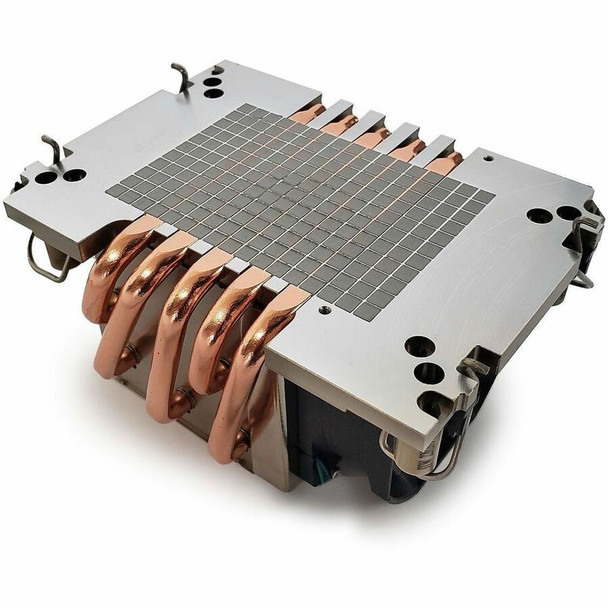

Dynatron S5 Sapphire Rapids Aluminum Fin Stack, Copper Heatpipes, Haetsink and PWM Side Blow Fan, 300W TDP- Product Type=Processor cooler Package Content=E1B package carrier Compatibility=LGA4677 Socket
- Product Dimensions: 4 x 3 x 3 inches
- Item Weight: 1.21 pounds
Product Type=Processor cooler Package Content=E1B package carrier Compatibility=LGA4677 Socket Heatsink Material=Heatpipes with aluminum fin base and aluminum fin stack Fan Diameter=80 mm Fan Height=0.98 in Fan Bearing=Dual ball bearing Rotation Speed=2300-11000 rpm Air Flow=11.91-58.31 cfm Noise Level=25.8 - 59.8 dBA Power Connector=4-pin fan connector Rated Voltage=12 V Features=Pulse-width modulation (PWM) support, Thermal Grease Shin-Etsu 7762 pre-printed, TDP up to 350W Height (Rack Units)=2U Dimensions (WxDxH)=4.6 in x 3.2 in x 2.6 in Weight=14.99 oz Product Type : Processor cooler Package Content : E1B package carrier Height (Rack Units) : 2U Width : 4.6 in Depth : 3.2 in Height : 2.6 in Weight : 14.99 oz Compatible With : LGA4677 Socket Heatsink Material : Heatpipes with aluminum fin base and aluminum fin stack Fan Diameter : 80 mm Fan Height : 0.98 in Fan Bearing : Dual ball bearing Rotation Speed : 2300-11000 rpm Air Flow : 11.91-58.31 cfm Air Pressure : 1.48-28.8 mm Noise Level : 25.8 - 59.8 dBA Noise & Performance Details : 25.8 dBA / 11.91 cfm at 2300 rpm 44.4 dBA / 28.38 cfm at 5400 rpm 59.8 dBA / 58.31 cfm at 11000 rpm Power Connector : 4-pin fan connector Rated Voltage : 12 V Power Consumption : 0.84-18 W Features : Pulse-width modulation (PWM) support, Thermal Grease Shin-Etsu 7762 pre-printed, TDP up to 350W Mounting Kit : Included Compliant Standards : RoHS
Package Contents:
- S5R1 Cooling Fan
- PHM Package Carrier
Features
- S5R1 Cooling Fan
- PHM Package Carrier
Application/Usage:
Server
Processor
CPU
Features:
Dissipates the Heat
Compatibility:
Intel Sapphire Rapids Proessors
Specs
| Physical Characteristics | |
| Product Material | Aluminum |
| Weight (Approximate) | 1.04 lb |
| Maximum Fan Diameter | 2.36" |
| Fan Width | 2.36" |
| Fan Depth | 0.98" |
| Height | 4.6" |
| Fan Height | 2.36" |
| Width | 3.2" |
| Depth | 2.6" |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Maximum Airflow | 58.31 CFM |
| Maximum Air Pressure | 28.8mmH2O |
| Fan Speed (Max) | 11000 rpm |
| Noise Levels (A-Weighted) | 59.8 dB(A) |
| General Information | |
| Brand Name | Dynatron |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Product Type | Cooling Fan |
| Product Name | S5R1 Cooling Fan |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | S5R1 |
| Product Model | S5R1 |
| Heatsink Information | |
| Cooler Type | Air |
| Compatible Intel Socket | LGA-4677 |
| Number of Heat Pipes | 5 |
