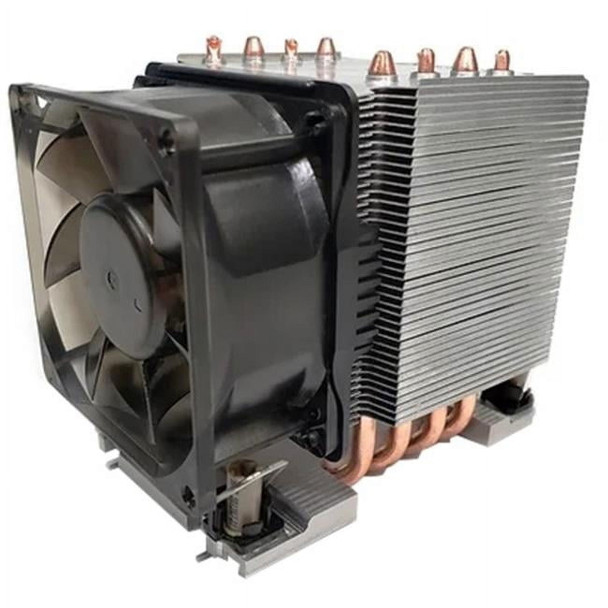

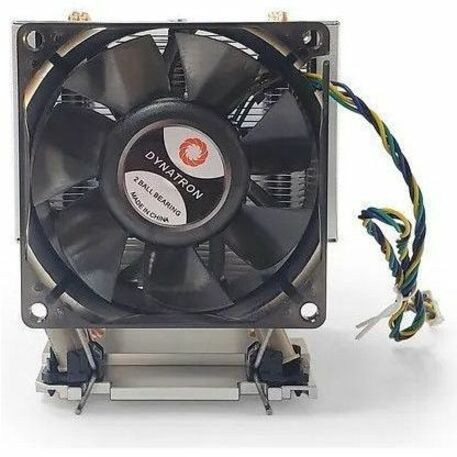

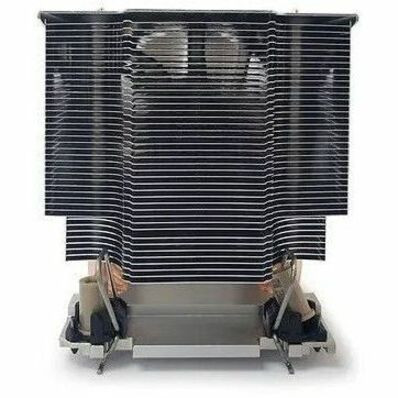

Dynatron S6 Cooling Fan

This item is brand-new, factory sealed.

S6
_______________________________
CPU SUPPORT
Intel
CPU SOCKET
LGA4677
APPLICATION
3U, Workstations
MAXIMUM POWER
350 W
_______________________________
Note:
Dynatron S2, S3, S4, S5, S5R1, S6, and S7 each come with the E1A and E1B Package Carrier. The E1C Package Carrier is not included but is available upon request.CPU Support
IntelCPU Socket
FCLGA 4677Screw Type
Number 8-32Installation Torque
8 in-lbSolution
3U Server and UpMaterial
Aluminum Stacked-Fin with Heat Pipes directly contact CPUFan Dimension
80 x 80 x 38 mmSpeed
At Duty Cycle 0-20%: 1300+/- 200 RPM
At Duty Cycle 50%: 2450+/- 10% RPM
At Duty Cycle 100%: 4500+/-10% RPMRated Voltage
12VBearing
Double BallPower
At Duty Cycle 0-20%: 1.20 W
At Duty Cycle 50%: 2.64 W
At Duty Cycle 100%: 9.00 WAir Flow
At Duty Cycle 0-20%: 22.23 CFM
At Duty Cycle 50%: 41.90 CFM
At Duty Cycle 100%: 76.95 CFMNoise Level
At Duty Cycle 0-20%: 23.95 dBA
At Duty Cycle 50%: 37.71 dBA
At Duty Cycle 100%: 50.91 dBAAir Pressure
At Duty Cycle 0-20%: 1.068 mm-H2O
At Duty Cycle 50%: 3.794 mm-H2O
At Duty Cycle 100%: 12.798 mm-H2OLead Wire Pin Out
Pin Number1-Black(-)
Pin Number2- Yellow(+)
Pin Number3- Green(Tachometer/ Signal Output)
Pin Number4- Blue (PWM)Thermal Grease
Shin-Etsu 7762 or EquivalentLife - Continuous operating under normal temperature (40 ^oC or 104 ^oF)
70,000 HoursItem Dimension (L"xW"xH")
6 x 5 x 6

Weight
1.9 lbs

Warranty Information
1 Year
