Eaton

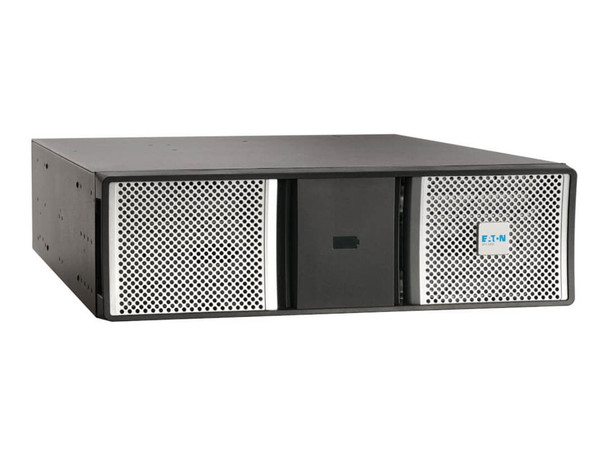

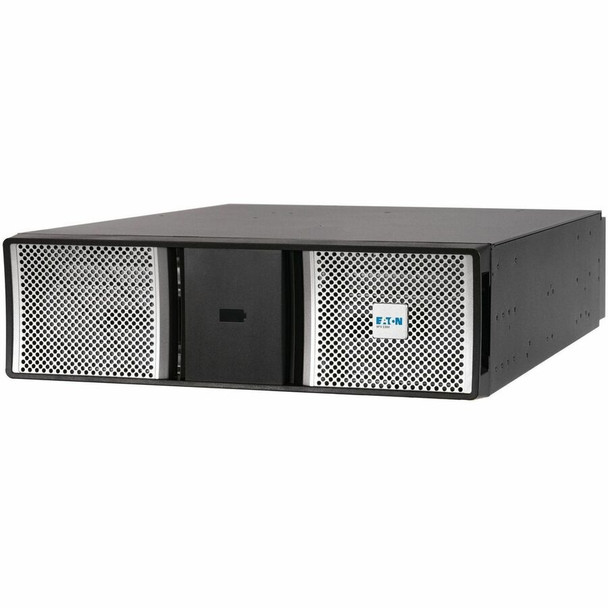

Eaton 180V Extended Battery Module [EBM] for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower (9pxebm180rtg2)
- SKU:
- 21248714
- MPN:
- 9pxebm180rtg2
- Availability:
- Usually ships in 2-3 business days. In stock at our NJ warehouse.
- Shipping:
- $342.11 (Fixed Shipping Cost)
- Stock Update:
- 04/11/2026 11:59:59 PM PST
- Stock Update:
- 04/11/2026 11:59:59 PM PST
Description
This item is brand-new, factory sealed.
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

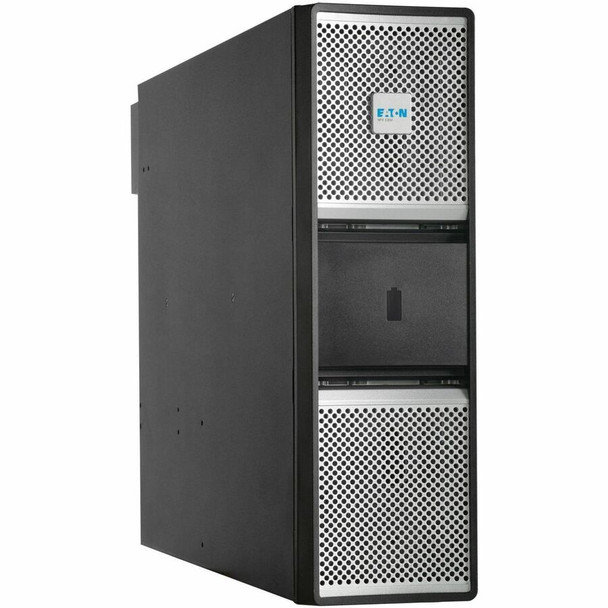

Supports 3U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
Package Contents:
- 9PXEBM180RTG2 Battery Unit
- External Battery Cable, 1 ft. (0.3 m)
- Tower Support Stands
- Rack-mounting Hardware
- Quick Start Guide
Features
- 9PXEBM180RTG2 Battery Unit
- External Battery Cable, 1 ft. (0.3 m)
- Tower Support Stands
- Rack-mounting Hardware
- Quick Start Guide
Certifications & Standards:
- cUL Listed
- EN 62040-2
- NOM (Mexico)
- FCC Part 15 Class A (USA)
- FCC (USA)
- CE (Europe)
Energy Star:
Yes
Compatibility:
Eaton's 9PX G2 UPS Systems:
- 9PX3K3UG2
- 9PX3K3UNP1G2
- 9PX3K3UNP2G2
- 9PX3K3UNTF5G2
- 9PX5KG2
- 9PX5KP1G2
- 9PX5KP2G2
- 9PX5KTF5G2
- 9PX6KG2
- 9PX6KIECG2
- 9PX6KP1G2
- 9PX6KP2G2
- 9PX6KTF5G2
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Philippines
Specs
| Physical Characteristics | |
| Weight (Approximate) | 150 lb |
| Height | 5.1" |
| Width | 17.3" |
| Depth | 25" |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Supports 3U Rack or Tower Installation This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer. |
| Product Type | Battery Unit |
| Product Name | 9PXEBM180RTG2 Battery Unit |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PXEBM180RTG2 |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | Proprietary Battery Size |
| Output Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated/User Replaceable |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
