Eaton
Eaton Tripp Lite Series 180V Extended Battery Module [EBM] for SmartOnline UPS Systems, 3U Rack/Tower, TAA (bp180rt3utaa)
- SKU:
- 21473243
- MPN:
- bp180rt3utaa
- Availability:
- Usually ships in 2-3 business days. In stock at our CA warehouse.
- Shipping:
- $342.11 (Fixed Shipping Cost)
- Stock Update:
- 04/12/2026 11:57:57 PM PST
- Stock Update:
- 04/12/2026 11:57:57 PM PST
Description
This item is brand-new, factory sealed.
Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other network applications requiring TAA compliance.
Features
Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The valve-regulated lead-acid (VRLA) BP180RT3UTAA offers extended battery runtime when used in conjunction with the SU6000RT3UTAA SmartOnline UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options

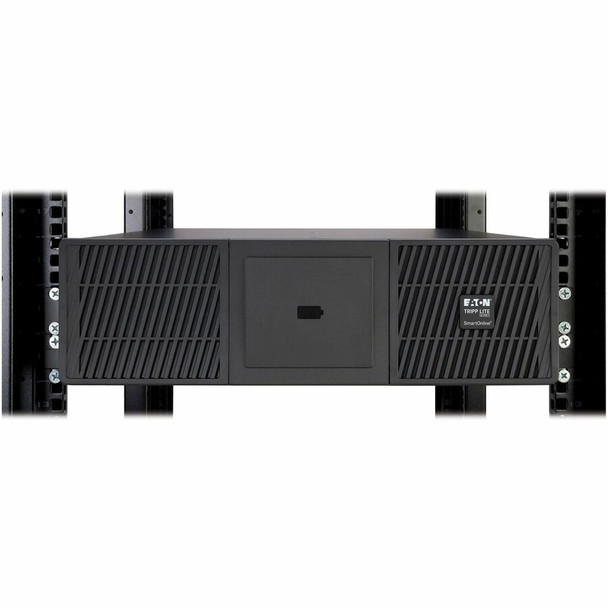

You can mount the hot-swappable BP180RT3UTAA in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands.
TAA-Compliant for GSA Schedule
Purchases The BP180RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Contents:
- BP180RT3UTAA Battery Unit
- External Battery Cable
- Rack-Mounting Hardware
- Tower Support Stands
- Quick Start Guide
Features
- BP180RT3UTAA Battery Unit
- External Battery Cable
- Rack-Mounting Hardware
- Tower Support Stands
- Quick Start Guide
Certifications & Standards:
- UL 1778
- cTUVus
- CE
- FCC
TAA Compliant:
Yes
Energy Star:
Yes
Compatibility:
Tripp Lite SU6000RT3UTAA SmartOnline UPS
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Weight (Approximate) | 150 lb |
| Height | 5.1" |
| Width | 17.3" |
| Depth | 25.4" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other network applications requiring TAA compliance. Features Backup Battery Module Gives Your Compatible UPS System Extended Runtime The valve-regulated lead-acid (VRLA) BP180RT3UTAA offers extended battery runtime when used in conjunction with the SU6000RT3UTAA SmartOnline UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Versatile Installation Options You can mount the hot-swappable BP180RT3UTAA in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. TAA-Compliant for GSA Schedule Purchases The BP180RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type | Battery Unit |
| Product Name | BP180RT3UTAA Battery Unit |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BP180RT3UTAA |
| Product Model | BP180RT3UTAA |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | Proprietary Battery Size |
| Output Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated/User Replaceable |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
