Eaton Tripp Lite Series 3-Port DisplayPort to HDMI Splitter/Extender Kit over Cat6, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft. [70 m], TAA (b156e-003-h8k-k)
- SKU:
- 20911446
- MPN:
- b156e-003-h8k-k
- Availability:
- Out of stock
- Stock Update:
- 01/30/2026 04:49:59 PM PST
- Stock Update:
- 01/30/2026 04:49:59 PM PST
Description
This item is brand-new, factory sealed.
Splits and extends a 4K DisplayPort audio/video signal to three separate HDMI monitors up to 230 ft. away with zero latency.
Features
Connect up to 3 HDMI Monitors to Your DisplayPort Computer up to 230 ft. Away
This multi-display splitter connects three 4K or 8K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156E003-H8K-K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect three monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across all monitors or combine all monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.
Transmits 8K Video Using Cat6 Cabling
The B156E-003-H8K-K supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz per monitor with 12-bit Deep Color and 2-channel LPCM audio in extended desktop and mirror modes. In video wall mode, it supports expanded resolutions, including 11520 x 2160 at 60 Hz (3x1 vertical configuration) and 3840 x 6480 at 60 Hz (1x3 horizontal configuration). The B156E-003-H8K-K is compliant with HDMI 2.0 standards and is backward compatible with previous versions. Note: When in video wall mode, it is recommended to use monitors of the same brand and model to ensure full functionality
Supports HDR and 4:4:4 for the Sharpest Video Possible
The B156E-003-H8K-K supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no complications. This extender kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the remote receivers over Cat6 cable. LEDs on both the transmitter and receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of bulky power bricks and gives you the freedom to place the receivers away from an AC outlet.

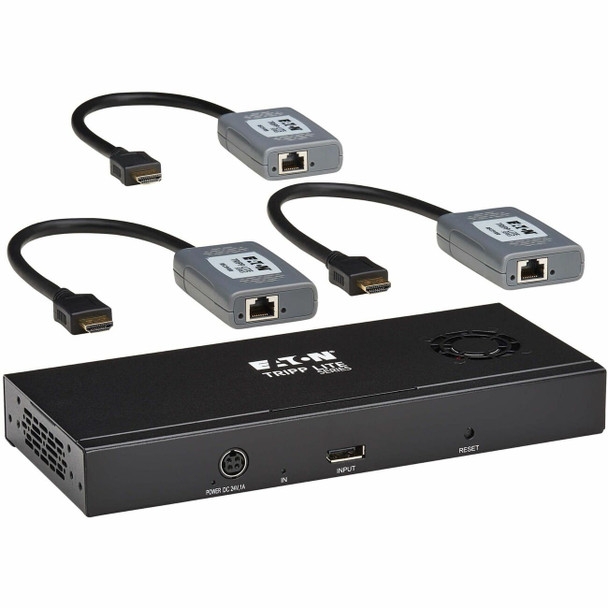

Package Contents:
- B156E-003-H8K-K 3-Port DisplayPort to HDMI MultiMonitor Splitter
- 3 x HDMI pigtail receivers
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord
- 4 x International plug adapters (North America, Europe, U.K., Australia)
- Mounting hardware
Features
- B156E-003-H8K-K 3-Port DisplayPort to HDMI MultiMonitor Splitter
- 3 x HDMI pigtail receivers
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord
- 4 x International plug adapters (North America, Europe, U.K., Australia)
- Mounting hardware
TAA Compliant:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Weight (Approximate) | <p>Receiver Unit Weight (lbs.) 1.058</p><p>Transmitter Unit Weight (lbs.) 1.433</p><p>Unit Weight (lbs.) 2.5</p> |
| Dimensions | <p>Receiver Unit Dimensions (hwd / in.) 2.95 x 1.85 x 0.73</p><p>Transmitter Unit Dimensions (hwd / in.) 9.25 x 3.94 x 1.17</p><p>Unit Dimensions (hwd / in.) 1.169 x 9.252 x 3.937</p> |
| Material Details | <p>Metal Enclosure</p><p>ABS Plastic</p> |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Splits and extends a 4K DisplayPort audio/video signal to three separate HDMI monitors up to 230 ft. away with zero latency. Features Connect up to 3 HDMI Monitors to Your DisplayPort Computer up to 230 ft. Away This multi-display splitter connects three 4K or 8K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156E003-H8K-K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect three monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across all monitors or combine all monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal. Transmits 8K Video Using Cat6 Cabling The B156E-003-H8K-K supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz per monitor with 12-bit Deep Color and 2-channel LPCM audio in extended desktop and mirror modes. In video wall mode, it supports expanded resolutions, including 11520 x 2160 at 60 Hz (3x1 vertical configuration) and 3840 x 6480 at 60 Hz (1x3 horizontal configuration). The B156E-003-H8K-K is compliant with HDMI 2.0 standards and is backward compatible with previous versions. Note: When in video wall mode, it is recommended to use monitors of the same brand and model to ensure full functionality Supports HDR and 4:4:4 for the Sharpest Video Possible The B156E-003-H8K-K supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no complications. This extender kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks Power over Cable (PoC) technology powers the remote receivers over Cat6 cable. LEDs on both the transmitter and receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of bulky power bricks and gives you the freedom to place the receivers away from an AC outlet. |
| Product Type | Signal Splitter/Extender Kit |
| Product Name | B156E-003-H8K-K 3-Port DisplayPort to HDMI MultiMonitor Splitter |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B156E-003-H8K-K |
| Product Model | B156E-003-H8K-K |
| Technical Information | |
| Recommended Usage |
|
| Environmental Conditions | |
| Maximum Storage Temperature | 122°F (50°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
