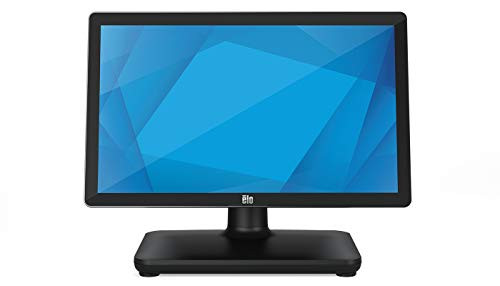

Elotouch Electronics 246113 22 Inch Touchscreen POS Computer Core i3

This item is brand-new, factory sealed.

EloPOS System

Modern. Modular. Made for Retail.

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intels 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use.


Interactive Points of Sale

The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.


Connections. Connections. Connections.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.


Configure Your Solution

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact. Enclosure Color
Black Touch Technology and Capacity
PCAP (TouchPro Projected Capacitive) - 10 Touch Processor
i3 Models: Intel Core^TM i3-8100T Processor (6M Smart Cache, 3.10 GHz) Chipset
i3 Models: Intel H310 Express Graphics
i3 Models: Intel UHD Graphics 630 BIOS
AMI Memory (RAM)
i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
NOTE: Check brand of the memory included in your unit before purchasing the memory kit. Storage
128GB M.2 SATA SSD, 80 TBW
Optional M.2 PCIe (NVMe) SSD for select models
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. TPM
2.0 Active Management Technology (AMT)
i3 Models: N/A Diagonal Size
21.5 diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
18.74" x 10.54" / 476.1 mm x 267.8 mm
Resolution
1920 x 1080 at 60Hz
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
PCAP: 212.5 nits
Response Time-total (typical)
14 msec
Contrast Ratio
1000:1
Viewing Angle
Horizontal: +/- 89^o or 178^o total / Vertical: +/- 89^o or 178^o total USB Ports
3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head) Powered USB
1 x 24V on I/O
2 x 12V on I/O Ethernet Port
1 x LAN RJ45 (Gigabit) Serial Ports
2 x RJ45 Cash Drawer Port
12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default selectable by internal switch) Wireless
Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz Bluetooth
Bluetooth 5.0 Additional Video Out
1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port) Audio Ports
1 x 3.5 mm headset jack
