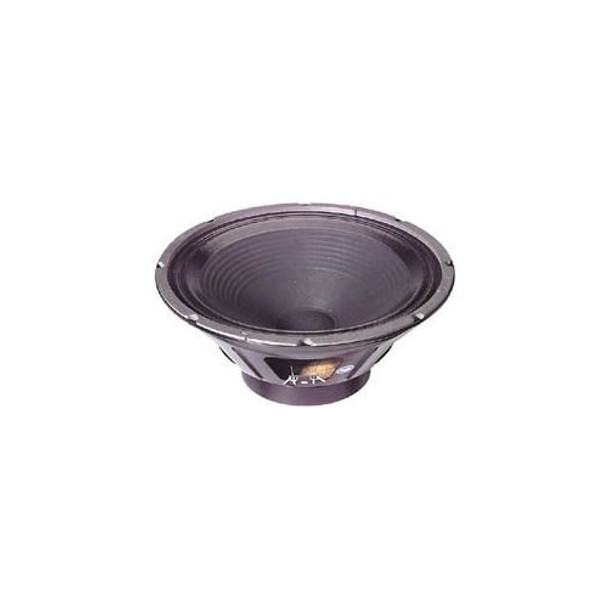

Eminence Legend LEGEND V128 Speaker - 120 W RMS
(No reviews yet)
Write a Review
- SKU:
- 18065657
- MPN:
- legendv128
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/04/2025 08:23:23 PM PST
- Stock Update:
- 12/04/2025 08:23:23 PM PST
Description
This item is brand-new, factory sealed.
This table charts the specifications for the LEGEND V128 speaker* Nominal Basket Diameter: 12-in , 305 mm.
* Nominal Impedance: 8 Ohms.
* Power Rating:
* Watts: 120 W.
* Music Program: N/A.
* Resonance: 89 Hz.
* Usable Frequency Range: 80 Hz - 5 kHz.
* Sensitivity: 100.9 dB.
* Magnet Weight: 38 oz..
* Gap Height: 0.312-in , 7.9 mm.
* Voice Coil Diameter: 1.75-in , 44 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 89 Hz.
* DC Resistance (Re): 6.37 Ohms.
* Coil Inductance (Le): 0.64m H.
* Mechanical Q (Qms): 11.98.
* Electromagnetic Q (Qes): 0.83.
* Total Q (Qts): 0.77.
* Compliance Equivalent Volume (Vas): 39.4 liters / 1.39 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 41.6 cc.
* Mechanical Compliance of Suspension (Cms): 0.1 mm/N.
* BL Product (BL): 11.5 T-M.
* Diaphragm Mass Inc. Airload (MMs): 30 grams.
* Efficiency Bandwidth Product (EBP): 107.
* Maximum Linear Excursion (Xmax): 0.8 mm.
* Surface Area of Cone (Sd): 519.5 cm2.
* Maximum Mechanical Limit (Xlim): N/A.
-----------------------------------
Recommended Enclosure Volume;
* Sealed: Acceptable.
* Vented: Acceptable.
* Driver Volume Displaced: 0.071 cu.ft. / 2 liters.
* Overall Diameter: 12.03-in , 305.6 mm.
* Baffle Hole Diameter: 11.07-in , 281.2 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: N/A.
* Mounting Holes Diameter: 0.25-in , 6.4mm.
* Mounting Holes B.C.D.: 11.59-in , 294.4mm.
* Depth: 5.1-in , 129.5 mm.
* Net Weight: 8.1 lbs, 3.67 kg.
* Shipping Weight: 10.1 lbs, 4.58 kgs.
* Materials of Construction.
* Coil Construction: Copper voice coil.
* Coil Former: Polyimide former.
* Magnet Composition: Ferrite magnet.
* Core Details: Non-vented core.
-----------------------------------.
* Basket Materials: Pressed steel basket.
* Cone Composition: Paper cone.
* Cone Edge Composition: Paper cone edge.
* Dust Cap Composition: Solid composition felt dust cap.
Features
Additional Information:
United States
Driver Size: 12"
Driver Material: Paper
Country of Origin:
United States
Specs
| Physical Characteristics | |
| Product Material |
|
| Speaker Depth | 6.06" |
| Weight (Approximate) | 8.10 lb |
| Speaker Diameter | 12.03" |
| Depth | 5.10" |
| Warranty | |
| Limited Warranty | 7 Year |
| General Information | |
| Brand Name | Eminence |
| Manufacturer Website Address | http://www.eminence.com |
| Marketing Information | The tone that started it all. This long-standing line of guitar speakers didn't get its name by accident. Known for their power, reliability and value, these rock-solid speakers have backed legendary players in legendary venues. Look inside some of the best sounding amps and you may see a Legend that was factory-installed or put in as a replacement. Either way you'll know someone knew what tone they wanted and how to get it. If you want to sound like a legend, play one. |
| Product Type | Speaker |
| Product Name | LEGEND V128 Speaker |
| Manufacturer | Eminence Speaker, LLC |
| Manufacturer Part Number | LEGENDV128 |
| Product Model | LEGEND V128 |
| Product Line | Legend |
| Technical Information | |
| Minimum Frequency Response | 80 Hz |
| Maximum Frequency Response | 5 kHz |
| Sensitivity | 101 dB |
| Application/Usage | Indoor/Outdoor |
| Impedance | 8 Ohm |
| RMS Output Power | 120 W |
