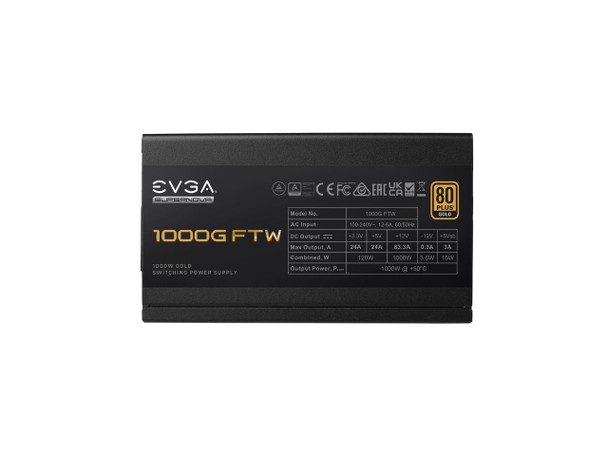

EVGA SuperNOVA 1000W Power Supply (535-5g-1000-k1)

This item is brand-new, factory sealed.

Introducing the EVGA SuperNOVA 1000G FTW - The next-gen power supply designed to meet the needs of today's most powerful PCs. Featuring a half-bridge LLC resonant controller, DC-DC converter, APFC, and 100% Japanese Capacitors, this power supply is extremely stable with low ripple and noise, and 80 Plus Gold-rated for efficiency. The SuperNOVA 1000G FTW is ATX 3.0 compliant and PCIe Gen 5.0-ready, including a native 12VHPWR cable capable of delivering up to 600W output, while supporting up to 235% Total Power Excursion and 300% GPU Power Excursion for PCIe 5.0 graphics cards. An ultra-quiet FDB fan runs completely silent at medium-low loads and temperatures, thanks to EVGA ECO Mode. With a full-suite of protections, and 12VHPWR Smart Thermal Protection, the EVGA SuperNOVA 1000G FTW gives you the peace of mind to push your system to the limits.


FEATURES

ATX 3.0 Compliant & PCIe 5.0 Ready

Supports up to 235% Total Power Excursion

Supports up to 300% GPU Power Excursion

Smart Thermal Protection will shut down PC if the 12VHPWR connector gets too hot

100% Japanese Capacitors ensure long-term reliability

80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

Half-bridge LLC Resonant Controller and DC-DC design leads to extremely tight voltage regulation and very low ripple & noise

Fully Modular to reduce clutter and improve airflow

Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) CABLE LENGTH
ATX Cable
1x 600mm
EPS Cable
2x 700mm
PCIe Cable
2x 700mm, 2x 700mm, 850mm
12VHPWR Cable
1x 700mm
SATA Cable
4x 550mm, 670mm, 790mm
Four-Pin Peripheral Cable
1x 450mm, 570mm, 690mm, 810mm
AC Power
1x 1500mm
Modular Cable Type
Full CONNECTOR QUANTITY
24 Pin ATX
1x 24pin
EPS (CPU)
2x 8pin (4+4)
PCIe
6x 8pin (6+2)
PCIe 12VHPWR
1x 16pin (12+4)
SATA
12x
Four-Pin Peripheral
4x INPUT
Input Voltage
100-240 ACV
AC Input
12-6A
Input Frequency Range
60/50Hz
Efficiency
90% (115VAC) / 92% (220VAC to 240VAC) or Higher Typical OUTPUT
Rail / Max output
+3.3V / 24A / 120W
+5V / 24A / 120W
+12V / 83.3A / 1000W
-12V / 0.3A / 3.6W
+5Vsb / 3A / 15W
Total
1000W ADDITIONAL DETAILS
Operating Temperature
0 to 50^o C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, UKCA, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic BearingItem Dimension (L inchxW inchxH inch)
12 x 10 x 5

Weight
5.00 lb

Warranty Information
3 Years
