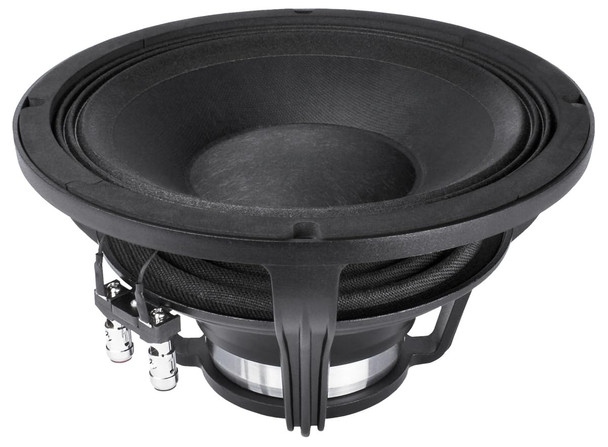

Faital Pro 10FH500-4 10-in Midbass Speaker 4-ohms W/3-in Voice Coil 1000 Watt

This item is brand-new, factory sealed.

* Nominal Diameter 250 mm (10 in)
* Overall Diameter 261 mm (10.28 in)
* Bolt Circle Diameter 246 mm (9.69 in)
* Baffle Cutout Diameter 232 mm (9.13 in)
* Depth 141.3 mm (5.56 in)
* Flange and Gasket Thickness 12.5 mm (0.49 in)
* Net Weight 3.4 kg (7.5 lb)
* Shipping Box: (Single Carton Box) 294 x 290 x 203 mm: (11.6 x 11.4 x 7.8 in)
* Shipping Weight 4 kg (8.8 lb) *
* Nominal Impedance 4 Ohm
* Minimum Impedance 4 Ohm
* AES Power Handling (1) 500 W
* Maximum Power Handling (2) 1000 W
* Sensitivity (1W/1m) 96 dB
* Frequency Range 60hz-4000 Hz
* Voice Coil Diameter 77 mm (3 in)
* Winding Material Al
* Former Material Glass Fiber
* Winding Depth 18 mm (0.71 in)
* Magnetic Gap Depth 10.5 mm (0.41 in)
* Flux Density 1.2 T
* Magnet Neodymium Slug
* Basket Material Aluminum
* NET Air Volume filled by Loudspeaker 1.6 dm-3 (0.057 ft-3)
* Spider Profile 1x constant height waves
* THIELE AND SMALL PARAMETERS
* Fs 60 Hz
* Re 3.3 Ohm
* Qes 0.26
* Qms 6.2
* Qts 0.25
* Vas 24.2 dm-3 (0.85 ft-3)
* Sd 351 cm-2 (54.41 in-2)
* Xmax (4) 7.25 mm
* Xdamage (5) 12.5 mm
* Mms 50.1 g
* Bl 15.5 N/A
* Le 0.64 mH
* Mmd 42.7 g
* Cms 0.14 mm/N
* Rms 3.0 kg/s
* Eta Zero 1.95 %
* EBP 231 Hz *
* PART NUMBER (P/N)
* Push Terminals - 4 Ohm Version 02504043
NOTES:
* (1) 2 Hours Test According to AES 2-1984 Rev. 2003
* (2) Maximum power is defined as 3dB greater than nominal power.
* (3) Treated Polycotton
* (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
* (5) Maximum excursion before permanent damage
*
