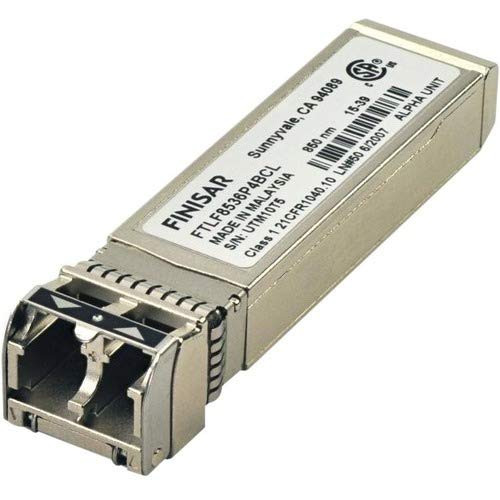

Finisar FTLF8536P4BCL 25.78Gbps 100G-SR4 Multimode SFP+ Transceiver

This item is brand-new, factory sealed.

Form Factor: SFP28

Finisar's FTLF8536P4BCL SFP+ optical transceivers are designed for use in 25 Gb/s data rate over multimode fiber. They are compliant to IEEE 802.3by, SFF-8472 Rev 12.2 and SFF-8402, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.

Key Features

Up to 25.78 Gb/s bi-directional data links

Hot-pluggable SFP+ footprint

Built-in digital diagnostic functions

850nm Oxide VCSEL laser transmitter

Duplex LC connector

RoHS compliant

100m over M5F MMF (50/125?m OM4)

70m over M5E MMF (50/125?m OM3)

20m on MMF (50/125?m OM2)

Metal enclosure, for lower EMI

1.2W maximum power consumption

Single 3.3V power supply

Operating temperature range: 0C to 70C
Distance:
100 mData Rate (max):
25.78 Gb/sProtocol:
25G Ethernet CompliantLow End Case Temperature (^oC):
0High End Case Temperature (^oC):
70Diagnostics:
DigitalTransmitter:
VCSELReceiver:
PINVoltage Supply:
3.3Connector:
LCWavelength:
850nm BandItem Dimension (L"xW"xH")
NA

Weight
1 lb

Warranty Information
1 Year
