Furuno USA
Furuno USA 26TIDLTD20 50/200khzd/t 1kwbrzlo-proxdcr 20 526TIDLTD/20
(No reviews yet)
Write a Review
- SKU:
- 18007805
- MPN:
- 526tid-ltd-20
- Availability:
- Usually ships the same or next business day. In stock at our Fl, GA, PA, WA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/07/2025 03:16:36 AM PST
- Stock Update:
- 12/07/2025 03:16:36 AM PST
Description
This item is brand-new, factory sealed.
Furuno 526TID-LTD20 50/200
20d Tilted Element B164

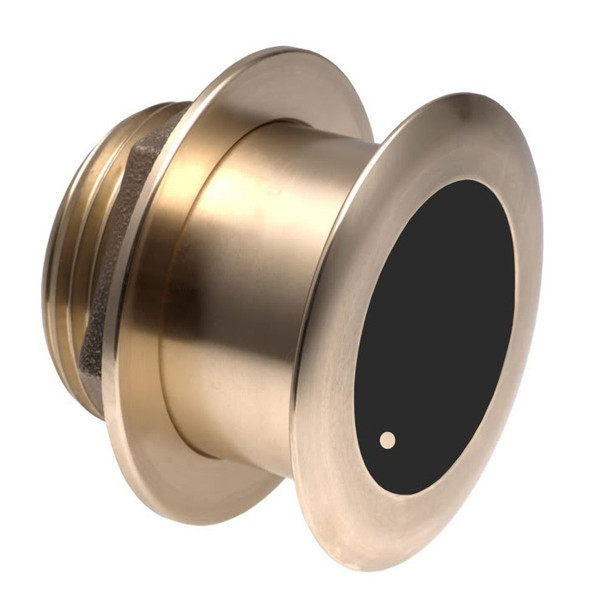

Model: 526TID-LTD20Bronze Thru-Hull, Low Profile Transducer with Temp, 1kW (10-Pin), 20° Tilted Element
Airmar B164 Housing Style Transducer
If a thru-hull flush-style transducer is called for, the Tilted Element 526TID-LTD/20 is right for hulls with a deadrise angle of between 16° and 24°. This transducer compensates for deadrise by angling the element inside the housing.
The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.
Specifications| Beam Angle | 20 and 6 Degrees |
| Housing Type | Bronze |
| Power Rating | 1 kW |
| Frequency | 50 and 200 kHz |
| Install Type | Thru Hull |
| Shipping Info | 12 lbs, 10x8x6 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Furuno USA 26TIDLTD20 50/200khzd/t 1kwbrzlo-proxdcr 20 526TIDLTD/20
$965.86
