GAMDIAS CHIONE M4-240 Cooling Fan/Radiator/Pump - 1 Pack (gd-chione)
- SKU:
- 20994605
- MPN:
- gd-chione_44_1
- Availability:
- Out of stock
- Stock Update:
- 09/20/2025 10:47:32 PM PST
- Stock Update:
- 09/20/2025 10:47:32 PM PST
Description
This item is brand-new, factory sealed.

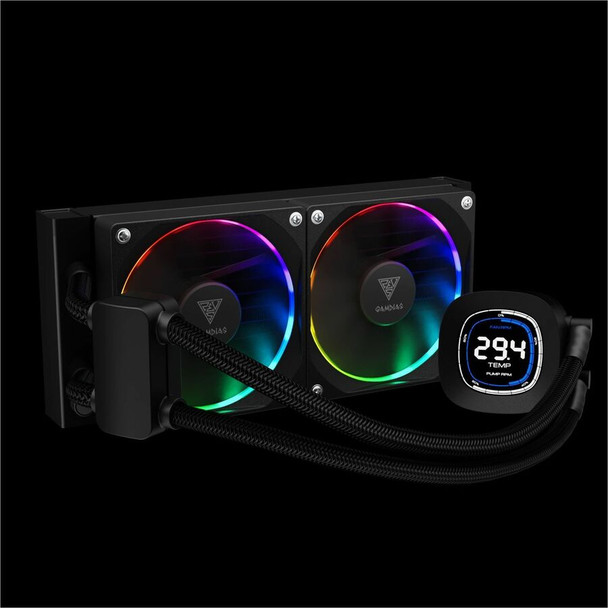

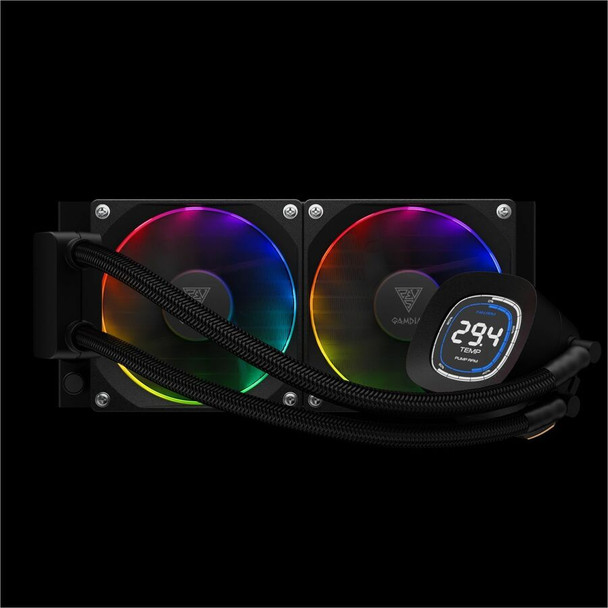

ELITE COOLING POWER
The CHIONE M4-240 liquid cooler delivers powerful cooling for your CPU through its patented in-line PWM pump, a 32mm thick radiator with new fluid routing system, and two 120mm ARGB fans to reach new levels of coolness. It also features a 2.1" LCD screen on the water block that displays CPU temperature, fan speed, and pump speed stats in real-time.

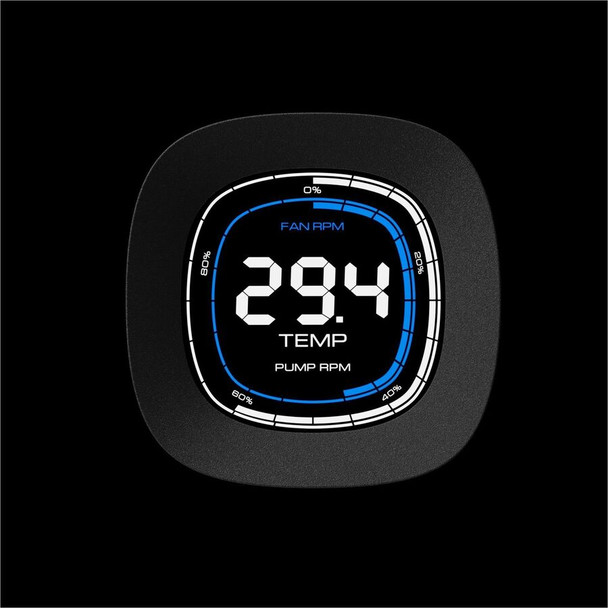

REAL-TIME SYSTEM INFORMATION DISPLAY
The 2.1" LCD screen on the water block displays the CPU temperature, fan speed, and PUMP speed scales to monitor essential system status in real time. The CHIONE CAST LITE software enables full customization of charts and temperature unit displays (°C/°F).
EXCLUSIVE IN-LINE PWM PUMP
The patented in-line pump comes with PWM control, providing stable yet powerful liquid circulation to cool down the CPU temperature efficiently while creating minimal vibrations for a silent and steady operation.
NEXT GENERATION RADIATOR
The 32mm thick radiator features much denser radiator fins for improved cooling performance, the increase in dissipation surface allows the radiator to provide excellent noise-normalized performance.
PERFORM IN STYLE

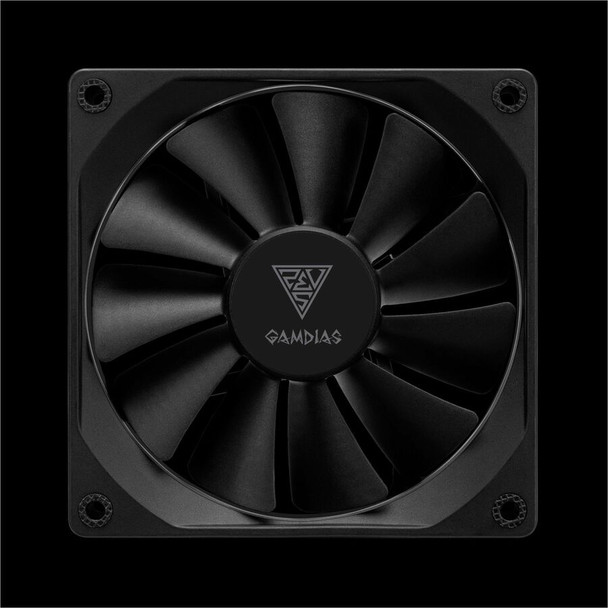

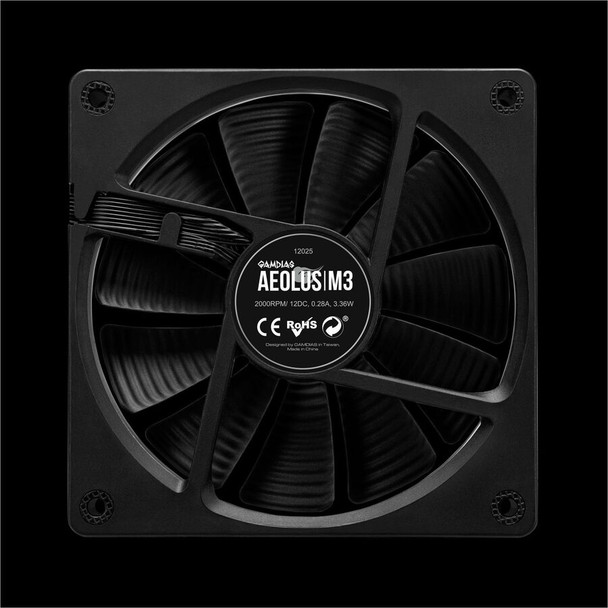

Built with an emphasis on superior airflow performance, the PWM fans operate up to 2000 RPM and provide airflow of up to 69.01 CFM. The fans feature hydraulic bearings for silent operations and fully addressable low-profile ARGB lighting providing a modish look with a long lifespan.
SYNCHRONIZE YOUR SETUP
For stunning and customizable ARGB lighting effects, the CHIONE M4 series requires connection to the motherboard via 3-pin 5V ARGB headers. It's also compatible with the GAMDIAS AEOLUS BOX and mainstream RGB software.

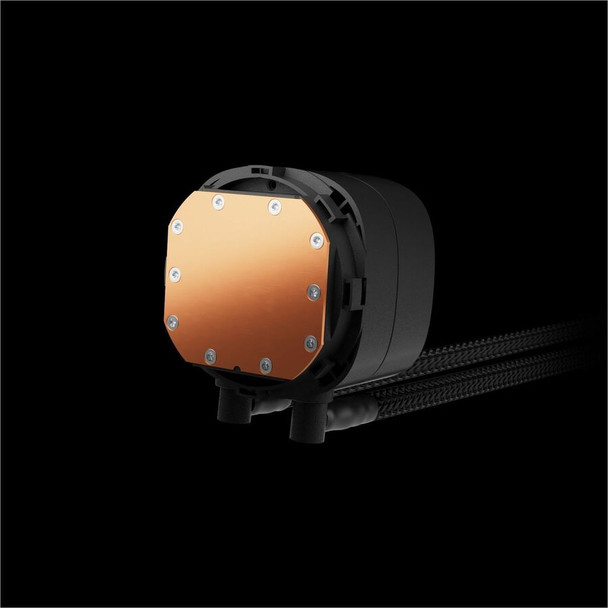

ROTATABLE CPU WATER BLOCK
The water block is rotatable in 360°, allowing hassle-free installation without worrying about aesthetics. Connect the USB cable prior to adjusting the screen's orientation.
REAL-TIME SYSTEM MONITORING
CHIONE CAST LITE software allows you to customize display mode, temperature units, setting up the highest fan and pump speeds, as well as disable the speed scale.
UNIVERSAL COMPATIBILITY
The CHIONE M4 AIO cooler comes with upgraded mounting kits for an easy installation on both the AMD and Intel platforms. (LGA 1700, AM5 ready)
Package Contents:
- CHIONE M4-240 Cooling Fan/Radiator/Pump
- 1 x Thermal Grease
- Mounting Kit
- 1 x GAMDIAS AEOLUS BOX Adapter Cable
Features
- CHIONE M4-240 Cooling Fan/Radiator/Pump
- 1 x Thermal Grease
- Mounting Kit
- 1 x GAMDIAS AEOLUS BOX Adapter Cable
Application/Usage:
Motherboard
Processor
CPU
Country of Origin:
China
Specs
| Physical Characteristics | |
| Maximum Fan Diameter | 4.72" |
| Radiator Material | Aluminum |
| Radiator Depth | 1.26" |
| Fan Width | 4.72" |
| Radiator Width | 4.69" |
| Fan Depth | 0.98" |
| Fan Height | 4.72" |
| Material Details | <ul><li> Tube Material: Teflon</li><li> Base Plate: Material Copper</li></ul> |
| Radiator Height | 10.91" |
| Interfaces/Ports | |
| Connectors |
|
| Fan Information | |
| Fan Speed (Min) | 800 rpm |
| Number of Fans | 2 |
| Fan Bearing Type | Hydraulic Bearing |
| LED Color | ARGB |
| Maximum Airflow | 516.2 gal/min |
| Maximum Air Pressure | 2.37mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Noise Levels (A-Weighted) | 29 dB(A) |
| General Information | |
| Brand Name | GAMDIAS |
| Manufacturer Website Address | http://www.gamdias.com |
| Marketing Information | ELITE COOLING POWER The CHIONE M4-240 liquid cooler delivers powerful cooling for your CPU through its patented in-line PWM pump, a 32mm thick radiator with new fluid routing system, and two 120mm ARGB fans to reach new levels of coolness. It also features a 2.1" LCD screen on the water block that displays CPU temperature, fan speed, and pump speed stats in real-time. REAL-TIME SYSTEM INFORMATION DISPLAY The 2.1" LCD screen on the water block displays the CPU temperature, fan speed, and PUMP speed scales to monitor essential system status in real time. The CHIONE CAST LITE software enables full customization of charts and temperature unit displays (°C/°F). EXCLUSIVE IN-LINE PWM PUMP The patented in-line pump comes with PWM control, providing stable yet powerful liquid circulation to cool down the CPU temperature efficiently while creating minimal vibrations for a silent and steady operation. NEXT GENERATION RADIATOR The 32mm thick radiator features much denser radiator fins for improved cooling performance, the increase in dissipation surface allows the radiator to provide excellent noise-normalized performance. PERFORM IN STYLE Built with an emphasis on superior airflow performance, the PWM fans operate up to 2000 RPM and provide airflow of up to 69.01 CFM. The fans feature hydraulic bearings for silent operations and fully addressable low-profile ARGB lighting providing a modish look with a long lifespan. SYNCHRONIZE YOUR SETUP For stunning and customizable ARGB lighting effects, the CHIONE M4 series requires connection to the motherboard via 3-pin 5V ARGB headers. It's also compatible with the GAMDIAS AEOLUS BOX and mainstream RGB software. ROTATABLE CPU WATER BLOCK The water block is rotatable in 360°, allowing hassle-free installation without worrying about aesthetics. Connect the USB cable prior to adjusting the screen's orientation. REAL-TIME SYSTEM MONITORING CHIONE CAST LITE software allows you to customize display mode, temperature units, setting up the highest fan and pump speeds, as well as disable the speed scale. UNIVERSAL COMPATIBILITY The CHIONE M4 AIO cooler comes with upgraded mounting kits for an easy installation on both the AMD and Intel platforms. (LGA 1700, AM5 ready) |
| Product Type | Cooling Fan/Radiator/Pump |
| Product Name | CHIONE M4-240 Cooling Fan/Radiator/Pump |
| Manufacturer | GAMDIAS |
| Manufacturer Part Number | GD-CHIONE M4-240 |
| Product Model | CHIONE M4-240 |
| Packaged Quantity | 1 |
| Heatsink Information | |
| Cooler Type | Liquid Cooler |
| Compatible Intel Socket |
|
| Compatible AMD Socket |
|
