Gigabyte Ultra Durable A520M S2H Desktop Motherboard - AMD Chipset - Socket AM4 - Micro ATX (246936)

This item is brand-new, factory sealed.

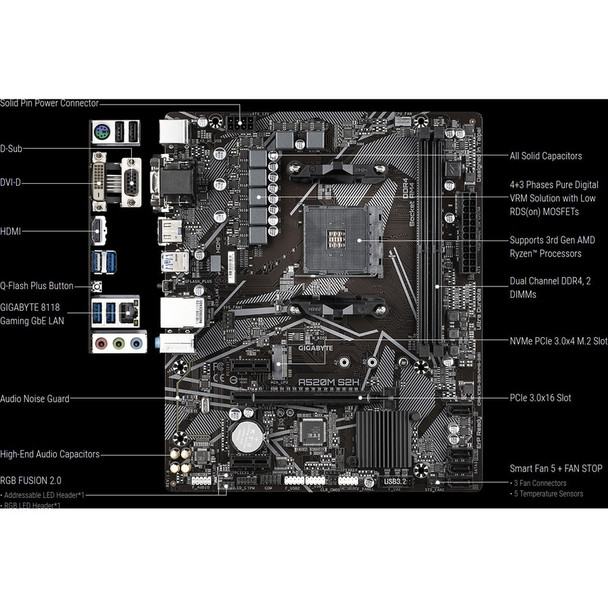

Supports 3rd Gen AMD Ryzen Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs

4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

HDMI, DVI-D, D-sub Ports for Multiple Display

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Anti-Sulfur Resistors Design


4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems potential.
CPU
1.AMD Socket AM4, support for: 3rd Generation AMD Ryzen^TM processors/ 3rd Generation AMD Ryzen^TM with Radeon^TM Graphics processors
Chipset
1.AMD A520
Memory
1.2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2.3rd Gen AMD Ryzen^TM Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3.3rd Gen AMD Ryzen^TM with Radeon^TM Graphics processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4.Dual channel memory architecture
5.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7.Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen^TM with Radeon^TM Graphics processors:
1.1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
2.1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
The DVI-D port does not support D-Sub connection by adapter.
3.1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio
1.Realtek ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTEs website for details on configuring the audio software.
LAN
1.Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
CPU:
1.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1.2 x PCI Express x1 slots, supporting PCIe 3.0
Storage Interface
CPU:
1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
1.4 x SATA 6Gb/s connectors
2.Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1.4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1.2 x USB 3.2 Gen 1 ports available through the internal USB header
2.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.1 x CPU fan header
4.2 x system fan headers
5.1 x addressable LED strip header
6.1 x RGB LED strip header
7.1 x M.2 Socket 3 connector
8.4 x SATA 6Gb/s connectors
9.1 x front panel header
10.1 x front panel audio header
11.1 x USB 3.2 Gen 1 header
12.2 x USB 2.0/1.1 headers
13.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
14.1 x serial port header
15.1 x speaker header
16.1 x chassis intrusion header
17.1 x Clear CMOS jumper
Back Panel Connectors
1.1 x PS/2 keyboard/mouse port
2.1 x D-Sub port
3.1 x DVI-D port
4.1 x HDMI port
5.4 x USB 3.2 Gen 1 ports
6.2 x USB 2.0/1.1 ports
7.1 x RJ-45 port
8.1 x Q-Flash Plus button
9.3 x audio jacks
I/O Controller
1.iTE I/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Overheating warning
5.Fan fail warning
6.Fan speed control
Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1.1 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
at BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.Support for Q-Flash Plus
3.Support for Q-Flash
4.Support for Xpress Install
Bundled Software
1.Norton Internet Security (OEM version)
2.Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System
1.Support for Windows 10 64-bit
Form Factor
1.Micro ATX Form Factor, 24.4cm x 20.5cm
Item Dimension (L"x W"x H")
11 x 10 x 3
Weight
3.00 LB
Warranty Information
3 Years
