Gigabyte Technology

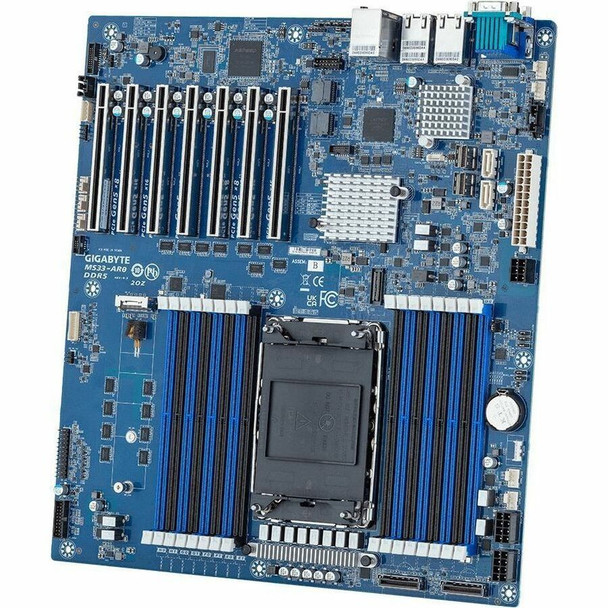

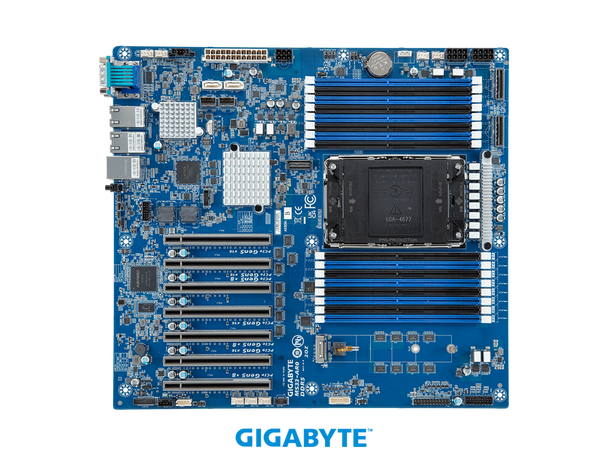

Gigabyte MS33-AR0 Server Motherboard - Intel C741 Chipset - Socket LGA-4677 - Extended ATX (269299)
(No reviews yet)
Write a Review
- SKU:
- 20034436
- MPN:
- 269299
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/05/2026 04:40:44 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $954.57 each 954.57 |
- Stock Update:
- 04/05/2026 04:40:44 AM PST
Description
This item is brand-new, factory sealed.
Motherboard - 5th/4th Gen Intel Xeon Scalable - E-ATX UP Intel Ethernet ControllerSingle 5th/4th Gen Intel Xeon Scalable Processors
Single Intel Xeon CPU Max Series
8-Channel RDIMM DDR5, 16 x DIMMs
Intel C741 Chipset
2 x 10Gb/s BASE-T LAN ports via Intel X710-AT2
2 x MCIO 8i (PCIe Gen5 x8) connectors
2 x SlimSAS connectors for 8 x SATA 6Gb/s
2 x SATA 6Gb/s ports
1 x M.2 slot with PCIe Gen3 x4 interface
7 x PCIe Gen5 x16 and x8 expansion slots Form Factor
E-ATX CPU
5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Single processor, TDP up to 350W Socket
1 x LGA 4677
Socket E Chipset
Intel C741 Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel Xeon: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel Xeon: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel Xeon Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Note: 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information. LAN
2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp Audio
N/A Storage Interface
CPU:
- 2 x MCIO 8i connectors for 4 x Gen5 NVMe
PCH:
- 2 x SlimSAS connectors for 8 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports RAID
Intel SATA RAID 0/1/10/5 Expansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot
Slot_6: PCIe x16 (Gen5 x16 or x8) slot, shared with Slot_5
Slot_5: PCIe x16 (Gen5 x8) slot
Slot_4: PCIe x16 (Gen5 x16 or x8) slot, shared with Slot_3
Slot_3: PCIe x16 (Gen5 x8) slot
Slot_2: PCIe x16 (Gen5 x16 or x8) slot, shared with Slot_1
Slot_1: PCIe x16 (Gen5 x8) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards
2 x MCIO 8i (PCIe Gen5 x8) connectors Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x CPU fan headers
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x M.2 slot
2 x MCIO 8i connectors
2 x SlimSAS connectors
2 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 OS Supported
Please refer to OS compatibility table in support page Additional certifications:
Windows Server 2022 (x64) Board Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector Operating Properties
Operating temperature: 10oC to 40oC
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40oC to 60oC
Non-operating humidity: 20%-95% (non-condensing)Item Dimension (L inchxW inchxH inch)
15 x 13 x 4
Weight
6.00 lb
Warranty Information
1 year
Features
Package Contents:
Yes
- MS33-AR0 Server Motherboard
- 1 x MS33-AR0
- 1 x I/O shield
- 1 x Quick start guide
- 3 x Carrier clips
- 1 x SlimSAS to 4 x SATAIII 6Gb/s cable
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 2 |
| Number of M.2 Interfaces | 1 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 13" |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| PCI Express Standard | PCI Express 5.0 |
| Number of PCI Express x16 Slots | 7 |
| Total Number of PCI Express Slots | 7 |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 16 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | On-board Video Chipset |
| General Information | |
| Brand Name | GIGABYTE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | Accelerating Artificial Intelligence and Leading Efficiency Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th Gen Intel Xeon Scalable processor. Adding a host of new features to target a wide range of workloads, the new family of Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory. Redefine Performance with 4th Gen Intel Xeon Scalable Processors Accelerators built-in Increase ROI while improving efficiency and performance Up to60 performance cores More tasks can be done simultaneously and faster with dedicated cores PCIe 5.0 lanes Increased IO throughput achieving 128GB/s bandwidth in PCIe x16 lanes HBM memory Xeon Max CPUs for HPC and memory bound workloads DDR5 memory Increased memory throughput and higher DDR5 capacity per DIMM CXL 1.1 support Disaggregated compute architecture possible via Compute Express Link Select GIGABYTE for the 4th Gen Intel Xeon Scalable Platform High CPU Performance The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance. Energy Efficiency Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings. Optimal Price GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused. Ease of Administration GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management. Continuous Operation Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance. Hardware Security Optional TPM 2.0 Module For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus. Value-added Management GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server. |
| Product Type | Server Motherboard |
| Product Name | MS33-AR0 Server Motherboard |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | MS33-AR0 |
| Product Model | MS33-AR0 |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported | 4th Gen |
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Chipset Model | C741 |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
