Gigabyte Technology 269300 Gigabyte Mb Ms73-hb0 Emmitsburg Lga4677 Max128gb Ddr5 Eatx Brown Box

This item is brand-new, factory sealed.

Motherboard - 5th/4th Gen Intel Xeon Scalable - E-ATX DP 10Gb/s Intel Ethernet Controller


Dual 5th/4th Gen Intel Xeon Scalable Processors

8-Channel RDIMM DDR5, 16 x DIMMs

Intel C741 Chipset

2 x 10Gb/s BASE-T LAN ports via Intel X710-AT2

2 x 1Gb/s LAN ports via Intel I210-AT

3 x SlimSAS connectors for 12 x SATA 6Gb/s

2 x SATA 6Gb/s ports

2 x M.2 slots with PCIe Gen4 x4 interface

6 x PCIe Gen5 x16 expansion slots


Accelerating Artificial Intelligence and Leading Efficiency

Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory. Form Factor
E-ATX
304.8W x 330.2D mm CPU
5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Dual processor, TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable. Socket
2 x LGA 4677
Socket E Chipset
Intel C741 Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel Xeon: Up to 5600 MT/s
4th Gen Intel Xeon: Up to 4800 MT/s LAN
2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
2 x 1Gb/s LAN ports (Intel I210-AT)
Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp Audio
N/A Storage Interface
PCH:
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports RAID
Intel SATA RAID 0/1/10/5 Expansion Slots
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU_0
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU_1
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU_1
Slot_3: PCIe x16 (Gen5 x16) slot, from CPU_0
Slot_2: PCIe x16 (Gen5 x16) slot, from CPU_0
Slot_1: PCIe x16 (Gen5 x16) slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 header
2 x M.2 slots
3 x SlimSAS connectors
2 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header

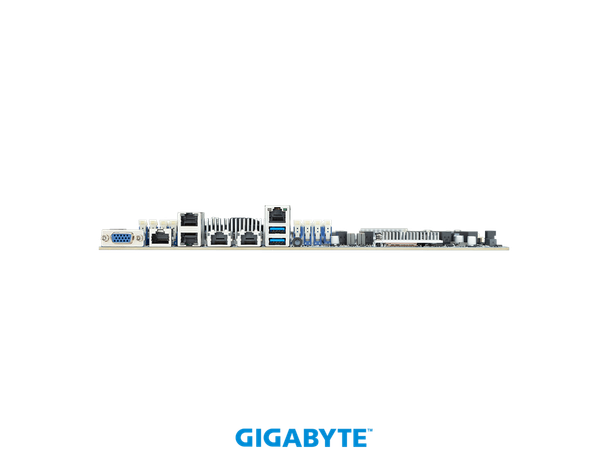

1 x TPM header Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x RJ45 serial port
4 x RJ45
1 x MLAN
1 x ID button with LED TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 OS Supported
Please refer to OS compatibility table in support page Additional certifications:
Windows Server 2022 (x64) Board Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors Operating Properties
Operating temperature: 10^oC to 40^oC
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40^oC to 60^oC
Non-operating humidity: 20%-95% (non-condensing)Item Dimension (L inchxW inchxH inch)
15 x 13 x 4

Weight
6.00 lb

Warranty Information
1 year
