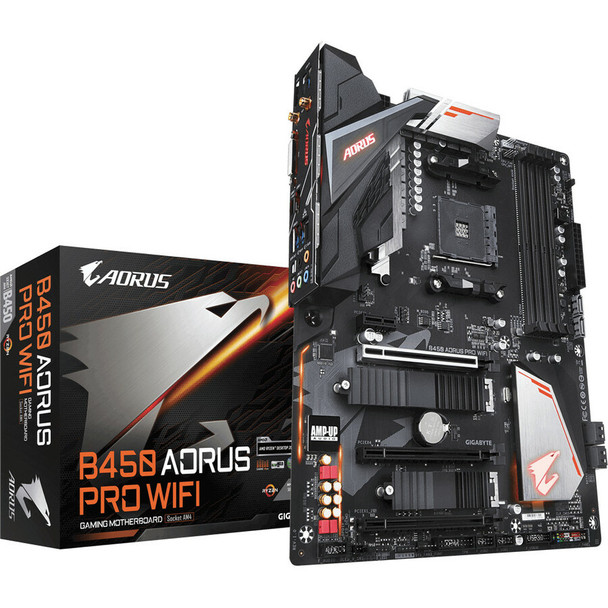

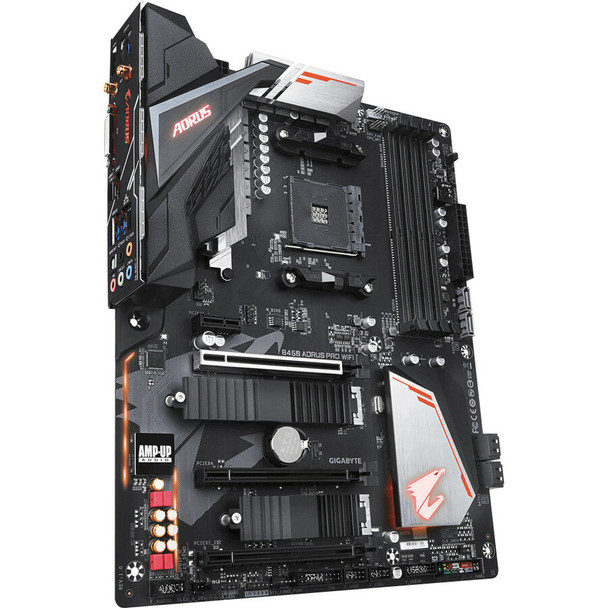

Aorus Ultra Durable B450 AORUS PRO WIFI Desktop Motherboard - AMD B450 Chipset - Socket AM4 - ATX

This item is brand-new, factory sealed.

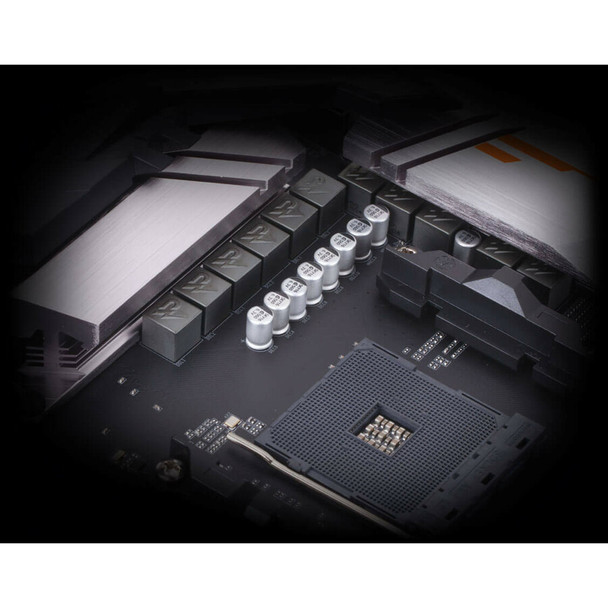

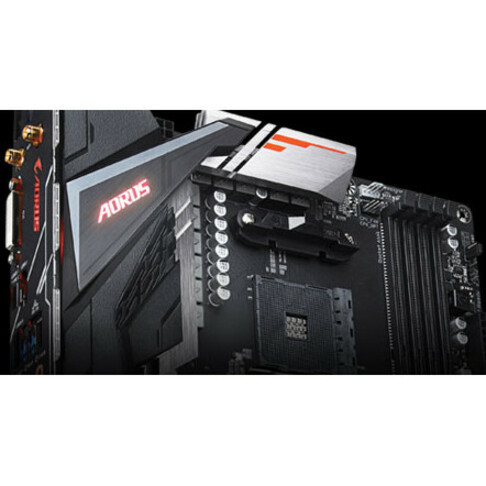

AMD B450 AORUS Motherboard with Hybrid Digital PWM, Intel Dual Band 802.11ac WIFI, Dual M.2 with Dual Thermal Guards, Audio ALC1220-VB, Intel GbE LAN with cFosSpeed, CEC 2019 ready
Supports AMD 2nd Generation Ryzen/ Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel Dual Band 802.11ac WIFI and BT 4.2
HDMI, DVI-D Ports for Multiple Display
Integrated I/O Shield of Ultra Durable Design

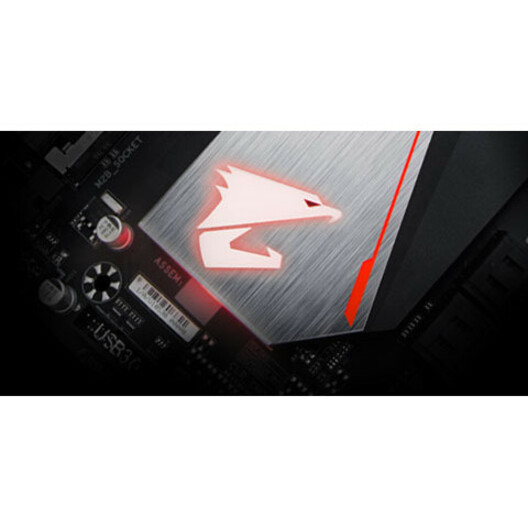

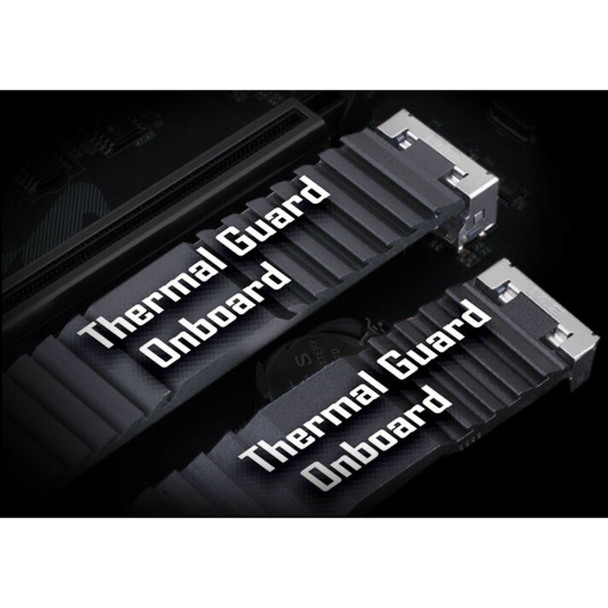

Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards

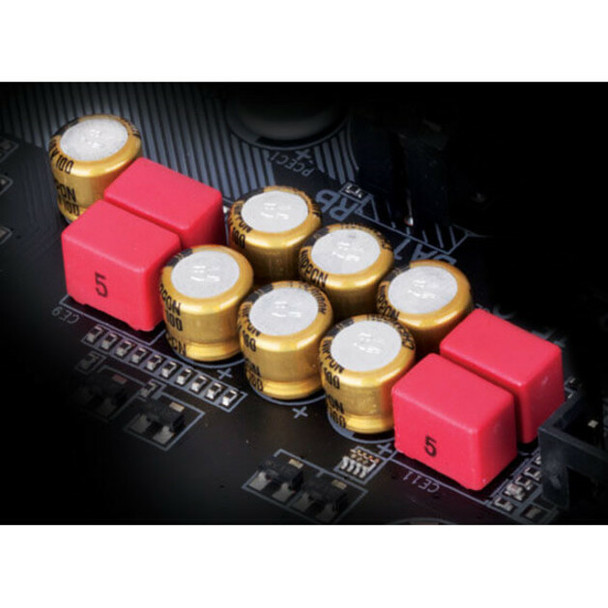

ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED and RGB LED Strips
Intel GbE LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune and Cloud Station Utilities
CEC 2019 Ready, Save Power with a Single Click
CPU
AM4 Socket: 1.AMD Ryzen 2nd Generation processors
2.AMD Ryzen with Radeon Vega Graphics processors
3.AMD Ryzen 1st Generation processors
(Please refer "CPU Support List" for more information.)Chipset
1.AMD B450Memory
1.4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.Dual channel memory architecture
3.Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)Onboard Graphics
Integrated Graphics Processor:
1.1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
The DVI-D port does not support D-Sub connection by adapter.
2.1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Support for HDMI 2.0 version and HDCP 2.2.
Actual support may vary by CPU.
3.Maximum shared memory of 16 GBAudio
1.Realtek ALC1220-VB codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF OutLAN
1.Intel GbE LAN chip (10/100/1000 Mbit)Wireless Communication module
1.Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2.BLUETOOTH 4.2
3.Support for 11ac wireless standard and up to 433 Mbps data rate
Actual data rate may vary depending on environment and equipment.Expansion Slots
1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
Actual support may vary by CPU.
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2.1 x PCI Express x16 slot, running at x4 (PCIEX4)
The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.
3.1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
4.1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
5.1 x M.2 Socket 1 connector for a wireless communication module (M2_WIFI)
B450 AORUS PRO WIFI includes the wireless communication module.Storage Interface

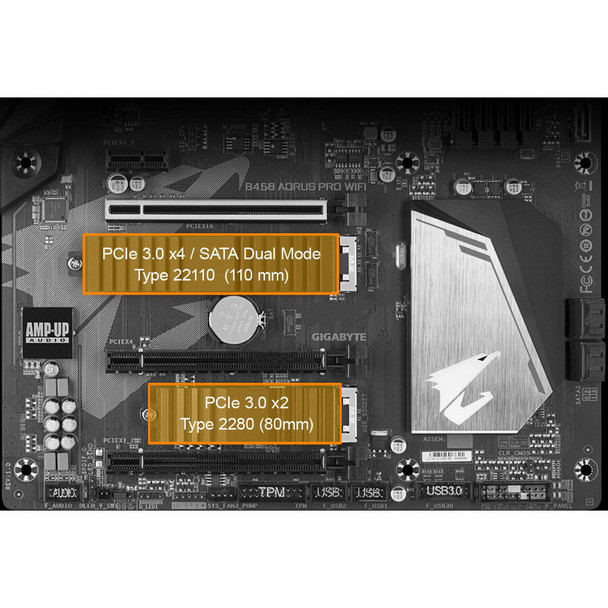

1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
2.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
3.6 x SATA 6Gb/s connectors
4.Support for RAID 0, RAID 1, and RAID 10
Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Multi-Graphics Technology
1.Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesUSB
Chipset:
1.1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
2.1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
3.2 x USB 3.1 Gen 1 ports available through the internal USB header
4.4 x USB 2.0/1.1 ports available through the internal USB headers
CPU:
1.4 x USB 3.1 Gen 1 ports on the back panelInternal I/O Connectors

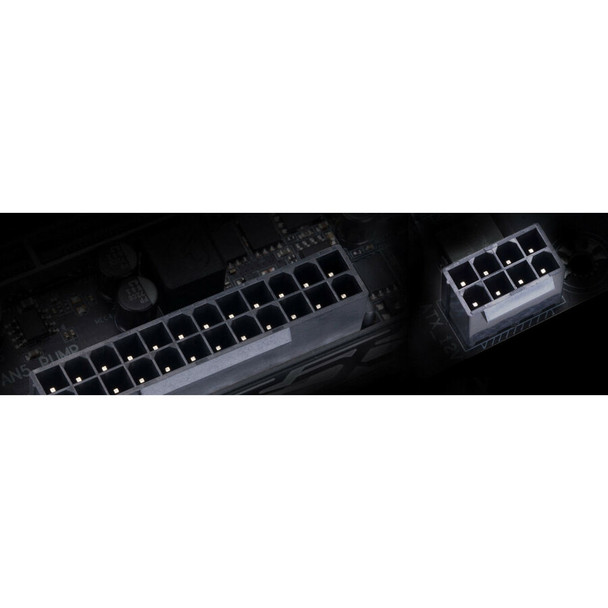

1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.2 x M.2 Socket 3 connectors
4.6 x SATA 6Gb/s connectors
5.1 x CPU fan header
6.1 x water cooling CPU fan header
7.2 x system fan headers
8.1 x system fan/water cooling pump header
9.1 x CPU cooler LED strip/RGB LED strip header
10.2 x digital LED strip headers
11.2 x digital LED strip power select jumpers
12.1 x RGB (RGBW) LED strip header

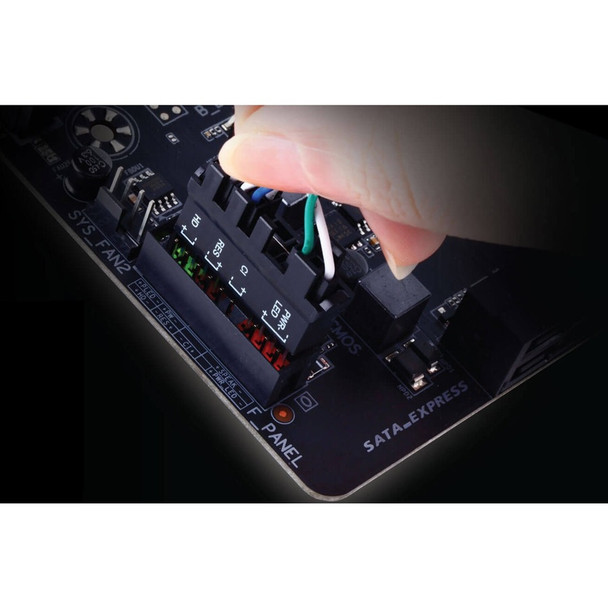

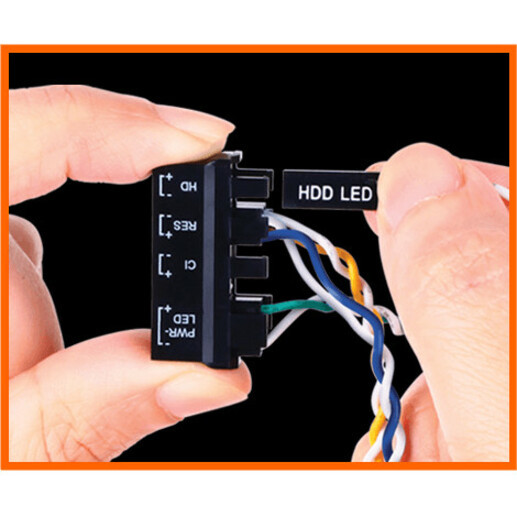

13.1 x front panel header
14.1 x front panel audio header
15.1 x S/PDIF Out header
16.1 x USB 3.1 Gen 1 header
17.2 x USB 2.0/1.1 headers
18.1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)

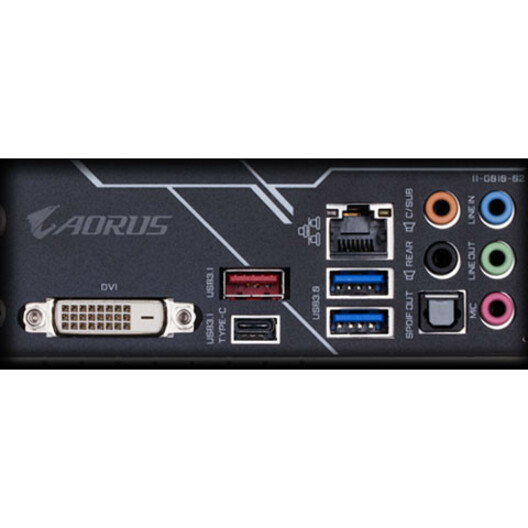

19.1 x Clear CMOS jumperBack Panel Connectors
1.1 x HDMI port
2.2 x SMA antenna connectors (1T1R)
3.1 x DVI-D port
4.4 x USB 3.1 Gen 1 ports
5.1 x USB Type-C port, with USB 3.1 Gen 2 support
6.1 x USB 3.1 Gen 2 Type-A port (red)
7.1 x RJ-45 port
8.1 x optical S/PDIF Out connector
9.5 x audio jacksI/O Controller
1.iTE I/O Controller ChipH/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Water cooling flow rate detection
5.Overheating warning
6.Fan fail warning
7.Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS
1.2 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
At BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
2.Support for Q-Flash
3.Support for Xpress InstallBundle Software
1.Norton Internet Security (OEM version)
2.cFosSpeedOperating System
1.Support for Windows 10 64-bit
2.Support for Windows 7 64-bit
To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge and Summit Ridge CPU.
Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.Form Factor
1.ATX Form Factor 30.5cm x 24.4cm
