GIGABYTE Ultra Durable B760M DS3H WF6E GEN5 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX (b760mds3hwifi6egen5)

This item is brand-new, factory sealed.

Express to PCIE5 Performance

The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

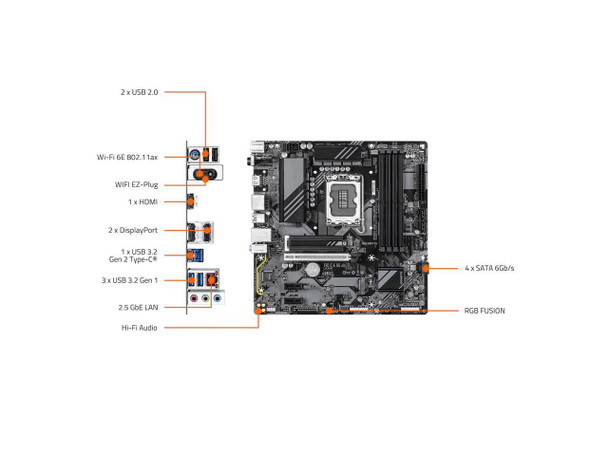

Key Features

PCIe Gen5 Performance : Perfect Sync to Win

Supports Intel Core 14th/ 13th /12th processors

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.

EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design

PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution

Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support

Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax

Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors

Extended Connectivity : Rear USB-C 10Gb/s, DP, HDMI

Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics CardCPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core^TM, Pentium Gold and Celeron Processors
(Go to GIGABYTEs website for the latest CPU support list.)
L3 cache varies with CPUChipset
Intel B760 Express ChipsetMemory
14th and 13th Generation Intel Core^TM i9/i7 Processors:
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core^TM i5/i3 and 12th Generation Intel Core^TM, Pentium Gold and Celeron Processors:
Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTEs website for more information.)Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Note1: Support for HDMI 2.1 version and HDCP 2.3.
Note2: Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz
Note: Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz
Note: Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same timeAudio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Note: You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF OutLAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module
Intel Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
Note: The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSB
Chipset:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper

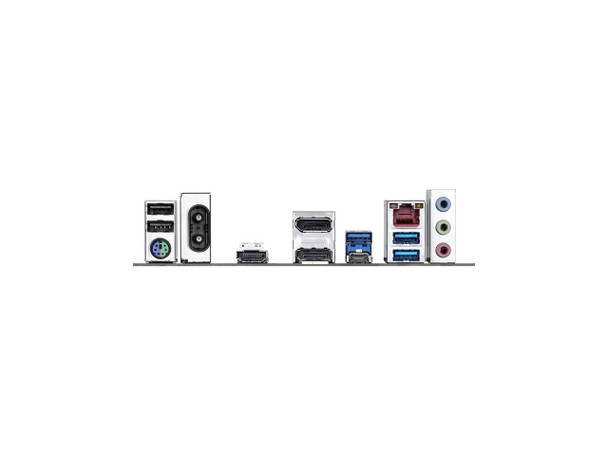

1 x Clear CMOS jumperBack Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.I/O Controller
iTE I/O Controller ChipH/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Note: Whether the fan speed control function is supported will depend on the fan you install.BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features
Support for GIGABYTE Control Center (GCC)
Note: Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart BackupBundled Software
Norton Internet Security (OEM version)Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bitForm Factor
Micro ATX Form Factor, 24.4cm x 24.4cmItem Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00lb

Warranty Information
3 years
