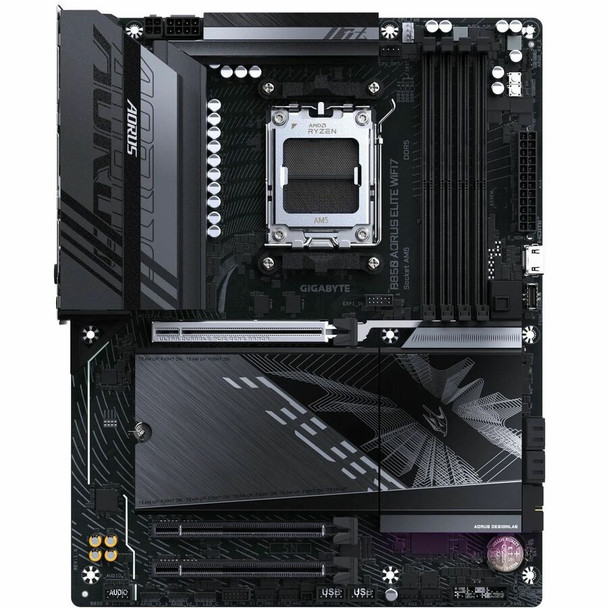

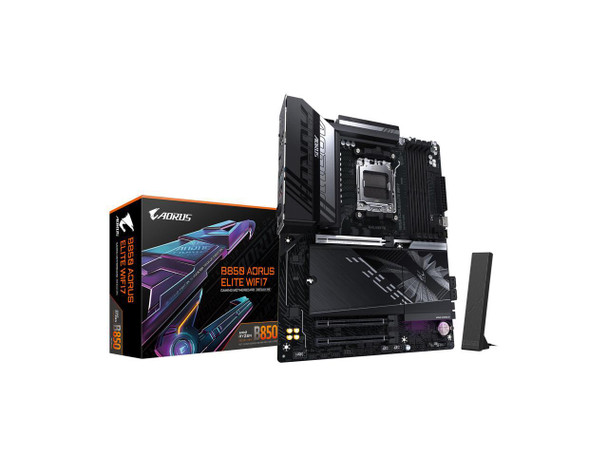

Aorus Ultra Durable B850 A ELITE WF7 Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX (b850aelitewf7)

This item is brand-new, factory sealed.

Key Features

X3D Turbo Mode : Unleash new era gaming performance

DDR5 OC up to 8200MT/s

AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Digital twin 14+2+2 phases VRM solution

Dual Channel DDR5 : 4*DIMMs with AMD EXPOMemory Module Support

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click : M.2 heatsinks with screwless design

Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup

Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4

Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity : HDMI,Displayport

PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect CPU
AMD Socket AM5, support for:
AMD Ryzen^TM 9000 Series Processors/
AMD Ryzen^TM 8000 Series Processors/
AMD Ryzen^TM 7000 Series Processors
(Go to GIGABYTEs website for the latest CPU support list.) Chipset
AMD B850 Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO^TM) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTEs website for more information.) Onboard Graphics
Integrated Graphics Processor with AMD Radeon^TM Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 at 144 Hz
Note: Support for DisplayPort 1.4 version and HDR.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080 at 30 Hz
Note: Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.) Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Note: You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module
Realtek Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
Note1: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
Note2: Wi-Fi 7 channels on 6 GHz band availability depends on individual countrys regulations Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen^TM 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen^TM 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen^TM 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Note: The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen^TM 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen^TM 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen^TM 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen^TM 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen^TM 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen^TM 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Note: RAID 5 is only available on AMD Ryzen^TM 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices USB
CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port^Note
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

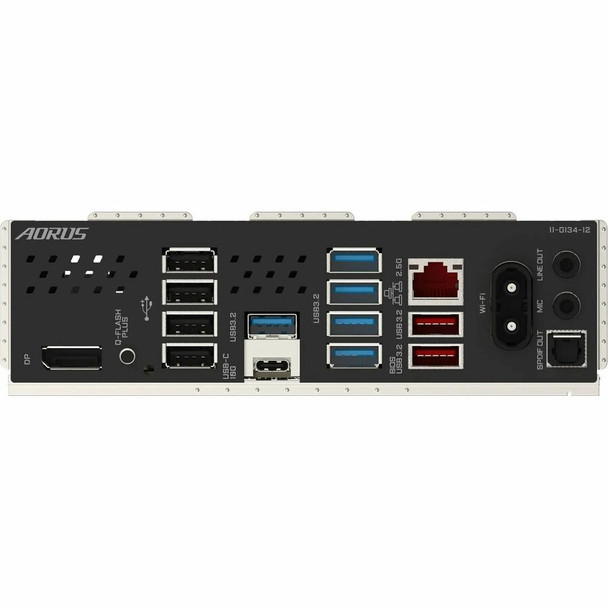

Note: Actual support may vary by CPU. Back Panel Connectors
1 x DisplayPort^Note
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Note: Actual support may vary by CPU. I/O Controller
iTE I/O Controller Chip H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Note: Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
Support for GIGABYTE Control Center (GCC)
Note: Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software Operating System
Support for Windows 11 64-bit Form Factor
ATX Form Factor, 30.5cm x 24.4cmItem Dimension (L inchxW inchxH inch)
14 x 11 x 4

Weight
6.05 lb

Warranty Information
5 Years
