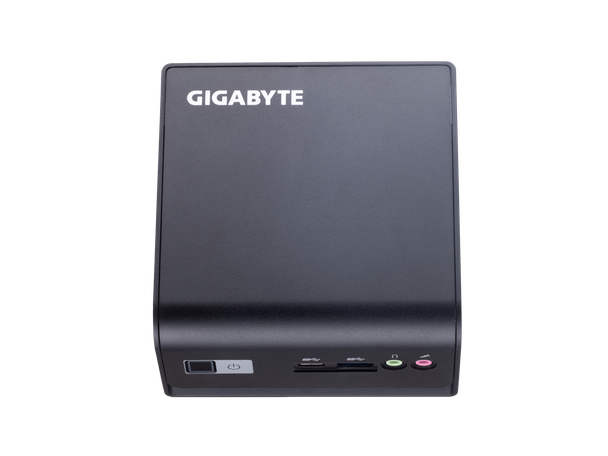

Gigabyte Technology GBBMCE4500C Barebone Mini PC Kit

This item is brand-new, factory sealed.

Fanless desigh with Intel Celeron Processor N4500 6W CPU

Ultra compact PC design at only 0.67L (56.22x103x116.52mm)

1st 10 nm small core CPU

Support M.2 2280 slot for SSD (support PCI-e x2+SATA)

Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB

802.11ac, Dual Band Wi-Fi & Bluetooth 4.2

Realtek 8111HS Gigabit LAN

HDMI 2.0b support 4K@60P HDR10

MiniDP 1.4 support 4K@60P HBR2

Realtek ALC255 Codec

4 x USB 3.1 (1 x USB Type-C^TM)

Headphone Jack

Mic-phone Jack

VESA Mounting Bracket (75 x 75mm + 100 x 100mm)

AC-DC adapter : 100-240V input, 19V 65W

OS Support : Microsoft Windows 10 64Bit

1x Kensington Lock slot

System Environment Operating Temperature: 0C to +35C

System Storage Temperature: -20C to +60C


* Barebone products do not include the operating system.

* Product may vary based on local distribution.

* Wireless module inclusion may vary based on local distribution. Motherboard Size
105 x 110 mm CPU
Intel Celeron Processor N4500
2.8GHz, 2 core (TDP 6W) Memory
1 x SO-DIMM DDR4 slots
2933MHz
Max. 16GB LAN
Gigabit LAN (Realtek 8111HS) Wifi Card
Dual Band Wireless-802.11 AC Graphics
Intel UHD Graphics 605 Audio
Realtek ALC255 HDMI Resolution (Max.)
HDMI2.0b
Support 4K at 60P HDR10 Mini DP Resolution (Max.)
DP1.4
support 4K at 60P HBR2 Storage
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) Expansion Slots
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card Front I/O
1 x USB3.0
1 x USB3.0 type C
1 x Headphone jack
1 x Microphone jack Rear I/O
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot Power Supply
Input: AC 100-240V
Output: DC 19V/3.42A, 65W VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm Support OS
Win10 64bit Environment
System Environment Operating Temperature: 0^oC to +35^oC
System Storage Temperature: -20^oC to +60^oCItem Dimension (L inchxW inchxH inch)
12 x 7 x 4

Weight
3.00 lb

Warranty Information
NA
