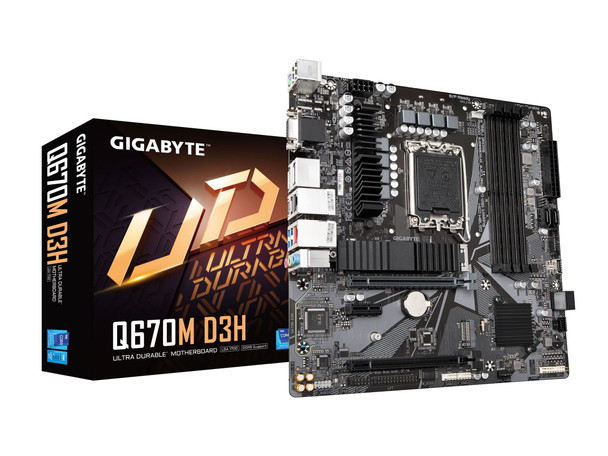

Gigabyte Ultra Durable Q670M D3H Gaming Desktop Motherboard - Intel Q670 Chipset - Socket LGA-1700 - Micro ATX (q670md3h)
(No reviews yet)
Write a Review
- SKU:
- 20430347
- MPN:
- q670md3h
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/06/2026 05:11:01 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 4 | and pay only $198.49 each 198.49 |
| Buy 5 or above | and pay only $195.37 each 195.37 |
- Stock Update:
- 02/06/2026 05:11:01 PM PST
Description
This item is brand-new, factory sealed.

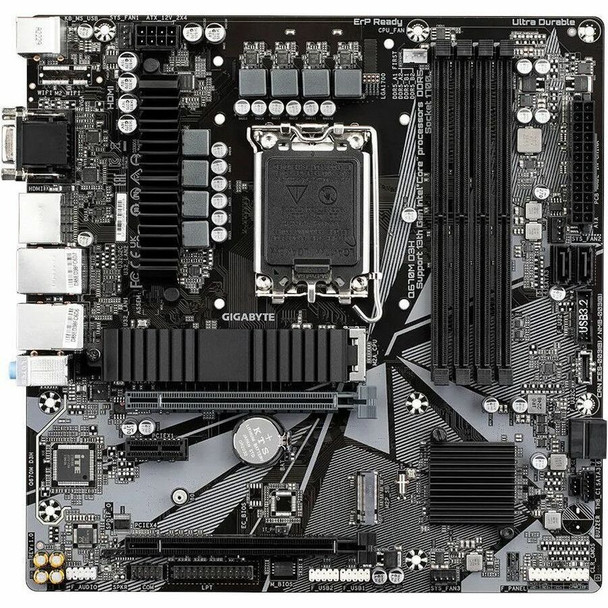

Intel Q670 Motherboard with 6+1+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, Dual Intel GbE LAN, Rear USB 3.2 Gen 2 Type-CSupports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
6+1+1 Phases Hybrid Digital VRM with MOS Heatsink
Dual GbE LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with One Thermal Guard
Rear USB 3.2 Gen 2 Type-C for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Support Intel vPro Technology CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel CoreTM, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Note: Please refer to "CPU Support List" for more information. Chipset
Intel Q670 Express Chipset Memory
Support for 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Note: Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz
Note: Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz
Note: Support for DisplayPort 1.2 version
(Graphics specifications may vary depending on CPU support.)
Support for up to 4 displays at the same time Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Note: You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Intel GbE LAN chip (1 Gbps/100 Mbps) (LAN2) TPM
Infineon chip, supporting TPM 2.0 Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 5 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x ThunderboltTM add-in card connectors
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper Back Panel Connectors

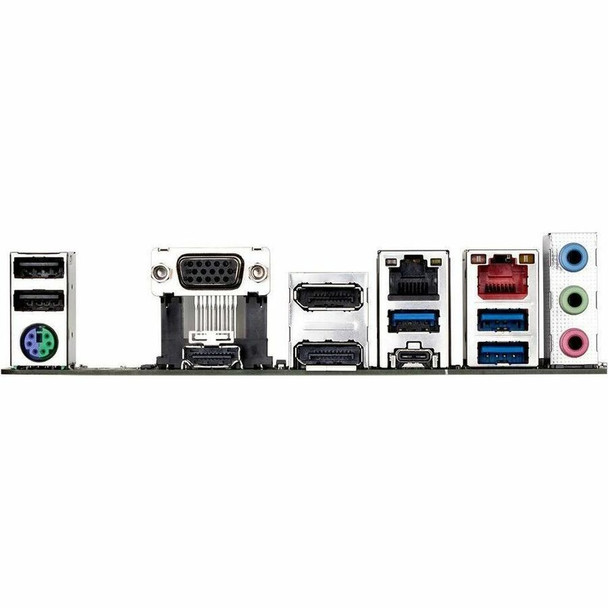

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
1 x USB Type-C port, with USB 3.2 Gen 2 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
3 x audio jacks I/O Controller
iTE I/O Controller Chip H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Note: Whether the fan speed control function is supported will depend on the fan you install. BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
Support for APP Center
Note: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit Form Factor
Micro ATX Form Factor, 24.4cm x 24.4cmItem Dimension (L inchxW inchxH inch)
11 x 11 x 3
Weight
3.00 lb
Warranty Information
3 years
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Interfaces/Ports | |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI Version | <li>2.0</li> |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| DisplayPort | Yes |
| HDMI | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Thunderbolt | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | HD Graphics |
| General Information | |
| Brand Name | GIGABYTE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | 6+1+1 Phases Hybrid Power Design Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. 6+1+1 Phases Low RDS(on) MOSFETs Solid capacitors to improve transient response and minimize oscillation 8-pin Solid Pin CPU Power Connector PCIe 4.0 Design GIGABYTE Q670 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. 2 PCIe 4.0 x4 M.2 Slots Dual PCIe 4.0 x4 M.2 Connectors with Thermal Guard Hybrid Cores Optimization With new Intel Hybrid technology, GIGABYTE exclusively creates two new " CPU Upgrade " in BIOS profiles to meet different users' scenarios by adjusting P-Core and E-Core activation and voltage policy. GAMING Deactivate all E-Core Zero compromise on gaming performance Up to 20% lower CPU package power Up to 5°C lower CPU temperature MAX PERFORMANCE Activate all P-Core and E-Core Maximize full multi-cores performance XMP 5600+ Support for DDR5 XMP Up to 5600MHz and Beyond AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. Unlock DDR5 Voltage | DDR4 DDR4 voltage is managed by MB with wide range Native DDR5 Secure Mode MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC. GIGABYTE Exclusive DDR5 Circuit Design | Programmable Mode GIGABYTE's exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range. GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control Transforms Native DDR5 memory module to Overclocked DDR5 memory Increases DDR5 memory overclocking performance and capability Supports all PMIC vendors for maximum compatibility M.2 Thermal Guard GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Thermal Throttling As Temperature Rises |
| Product Type | Gaming Desktop Motherboard |
| Product Name | Ultra Durable Q670M D3H Gaming Desktop Motherboard |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | Q670M D3H |
| Product Model | Q670M D3H |
| Product Line | Ultra Durable |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported |
|
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Model | Q670 |
| Network & Communication | |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
