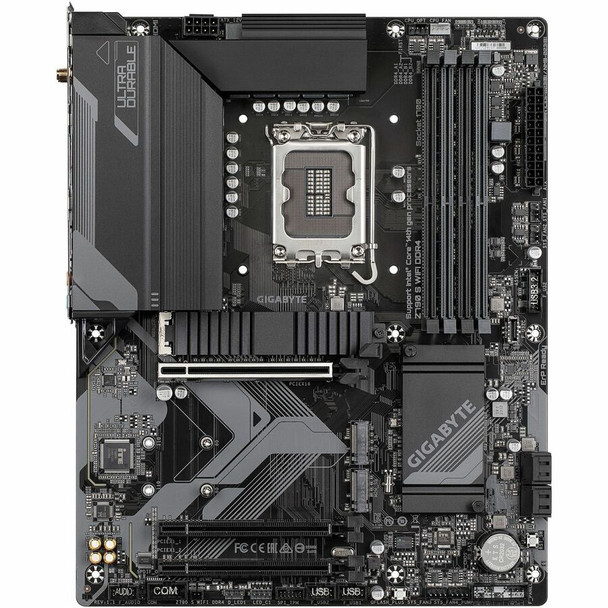

Gigabyte Ultra Durable Z790 S WIFI DDR4 Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX (z790swifiddr4)

This item is brand-new, factory sealed.

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

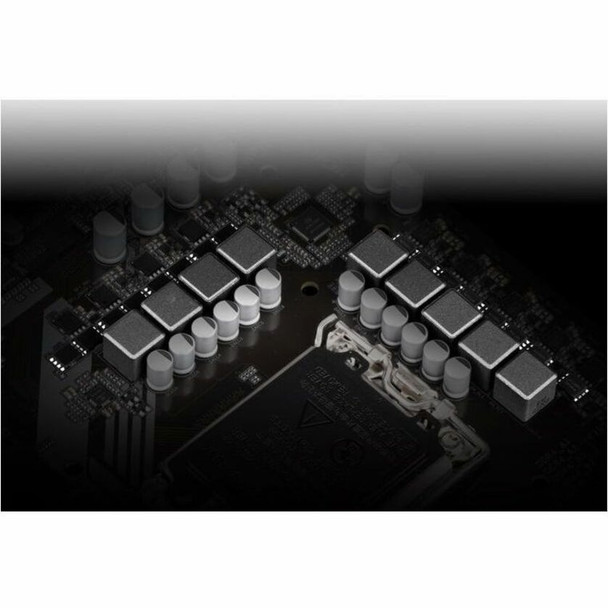

Digital VRM Design

The best VRM design ever built with the highest quality components.

DDR4 XMP | Support for DDR4 XMP Up to 5333MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Thermal

Fully Covered MOSFET Heatsink

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ac Wi-Fi

The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve -fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Hi-Fi Audio | High-End Audio Capacitors

These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard

Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

M.2 EZ-Latch Plus

Screwless installation for M.2 SSDs.

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

• High Current Support:Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
• Precision Control:Multiple temperature/fan speed control points for precise fan curve.
• Dual Curve Mode:Slope/Stair dual mode for different user scenario.
• Fan Stop:Fan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI

• Enhance Fan Curve UI :Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
• Slope/Stair Dual Graph Mode :Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
• Manual Input :For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
• EZ Tuning :Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based o

  Features

  Environmental Compliance:

  China Restriction of Hazardous Substances (China RoHS)
  Restriction of Hazardous Substances (RoHS)
  Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  Waste Electrical and Electronic Equipment Directive (WEEE)




  Specs

  Physical Characteristics
  Form Factor	ATX
  Width	12"
  Depth	9.6"
  I/O Expansions
  Total Number of Expansion Slots	3
  PCI Express Standard	PCI Express 4.0 PCI Express 3.0
  Number of PCI Express x16 Slots	3
  Total Number of PCI Express Slots	3
  Memory
  Memory Technology	DDR4 SDRAM
  Number of Memory Slots	4
  Memory Speed Supported	5333 MHz 5133 MHz 5000 MHz 4933 MHz 4800 MHz 4700 MHz 4600 MHz 4500 MHz 4400 MHz 4300 MHz 4266 MHz 4133 MHz 4000 MHz 3866 MHz 3800 MHz 3733 MHz 3666 MHz 3600 MHz 3466 MHz 3400 MHz 3333 MHz 3200 MHz 3000 MHz 2933 MHz 2666 MHz 2400 MHz 2133 MHz
  Memory Form Factor	DIMM UDIMM
  Maximum Memory Supported	128 GB
  General Information
  Brand Name	GIGABYTE
  Package Type	Retail
  Manufacturer Website Address	http://www.gigabyte.us
  Marketing Information	Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. Digital VRM Design The best VRM design ever built with the highest quality components. DDR4 XMP | Support for DDR4 XMP Up to 5333MHz and Beyond GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard. Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. Thermal Fully Covered MOSFET Heatsink Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. 802.11ac Wi-Fi The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above. 2.5GbE LAN Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition. PCIe 4.0 Hardware Design Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance. Hi-Fi Audio | High-End Audio Capacitors These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects. Audio Noise Guard Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. M.2 EZ-Latch Plus Screwless installation for M.2 SSDs. Smart Fan 6 ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring. High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection. Precision Control: Multiple temperature/fan speed control points for precise fan curve. Dual Curve Mode: Slope/Stair dual mode for different user scenario. Fan Stop: Fan can stop completely below users' specified temperature point. Smart Fan 6 BIOS UI Enhance Fan Curve UI : Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings. Slope/Stair Dual Graph Mode : Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals. Manual Input : For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system. EZ Tuning : Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based o
  Product Type	Gaming Desktop Motherboard
  Product Name	Ultra Durable Z790 S WIFI DDR4 Gaming Desktop Motherboard
  Manufacturer	GIGABYTE Technology, Inc
  Manufacturer Part Number	Z790 S WIFI DDR4
  Product Model	Z790 S WIFI DDR4
  Product Line	Ultra Durable
  Processor & Chipset
  Chipset Manufacturer	Intel
  Processor Generation Supported	14th Gen 13th Gen 12th Gen
  Processor Supported	Core Pentium Gold Celeron
  Total Processor Supported	1
  Processor Socket	Socket LGA-1700
  Chipset Model	Z790
  Onboard Interfaces
  Number of SATA Interfaces	4
  Total Number of Onboard USB Ports	7
  Number of M.2 Interfaces	3
  Onboard S/PDIF Header	Yes
  Number of Onboard USB 2.0 Ports	4
  Interfaces/Ports
  Number of USB 3.2 Gen 2 Type-A Ports	1
  S/PDIF	Yes
  HDMI Version	<li>2.1</li>
  DisplayPort	Yes
  HDMI	Yes
  Number of USB 2.0 Ports	5
  Total Number of USB Ports	8
  Number of USB 3.2 Gen 1 Ports	2
  Number of Network (RJ-45) Ports	1
  I/O Controller
  RAID Supported	Yes
  Controller Type	Serial ATA/600
  RAID Levels	0 1 5 10
  Video
  Onboard Video	CPU Dependent Video
  Graphics Controller Model	HD Graphics
  Network & Communication
  Wireless LAN	Yes
  Wireless LAN Standard	IEEE 802.11a/b/g/n/ac
  Bluetooth	Yes
  Bluetooth Standard	Bluetooth 5.1
  2.5Gigabit Ethernet	Yes
  Gigabit Ethernet	Yes
  Audio
  Audio Channels	7.1
