DBX

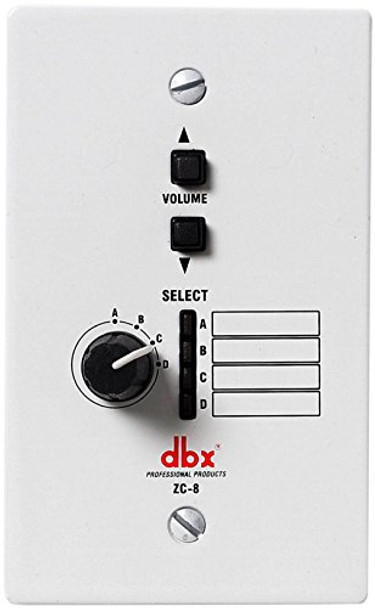

dbx ZC Series Audio Control Device (DBXZC8V)
- SKU:
- 19201204
- MPN:
- dbxzc8v
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 06:25:11 AM PST
- Stock Update:
- 12/08/2025 06:25:11 AM PST
Description
This item is brand-new, factory sealed.
The remote device shall provide both programmable push-button up/down volume control, and programmable rotary switch source selection for the dbx ZonePro devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-8 remote controller.
Features
Additional Information:
Yes
- Connectors: 2 x RJ-45
- Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
- Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
- Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
- Safety Agency Certifications: UL 60065, IEC 60065, EN 55013, E60065
Environmentally Friendly:
Yes
Compatibility:
dbx Zone Processor
- dbx ZonePro 641
- dbx ZonePro 640
Specs
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | dbx |
| Manufacturer Website Address | http://www.harman.com |
| Marketing Information | The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor. The ZC-8 provides both programmable source selection and volume control to ZonePRO devices. |
| Product Type | Audio Control Device |
| Product Name | ZC Series Audio Control Device |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | ZC8 |
| Product Series | ZC |
| Technical Information | |
| Number Of Devices Controlled | 6 |
| Connectivity Technology | Wired |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
dbx ZC Series Audio Control Device (DBXZC8V)
$120.00
