Harman Professional Inc DBXZCVFIRE ZonePRO Fire Safety Interface
- SKU:
- 20845314
- MPN:
- dbxzcv-fire
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/19/2026 07:09:02 PM PST
- Stock Update:
- 01/19/2026 07:09:02 PM PST
Description
This item is brand-new, factory sealed.
The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

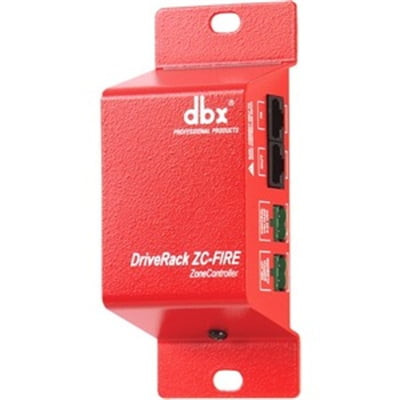

The ZC-FIRE is a dedicated fire safety interface for the ZonePRO products that allows selection of either system mute or scene selection upon being triggered by either a relay or control voltage from the fire safety system.
Features
Connectors
- (2) RJ-45
Series Wiring
- Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB
- Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable
- CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications
- UL 60065, IEC 60065, EN 55013, E60065
Specs
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | dbx |
| Manufacturer Website Address | http://www.harman.com |
| Marketing Information | The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor. The ZC-FIRE is a dedicated fire safety interface for the ZonePRO products that allows selection of either system mute or scene selection upon being triggered by either a relay or control voltage from the fire safety system. |
| Product Type | Audio Control Device |
| Product Name | ZC-FIRE ZonePRO Fire Safety Interface |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | DBXZCV-FIRE |
| Product Model | ZC-FIRE |
| Product Series | ZC |
| Technical Information | |
| Connectivity Technology | Wired |
