ICC

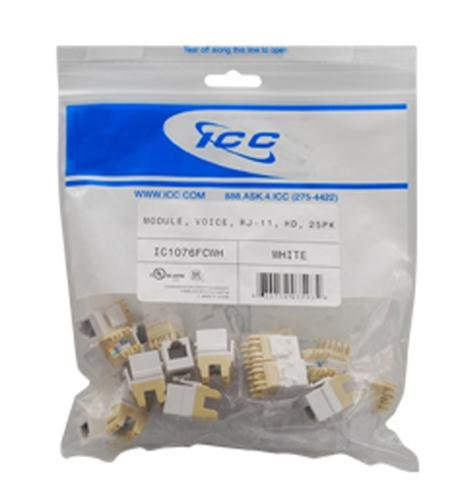

Icc Cat.3 Modular Connector - 25 Pack - 1 X Rj-11 - White (ic1076fcwh)

(No reviews yet) Write a Review
SKU:
18124946
MPN:
ic1076fcwh
Availability:
Usually ships the same or next business day. In stock at our TX warehouse.
Shipping:
Calculated at Checkout
Stock Update:
01/30/2026 09:18:52 PM PST
$51.94
Buy more, get it as low as $

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $46.04 each 46.04
Buy 3 and pay only $43.64 each 43.64
Buy 4 or above and pay only $41.29 each 41.29
Stock Update:
01/30/2026 09:18:52 PM PST

Description

This item is brand-new, factory sealed.

  • White High Density RJ-11 Voice Keystone Jack 25 Pack
  • Designed for all voice connectivity applications
  • 6P6C Cat 3 Voice
  • Lead frame technology provides maximum performance and superior signal quality
  • Terminate with any standard 110 punch down tool
  • Includes an integrated USOC/UTP color wiring diagram
  • Compatible with all faceplates, decorative inserts, surface mount boxes, and blank patch panels
  • Works with telephone line cords
  • Installation instructions included
  • UL listed
  • Category Rating:Cat3

  • Conductor:6C

  • Contractor Pack:Yes

  • High-Density:Yes

  • Jacks/Modules:Yes

  • Color:White

    • Features

    Compatibility:

    ICC IC107

    • Face Plates
    • Inserts
    • Surface Mount Boxes
    • Blank Patch Panels



    Specs

    Physical Characteristics
    Product ColorWhite
    Warranty
    Limited Warranty3 Year
    General Information
    Brand NameICC
    Manufacturer Website Addresshttp://www.icc.com
    Marketing InformationOverview
    The HD 25-pack RJ-11 6P6C CAT 3 cable compatible modular jacks saves you time and money. It is ideal for all voice and business system applications. The 25-pack has a resealable strip at the top to prevent any mixing of colors or types of keystone jacks or even misplacing any extra keystone jacks you may have. Compatible with RJ11/14 and 25 keystone jacks and plugs.
    Specifications
    1. RJ-11 Voice Module:
    A. Electrical:
    Current rating: 1.5 amps max.
    Voltage rating: 150 volts alternating
    Dielectric withstanding voltage: 1000 volts rms, 60Hz
    Insulation resistance: >10 mohms
    B. Mechanical:
    Mated force: 5 lbs max.
    Unmated force: 5 lbs max.
    Plug retention force: 20 lbs min.
    Durability: 750 cycles
    C. Physicals:
    Housing: ABS, UL 94V-0
    Contact: Phosphor bronze alloy plated with 50 micro inches of gold over 70~100 micro inches of nickel
    Gold plating: 1.27 micron/50 micro inch min.
    Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire
    D: Colors:
    XX: IV - Ivory & WH - White
    2. Termination cap:
    A. Material: PC, UL 94V-0
    B. Color: Clear
    PackingBagged
    Product TypeNetwork Connector
    Product NameCat.3 Modular Connector
    ManufacturerICC
    Manufacturer Part NumberIC1076FCWH
    Product ModelIC1076FCWH
    Packaged Quantity25
    Technical Information
    110 BlockYes
    Connector TypeRJ-11 Network
    Connector Details1 x RJ-11 Network
