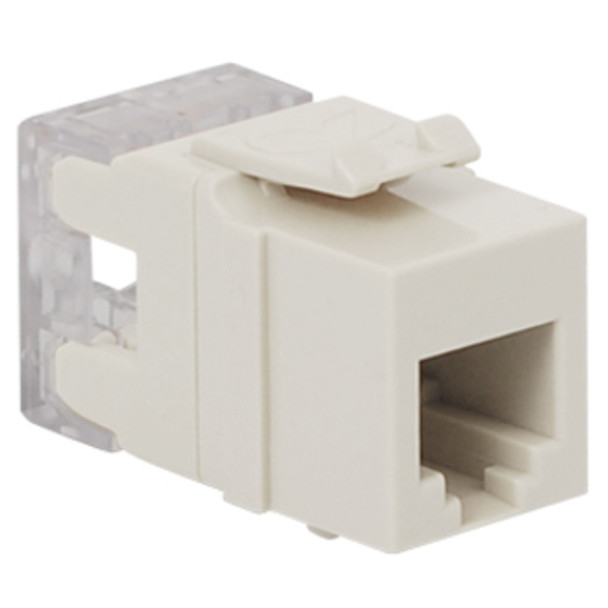

ICC Voice- RJ-11/14/25- HD- Modular Connector- White - 1 x RJ-11 (IC1076F0WH)
(No reviews yet)
Write a Review
- SKU:
- 18124944
- MPN:
- ic1076f0wh
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/07/2025 04:22:48 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $10.47 each 10.47 |
| Buy 3 | and pay only $7.81 each 7.81 |
| Buy 4 or above | and pay only $6.79 each 6.79 |
- Stock Update:
- 12/07/2025 04:22:48 AM PST
Description
This item is brand-new, factory sealed.
The voice High Density (HD) modular jacks, RJ-11 keystone jack, is 6-position 6-conductor (6P6C). It's HD design offers a smaller rear footprint, maximizing space in confined work areas, and allows the use of more modular jacks within the same space. The voice High density modular jacks is designed for business system applications. The IDC accepts 22-24 AWG solid wire and is suitable for use with Apple Talk, DSL, Voice, and Arcnet applications. Compatible with RJ11/14 and 25 modular jacks and plugs.
Features
Certifications & Standards:
Yes
UL
Additional Information:
Electrical:
- Current rating: 1.5 Amps max.
- Voltage rating: 150 volts alternating
- Dielectric withstanding voltage: 1000 volts RMS, 60Hz
- Insulation resistance: >10 Mohms
Mechanical:
- Mated force: 5 lbs max.
- Unmated force: 5 lbs max.
- Plug retention force: 20 lbs min.
- Durability: 750 cycles
Physicals:
- Contact: Phosphor bronze gold plating over 100 inches of nickel
- Gold plating: 1.27 micron/50 micro inch min.
Environmentally Friendly:
Yes
Specs
| Physical Characteristics | |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Product Color | White |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | ICC |
| Manufacturer Website Address | http://www.icc.com |
| Marketing Information | Overview: The voice High Density (HD) modular jacks, RJ-11 keystone jack, is 6-position 6-conductor (6P6C). It's HD design offers a smaller rear footprint, maximizing space in confined work areas, and allows the use of more modular jacks within the same space. The voice High density modular jacks is designed for business system applications. The IDC accepts 22-24 AWG solid wire and is suitable for use with Apple Talk, DSL, Voice, and Arcnet applications. Compatible with RJ11/14 and 25 modular jacks and plugs. Feature: ? Designed for all voice connectivity applications ? PCB technology provides maximum performance and superior signal quality ? Engineered to provide 110 IDC termination reducing installation time ? Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area ? Includes an integrated USOC/UTP color wiring diagram ? Compatible with all ICC faceplates, Decorex inserts, surface mount boxes, and blank patch panels ? Works with ICC telephone line cords ? Installation instructions included ? UL listed Specification: 1. RJ-11 Voice Module: A. Electrical: Current rating: 1.5 amps max. Voltage rating: 150 volts alternating Dielectric withstanding voltage: 1000 volts rms, 60Hz Insulation resistance: >10 mohms B. Mechanical: Mated force: 5 lbs max. Unmated force: 5 lbs max. Plug retention force: 20 lbs min. Durability: 750 cycles C. Physicals: Housing: ABS, UL 94V-0 Contact: Phosphor bronze alloy plated with 50 micro inches of gold over 70~100 micro inches of nickel Gold plating: 1.27 micron/50 micro inch min. Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire D: Colors: XX: AL-Almond, BK-Black, BL-Blue, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, & WH-White 2. Termination cap: A. Material: PC, UL 94V-0 B. Color: Clear |
| Product Type | Phone Connector |
| Product Name | Voice, RJ-11/14/25, HD, Modular Connector, White |
| Manufacturer | ICC |
| Manufacturer Part Number | IC1076F0WH |
| Product Model | IC1076F0WH |
| Technical Information | |
| Contact Plating |
|
| Connector Type | RJ-11 Phone - Female |
| Connector Details | 1 x RJ-11 Phone Female |
